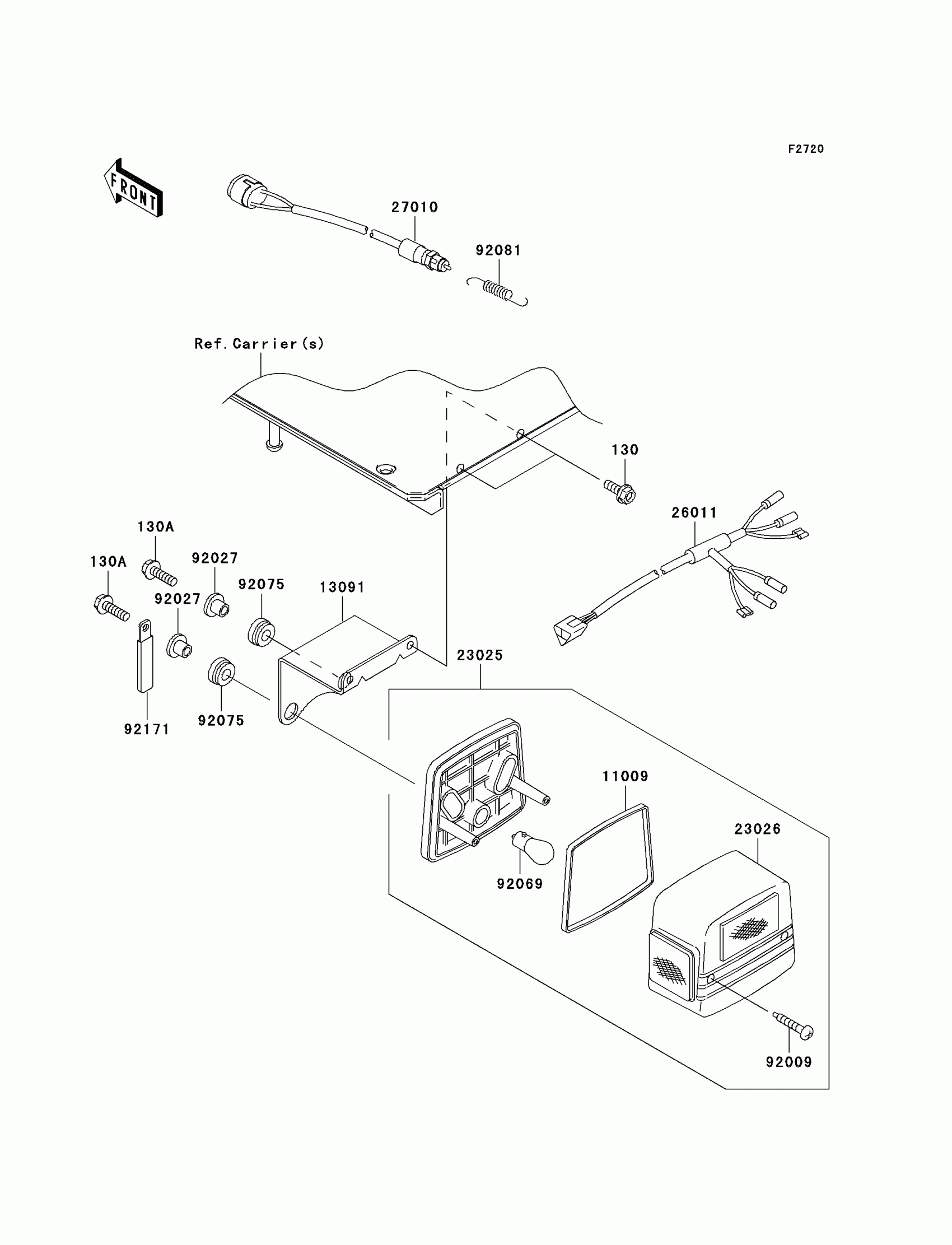

Kawasaki Mule 3010 4x4 Hardwoods Green HD Taillight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X16

130BB0616

$2.06

130A

BOLT-FLANGED,6X20

130BB0620

$0.46

11009

GASKET,TAIL LAMP

11009-1215

$8.79

13091

HOLDER,TAIL LAMP

13091-1743

$14.26

23025

LAMP-TAIL

23025-1042

$116.04

23026

LENS,TAIL LAMP

23026-1019

$52.02

26011

WIRE-LEAD

26011-1756

$68.27

27010

SWITCH,BRAKE LAMP

27010-1301

$46.78

92009

SCREW,TAPPING,4X25

92009-1069

$3.92

92027

COLLAR

92027-194

$5.52

92069

BULB,12V 21/5W

92069-1011

$7.56

92075

DAMPER

92075-277

$2.84

92081

SPRING,HOOK RETURN

92081-1466

$8.51

92171

CLAMP,L=60

92171-0652

$2.61
