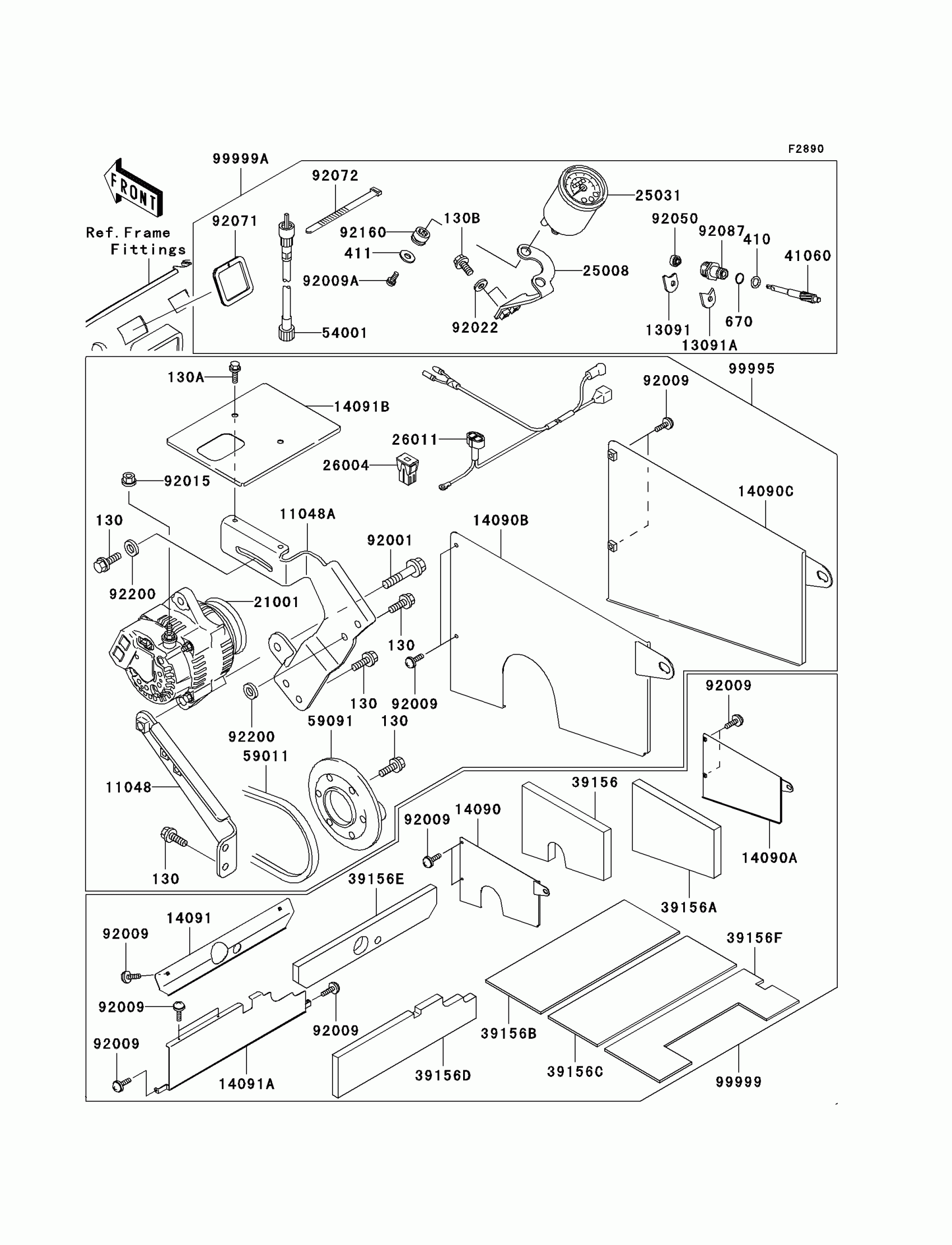

Kawasaki Mule 3010 4x4 Hardwoods Green HD Optional Parts Diagram

#

Description
Price

11048

BRACKET,ENGINE,LWR

11048-1243

$186.25

11048A

BRACKET,GENERATOR

11048-1244

$384.12

13091

HOLDER,TACHOMETER2.3T

13091-1008

$4.26

13091A

HOLDER,TACHOMETR,3.2T

13091-1009

$4.26

14090

COVER,ENCLOSURE,LH

14090-1260

$56.95

14090A

COVER,ENCLOSURE,RH

14090-1261

$56.95

14090B

COVER,ENCLOSURE,LH

14090-1354

$56.95

14090C

COVER,ENCLOSURE,RH

14090-1355

$56.95

14091

COVER,SEAT BACK

14091-1237

$133.57

14091A

COVER,SEAT UNDER

14091-1359

$94.37

14091B

COVER,GENERATOR

14091-1377

$49.82

21001

GENERATOR

21001-1129

$818.88

25008

BRACKET-METER

25008-1228

$40.27

25031

METER-ASSY,MPH

25031-1190

$229.73

26004

FUSE-ASSY,50A

26004-1096

$4.83

26011

WIRE-LEAD,GENERATOR

26011-1758

$97.28

39156

PAD,ENCLOSURE COVER,LH

39156-1301

$51.95

39156A

PAD,ENCLOSURE COVER,RH

39156-1302

$51.95

39156B

PAD,CARRIER,FR

39156-1304

$71.97

39156C

PAD,CARRIER,CNT

39156-1305

$67.40

39156D

PAD,SEAT UNDER

39156-1678

$84.83

39156E

PAD,SEAT BACK

39156-1679

$60.62

39156F

PAD,CARRIER,RR

39156-1680

$87.93

41060

GEAR-METER SCREW

41060-1148

$59.59

54001

CABLE-SPEEDOMETER

54001-1135

$47.99

59011

BELT

59011-2056

$21.20

59091

PULLEY

59091-2053

$58.46

92001

BOLT,BLACK,10X47

92001-1522

$6.22

92009

SCREW,6X16

92009-1621

Unavailable

92009A

SCREW,5X12

92009-3740

$4.18

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92050

SEAL-OIL

92050-075

$11.39

92071

GROMMET

92071-7504

$4.11

92072

BAND,L=140

92072-1293

$7.11

92087

GUIDE,TACHOMETER GEAR

92087-010

$24.19

92160

DAMPER

92160-1461

$7.49

92200

WASHER,8.5X20X2.3

92200-1055

$3.94

99995

KIT.,ALTERNATOR

99995-1481

$727.42

99999

KIT.,ENCLOSURE

99999-1071

$243.31

130

BOLT-FLANGED,8X20

130BA0820

$4.14

130A

BOLT-FLANGED,6X8

130BB0608

$6.07

130B

BOLT-FLANGED,6X14

130BB0614

$2.49

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

411

WASHER PLAIN 8MM

411B0800

$0.93

670

O RING,10MM

670D1510

$4.69

99999A

KIT.,SPEEDOMETER

99999-7503

$323.23
