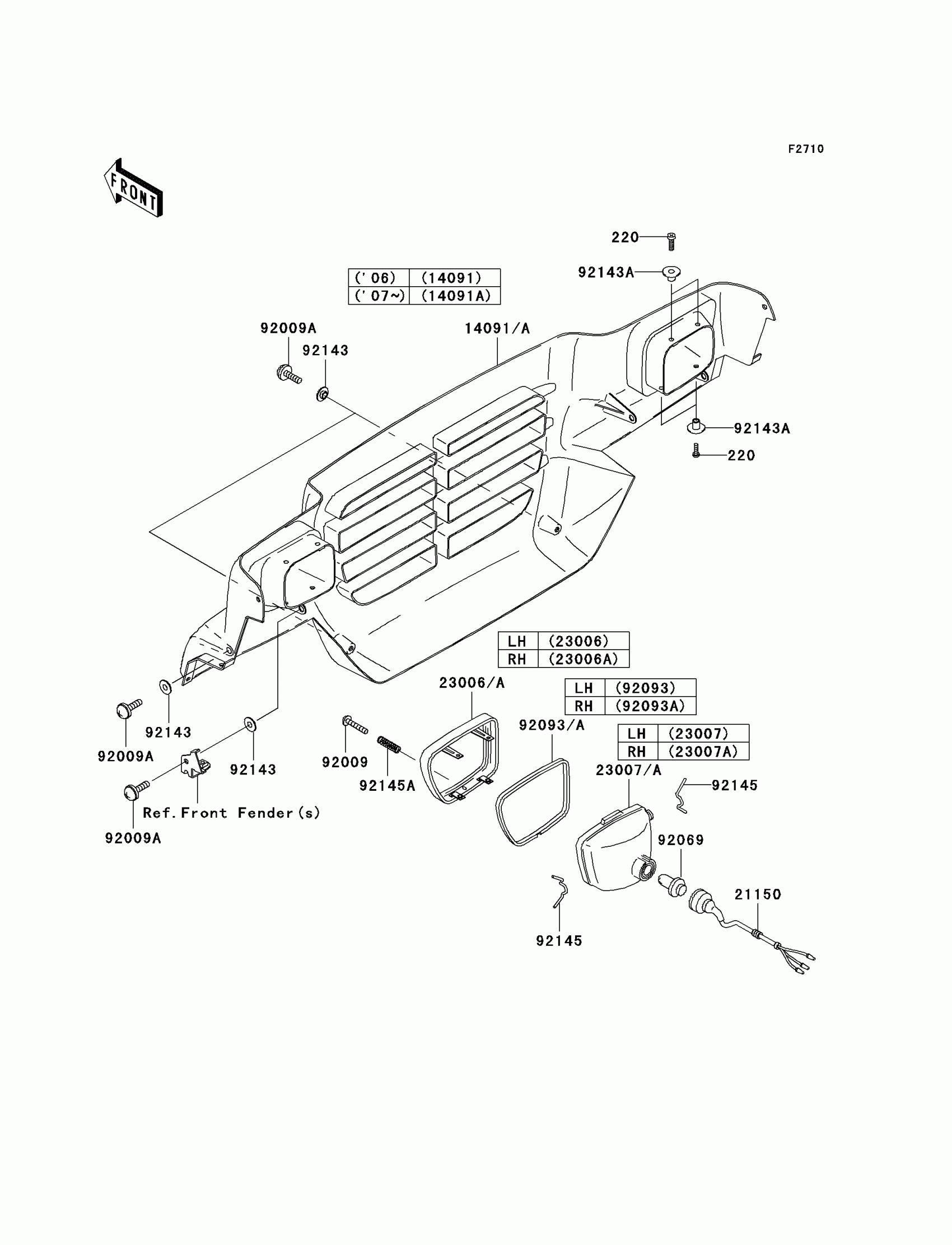

Kawasaki Mule 3010 4x4 Hardwoods Green HD Headlight(s) Diagram

Description

Price

220

SCREW-PAN-CROS,5X16

220AB0516

$1.27

14091A

COVER,FRONT GRIL,F.BLACK

14091-7545-6Z

$112.71

21150

CORD-ASSY,HEAD LAMP

21150-1060

Unavailable

23006

RIM-LAMP,LH

23006-1075

Unavailable

23006A

RIM-LAMP,RH

23006-1076

Unavailable

23007

LENS-COMP,HEAD LAMP,LH

23007-1354

$50.98

23007A

LENS-COMP,HEAD LAMP,RH

23007-1355

$44.22

92009

SCREW,TAPPING,4X30

92009-1139

Unavailable

92009A

SCREW,6X16

92009-1621

Unavailable

92069

BULB,12V 30/30W

92069-1080

$27.04

92093

SEAL,HEAD LAMP,LH

92093-1481

Unavailable

92093A

SEAL,HEAD LAMP,RH

92093-1482

Unavailable

92143

COLLAR

92143-1087

$2.98

92143A

COLLAR

92143-1234

$3.43

92145

SPRING

92145-1190

Unavailable

92145A

SPRING

92145-1230

Unavailable
