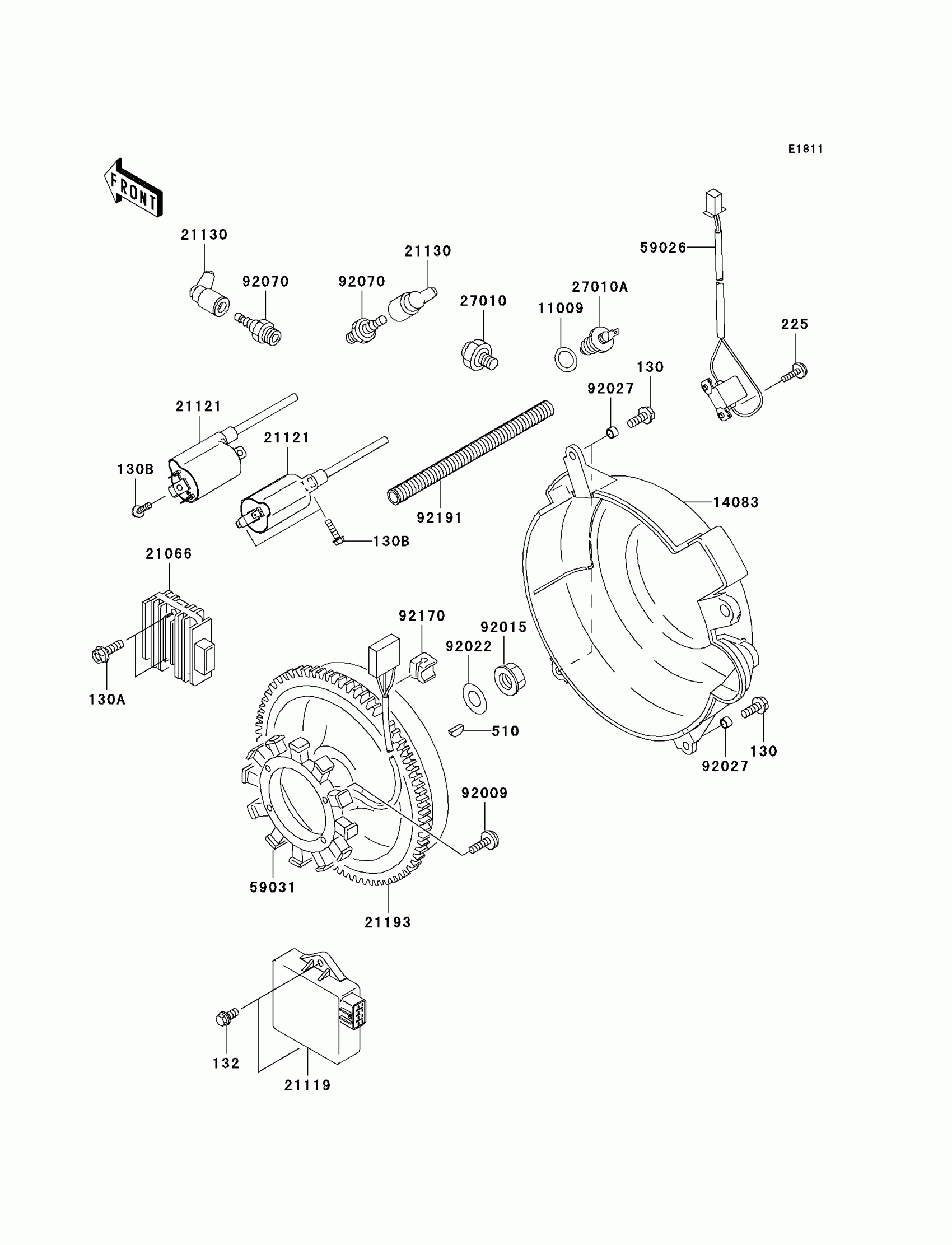

Kawasaki Mule 3010 4x4 Hardwoods Green HD Generator/Ignition Coil Diagram

Description

Price

130

BOLT-FLANGED,6X16

130AA0616

$0.51

130A

BOLT-FLANGED,6X20

130BB0620

$0.47

130B

BOLT-FLANGED,5X20

130B0520

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.49

225

SCREW-PAN-WSP-CROS,4X14

225AA0414

$0.63

510

WOODRUFF KEY

510A5100

$1.87

11009

GASKET

11009-2766

$1.20

14083

COVER-FLYWHEEL

14083-2052

Unavailable

21066

REGULATOR-VOLTAGE

21066-1127

Unavailable

21119

IGNITER

21119-0045

$356.05

21121

COIL-IGNITION

21121-2092

$79.17

21130

CAP-SPARK PLUG

21130-2060

$8.07

21193

FLYWHEEL-ASSY

21193-2184

Unavailable

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

27010A

SWITCH,TEMP

27010-2182

$29.83

59026

COIL-PULSING

59026-2065

Unavailable

59031

COIL-CHARGING

59031-2126

$222.70

92009

SCREW,6X25

92009-2273

$0.79

92015

NUT

92015-2167

$5.56

92022

WASHER

92022-2229

$2.42

92027

COLLAR,6.2X7.8X5

92027-2096

$0.48

92070

PLUG-SPARK,BPR2ES(NGK),SOLID

92070-2110

$3.14

92170

CLAMP

92170-2056

$2.42

92191

TUBE

92191-2124

$3.51
