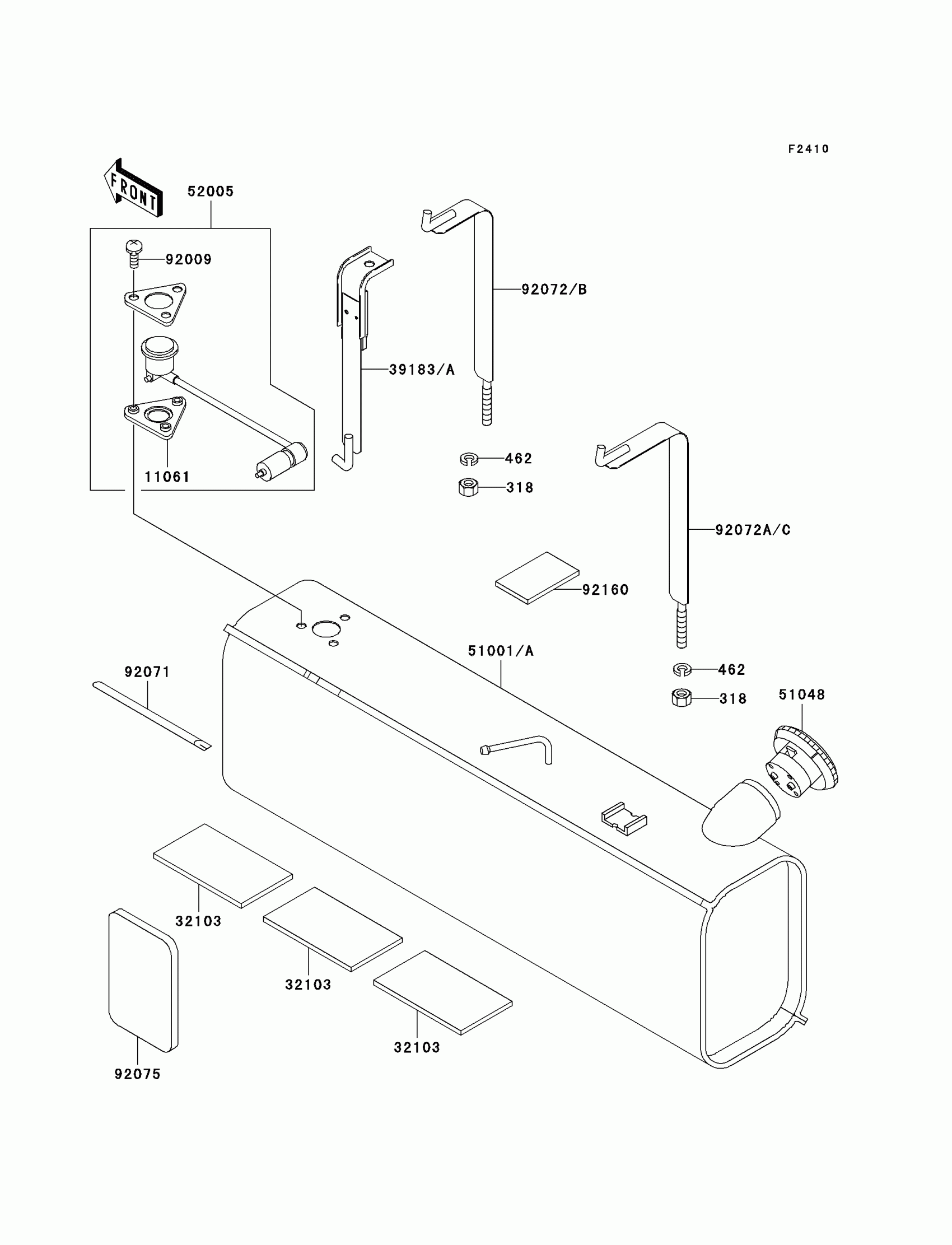

Kawasaki Mule 3010 4x4 Hardwoods Green HD Fuel Tank Diagram

Description

Price

318

NUT-HEX-SMALL

318C0800

Unavailable

462

WASHER-SPRING,8MM

462L0800

Unavailable

11061

GASKET,FUEL GAUGE

11061-0120

$12.48

32103

DAMPER,BATTERY

32103-027

$11.41

39183A

BAND-ASSY

39183-7501

$44.29

51001A

TANK-COMP-FUEL

51001-7510

$475.53

51048

CAP-ASSY-TANK,FUEL

51048-0005

$53.17

52005

GAUGE,FUEL

52005-0013

Unavailable

92009

SCREW,6X14

92009-1541

$3.95

92071

GROMMET

92071-1198

$2.36

92072B

BAND,FUEL TANK

92072-7503

$44.29

92072C

BAND,FUEL TANK

92072-7504

$44.29

92075

DAMPER

92075-3759

Unavailable

92160

DAMPER

92160-1102

$1.24
