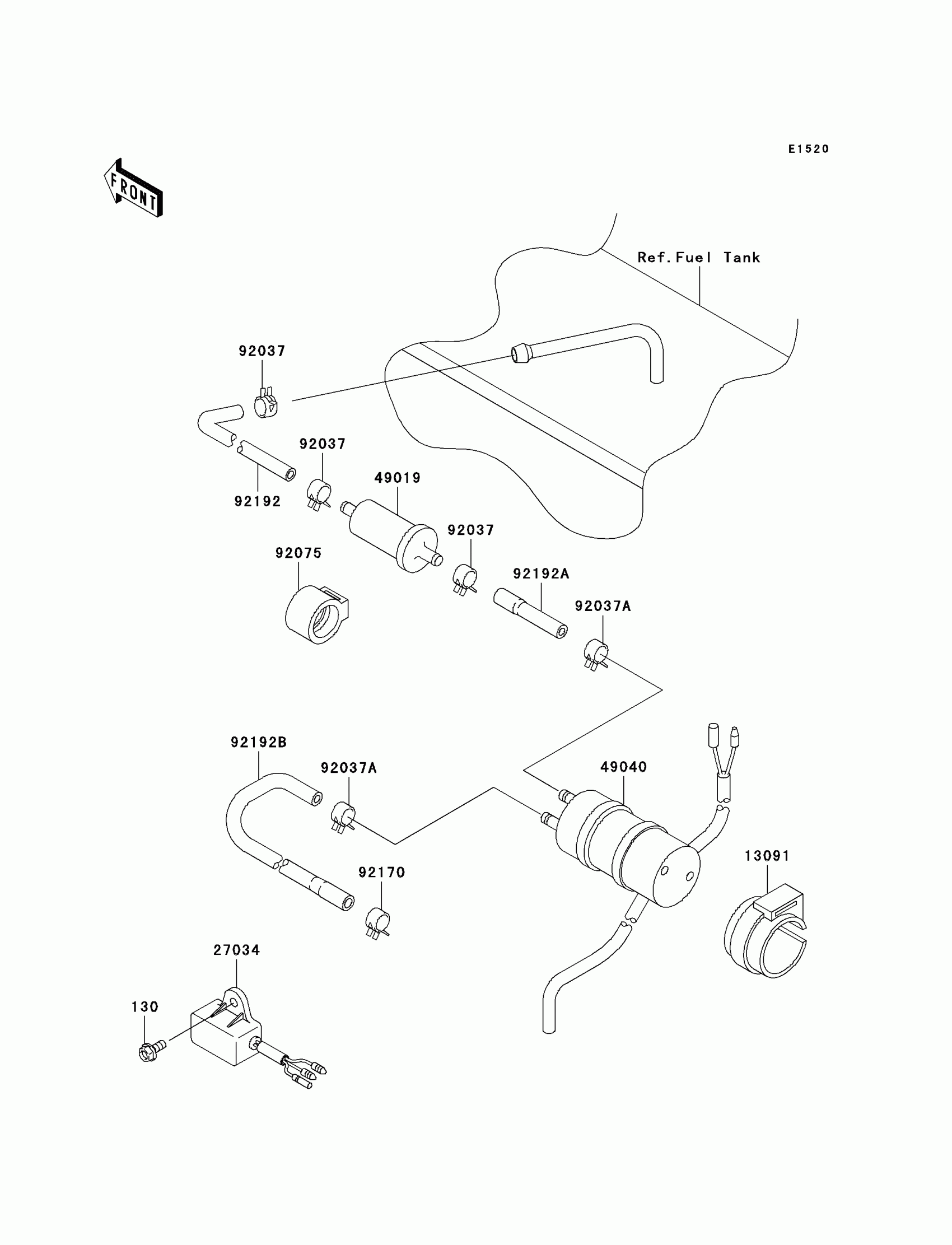

Kawasaki Mule 3010 4x4 Hardwoods Green HD Fuel Pump Diagram

Description

Price

130

BOLT-FLANGED,6X14

130BB0614

$2.49

13091

HOLDER

13091-1512

$15.74

27034

RELAY,FUEL CUT

27034-1053

$134.22

49019

FILTER-FUEL

49019-1055

$22.97

49040

PUMP-FUEL

49040-1055

$289.95

92037

CLAMP,HOSE CLIP

92037-1181

$3.36

92037A

CLAMP,TUBE

92037-1505

$4.76

92075

DAMPER,FUEL FILTER

92075-1853

$12.35

92170

CLAMP

92170-2082

$0.84

92192

TUBE

92192-0240

$35.25

92192A

TUBE

92192-0241

$22.55

92192B

TUBE

92192-0242

$47.85
