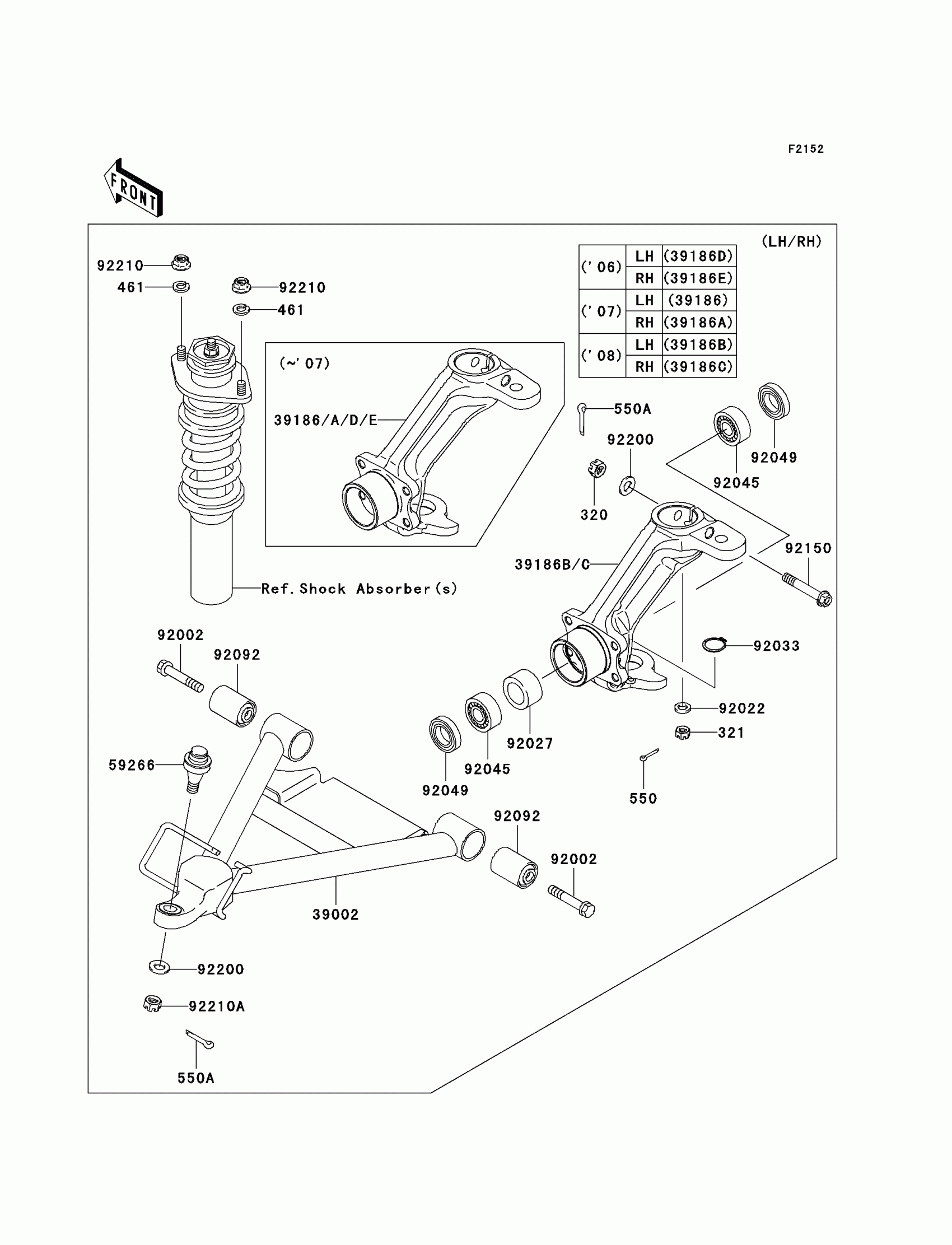

Kawasaki Mule 3010 4x4 Hardwoods Green HD Front Suspension Diagram

Description

Price

320

NUT-CASTLE

320G1200

Unavailable

321

NUT-CASTLE

321H1000

Unavailable

461

WASHER-SPRING

461L1000

$0.63

550

PIN-COTTER,2.0X22

550D2022

$1.80

550A

PIN-COTTER,3.0X25

550D3025

Unavailable

39002

ARM-COMP-SUSP

39002-0001

$182.68

39186B

KNUCKLE,FR,LH

39186-0074

$303.04

39186C

KNUCKLE,FR,RH

39186-0075

$303.04

59266

JOINT-BALL

59266-1080

$85.37

92002

BOLT,FLANGED,12X75

92002-1661

$10.44

92022

WASHER,10.5X18X2.5

92022-1876

$3.81

92027

COLLAR,L=34.5

92027-1538

$39.85

92033

RING-SNAP,C-TYPE,32MM

92033-1262

$4.81

92045

BEARING-BALL,60052RD

92045-0105

Unavailable

92049

SEAL-OIL,SD35X47X7HS

92049-1513

$30.57

92092

BUSHING-RUBBER

92092-1065

$11.40

92150

BOLT,FLANGED,12X72

92150-1356

$10.44

92200

WASHER,12.3X23X2.3

92200-1004

$3.57

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

92210A

NUT,CASTLE,12MM

92210-0395

$2.95
