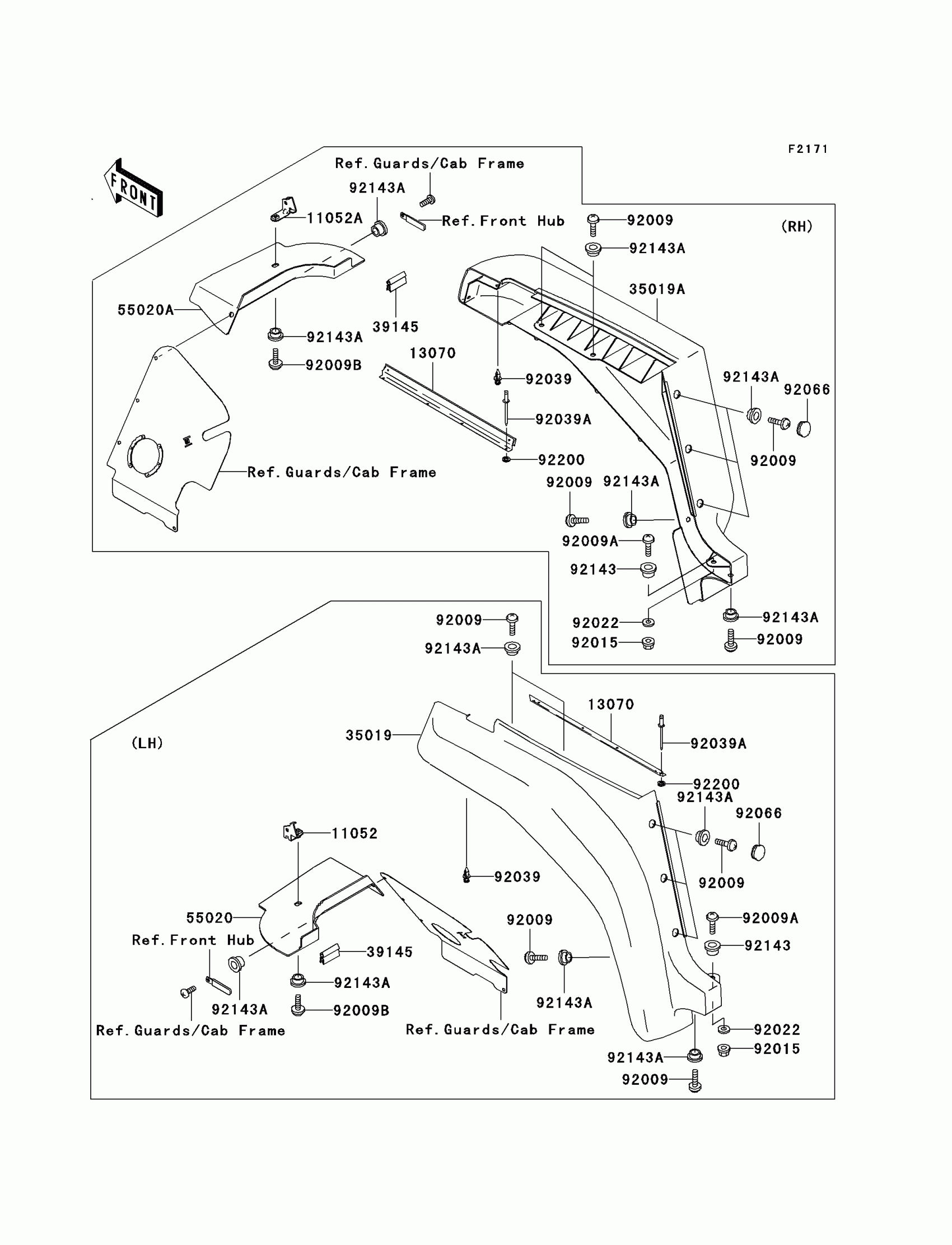

Kawasaki Mule 3010 4x4 Hardwoods Green HD Front Fender(s) Diagram

Description

Price

11052

BRACKET,LH

11052-1446

$8.56

11052A

BRACKET,RH

11052-1447

$8.56

13070

GUIDE,FRONT FLAP

13070-1403

$6.70

35019

FLAP,FR,LH,F.BLACK

35019-7508-6Z

$73.12

35019A

FLAP,FR,RH,F.BLACK

35019-7509-6Z

$73.12

39145

TRIM-SEAL,L=45

39145-1136

$3.30

55020

GUARD,LWR,LH

55020-1775

$7.65

55020A

GUARD,LWR,RH

55020-1776

$7.65

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X22,BLACK

92009-1256

$2.78

92009B

SCREW,6X16

92009-1621

Unavailable

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92039

RIVET

92039-1229

$1.19

92039A

RIVET

92039-1244

$1.94

92066

PLUG

92066-1231

$5.66

92143

COLLAR

92143-1057

$5.00

92143A

COLLAR

92143-1087

$4.31

92200

WASHER,3.7X6X1

92200-7505

$1.75
