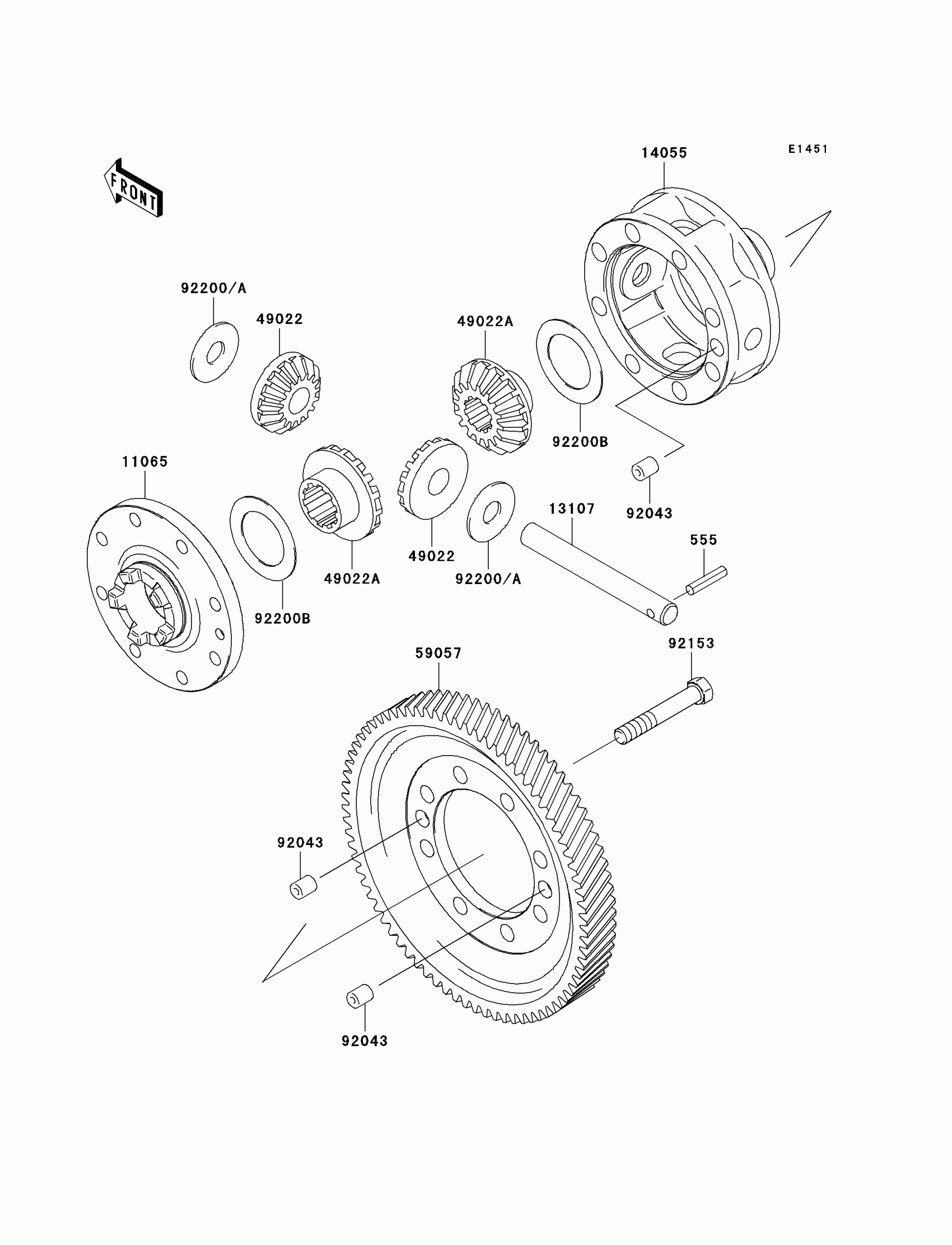

Kawasaki Mule 3010 4x4 Hardwoods Green HD Differential Diagram

Description

Price

555

PIN-SPRING

555A0525

$1.12

11065

CAP,GEAR CASE

11065-0033

$117.30

13107

SHAFT

13107-0009

$34.34

14055

CASE-GEAR,DIFFERENTIAL

14055-0003

$709.63

49022

GEAR-BEVEL,10T

49022-1105

$85.34

49022A

GEAR-BEVEL,16T

49022-1117

$154.15

59057

GEAR-HELICAL,DIFFERENTIAL

59057-0002

$203.36

92043

PIN,10X12

92043-0029

$7.24

92153

BOLT,10X63

92153-0331

$6.18

92200

WASHER,14.5X38X1.2

92200-0021

$6.18

92200A

WASHER,14.5X38X1.0

92200-1044

Unavailable

92200B

WASHER,35.5X54X1.0

92200-1045

$12.92
