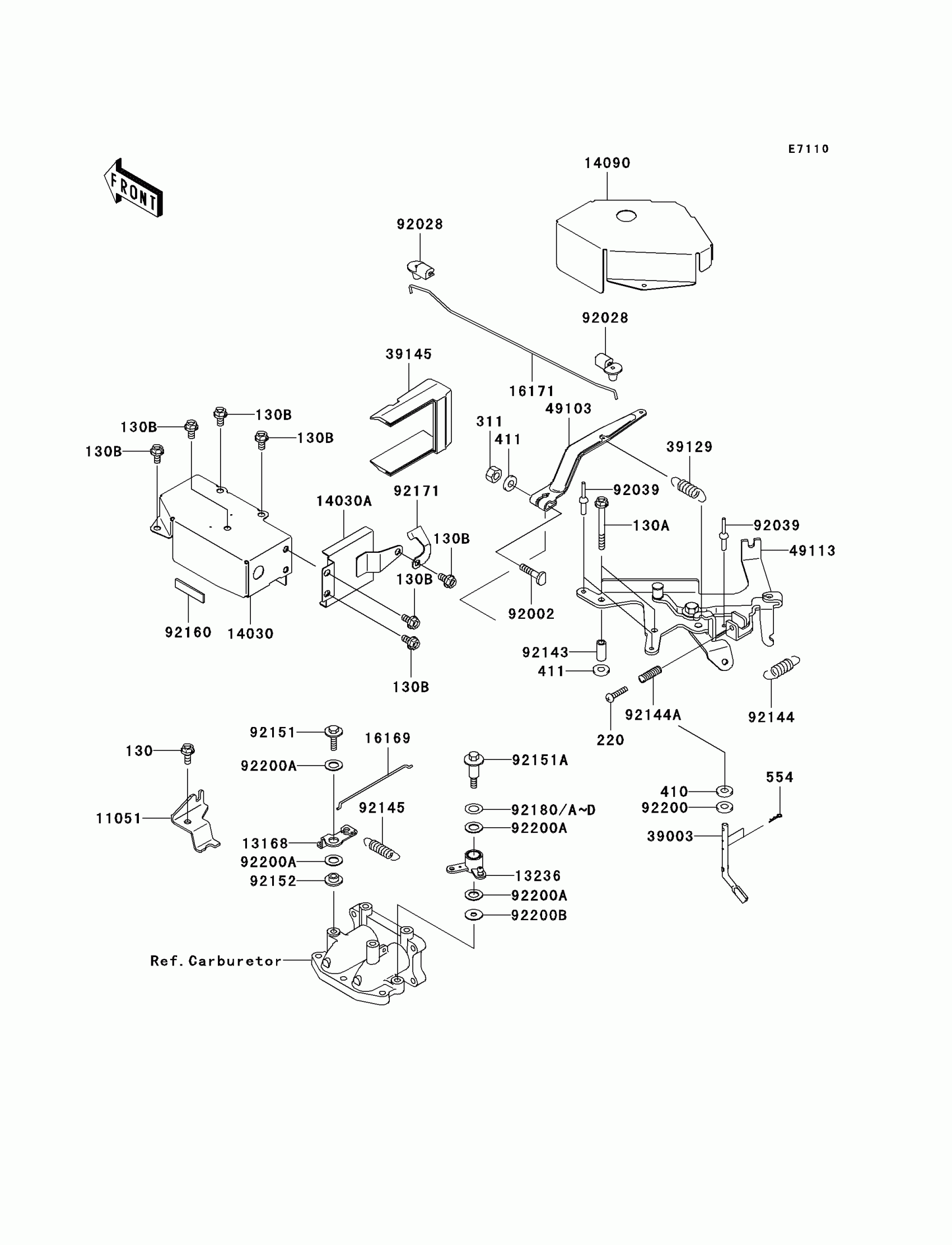

Kawasaki Mule 3010 4x4 Hardwoods Green HD Control Diagram

#

Description
Price

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,6X55

130BA0655

$4.99

130B

BOLT-FLANGED,6X12

130BB0612

$2.34

220

SCREW-PAN-CROS,5X22

220AA0522

$0.75

311

NUT 6MM

311B0600

$0.93

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

411

WASHER PLAIN 6MM

411B0600

$2.84

11051

BRACKET

11051-2100

$6.73

13168

LEVER

13168-2460

$3.98

13236

LEVER-COMP

13236-2154

$29.81

14030

COVER-CARBURETOR

14030-1059

$28.84

14030A

COVER-CARBURETOR

14030-1060

$9.28

14090

COVER,CONTROL PANEL

14090-1335

$19.11

16169

LINK-CHOKE

16169-2140

$9.36

16171

LINK

16171-1061

$9.62

39003

ARM-PIVOT,GOVERNOR

39003-1053

$25.88

39129

SPRING-GOVERNOR

39129-1011

$8.93

39145

TRIM-SEAL

39145-1128

$13.23

49103

ARM-GOVERNOR

49103-1055

$13.93

49113

PANEL-COMP-CONTROL

49113-1056

$101.58

92002

BOLT,6X28

92002-2269

$1.14

92028

BUSHING,GOVERNOR

92028-2156

$2.38

92039

RIVET,BLIND,4.0X9.2

92039-1163

$3.07

92143

COLLAR,6.8X10X42

92143-1072

$7.62

92144

SPRING,CONTROL

92144-1410

$7.32

92144A

SPRING

92144-2266

$4.81

92145

SPRING

92145-2088

$4.34

92151

BOLT

92151-2139

$2.48

92151A

BOLT

92151-2140

$6.73

92152

COLLAR

92152-2069

$5.69

92160

DAMPER

92160-1099

$4.80

92171

CLAMP

92171-1350

$4.57

92180

SHIM,T=0.5

92180-2055

Unavailable

92180A

SHIM,T=0.4

92180-2056

Unavailable

92180B

SHIM,T=0.3

92180-2057

Unavailable

92180C

SHIM,T=0.6

92180-2060

Unavailable

92180D

SHIM,T=0.7

92180-2061

Unavailable

92200

WASHER,6.5X11.5X2.0

92200-2029

$0.68

92200A

WASHER,10.1X18X1.0

92200-2124

$2.48

92200B

WASHER,6.1X18X1.0

92200-2125

$2.86

554

PIN,SNAP

554A0600

$0.93
