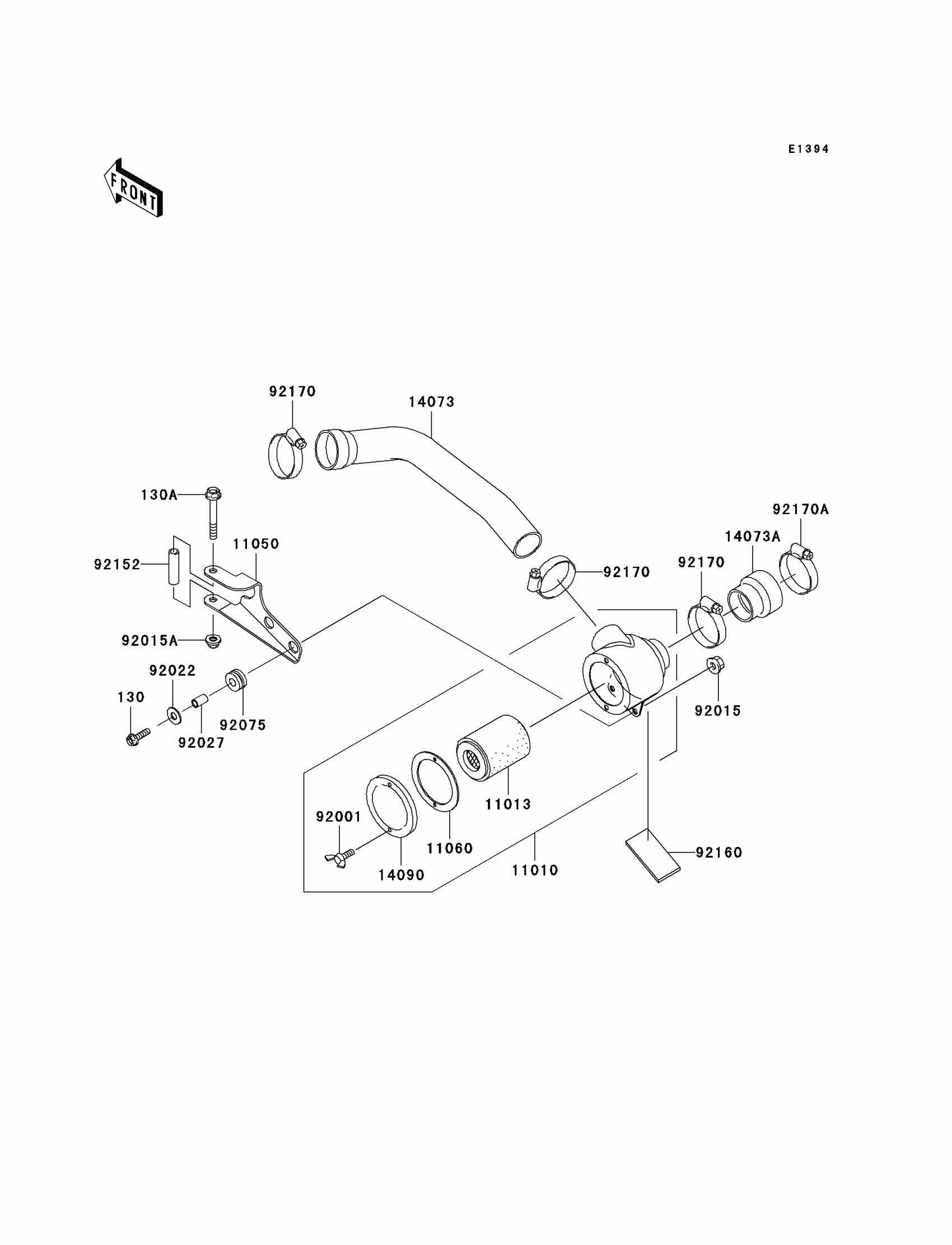

Kawasaki Mule 3010 4x4 Hardwoods Green HD Air Cleaner-Belt Converter Diagram

Description

Price

130

BOLT-FLANGED,8X30

130AB0830

$4.42

130A

BOLT-FLANGED,10X75

130BB1075

$6.78

11010

FILTER-ASSY-AIR

11010-0062

$201.72

11013

ELEMENT-AIR FILTER

11013-1263

$16.70

11050

BRACKET

11050-1404

$25.02

11060

GASKET,AIR FILTER CASE

11060-1975

$8.04

14073

DUCT

14073-1699

$53.33

14073A

DUCT

14073-1700

$17.42

14090

COVER,AIR FILTER

14090-1766

$12.03

92001

BOLT,WING,6X15

92001-1703

$2.36

92015

NUT,8MM

92015-1432

$4.93

92015A

NUT,LOCK,10MM

92015-1597

$4.18

92022

WASHER,9X28X2.3

92022-1632

$3.92

92027

COLLAR

92027-1081

$9.29

92075

DAMPER

92075-1736

$4.93

92152

COLLAR,10.5X16X50

92152-0083

$7.56

92160

DAMPER

92160-1102

$1.24

92170

CLAMP

92170-1674

$8.94

92170A

CLAMP

92170-1764

$8.62
