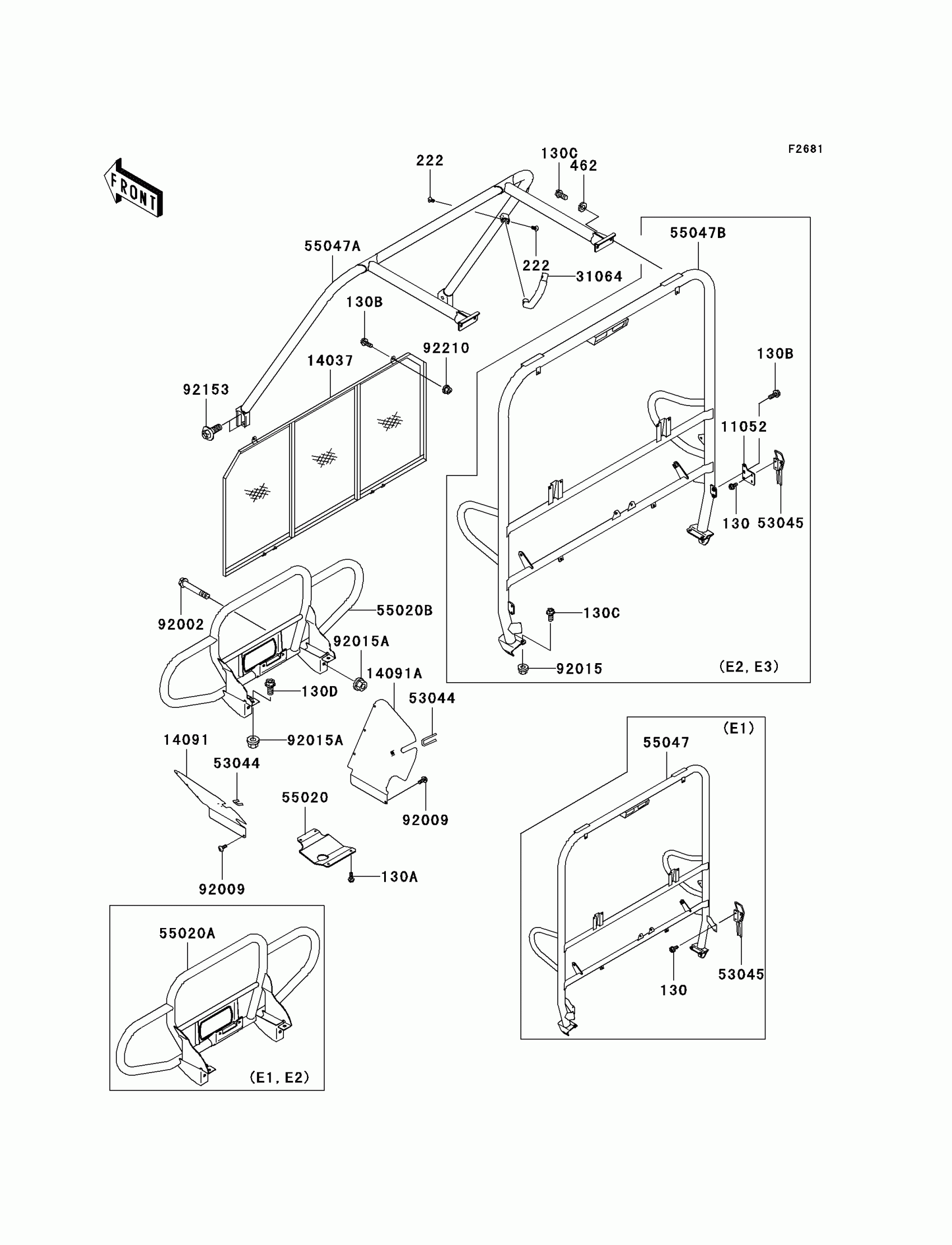

Kawasaki Mule 3010 4X4 Guards/Cab Frame(KAF620-E1-E3) Diagram

Description

Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

$2.33

130A

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

130B

BOLT-FLANGED,8X20

130J0820

$0.83

130C

BOLT-FLANGED,10X20

130J1020

$5.55

130D

BOLT-FLANGED

130P1225

$7.20

222

SCREW-CSK-RD-CROS

222F0612

$2.25

462

WASHER-SPRING,10MM

462K1000

$2.60

14037

SCREEN,REAR GUARD

14037-0016

Unavailable

14091

COVER,FR,LH

14091-1142

$84.60

14091A

COVER,FR,RH

14091-1143

$84.60

31064

PIPE-COMP

31064-1238

$64.31

53044

TRIM

53044-1137

$10.65

53045

HOOK-ASSY

53045-1063

$23.47

55020

GUARD,GEAR CASE

55020-1449

$87.20

55020A

GUARD,FR

55020-1752

$635.02

55047

BAR-COMP,RR

55047-1013

Unavailable

55047A

BAR-COMP,FR

55047-1016

Unavailable

92002

BOLT,FLANGED,12X75

92002-1661

$13.75

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,FLANGED,10MM

92015-1366

$5.00

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92153

BOLT,FLANGED,14X36

92153-1282

$7.63

92210

NUT,FLANGED,LOCK,8MM

92210-0005

$4.67
