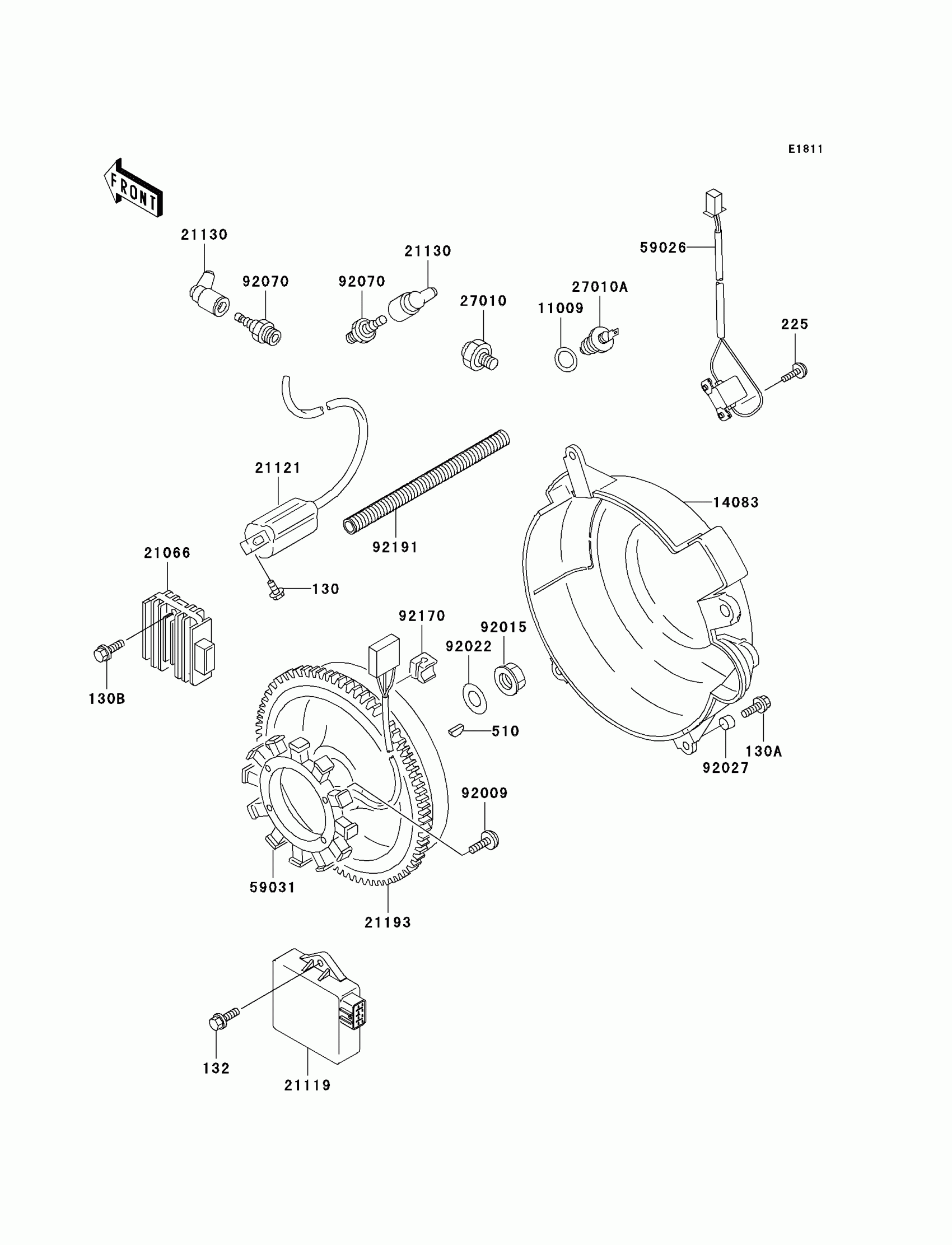

Kawasaki Mule 3010 4X4 Generator/Ignition Coil Diagram

Description

Price

130

BOLT-FLANGED,5X20

130B0520

$0.72

130A

BOLT-FLANGED,6X16

130B0616

Unavailable

130B

BOLT-FLANGED

130J0620

$0.43

132

BOLT-FLANGED-SMALL,6X12

132J0612

$1.92

225

SCREW-PAN-WSP-CROS

225B0414

$0.67

510

WOODRUFF KEY

510A5100

$2.70

11009

GASKET

11009-2766

$1.36

14083

COVER-FLYWHEEL

14083-2052

$30.62

21066

REGULATOR-VOLTAGE

21066-1127

Unavailable

21119

IGNITER

21119-1583

$341.97

21121

COIL-IGNITION

21121-2092

$89.22

21130

CAP-SPARK PLUG

21130-2060

$10.65

21193

FLYWHEEL-ASSY

21193-2184

Unavailable

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

27010A

SWITCH,TEMP

27010-2182

$34.76

59026

COIL-PULSING

59026-2065

$53.64

59031

COIL-CHARGING

59031-2126

$249.50

92009

SCREW,6X25

92009-2273

$1.14

92015

NUT

92015-2167

$6.54

92022

WASHER

92022-2229

$3.08

92027

COLLAR,6.2X7.8X5

92027-2096

$0.49

92070

PLUG-SPARK,BPR2ES(NGK),SOLID

92070-2110

$4.20

92170

CLAMP

92170-2056

$3.06

92191

TUBE

92191-2124

$3.89
