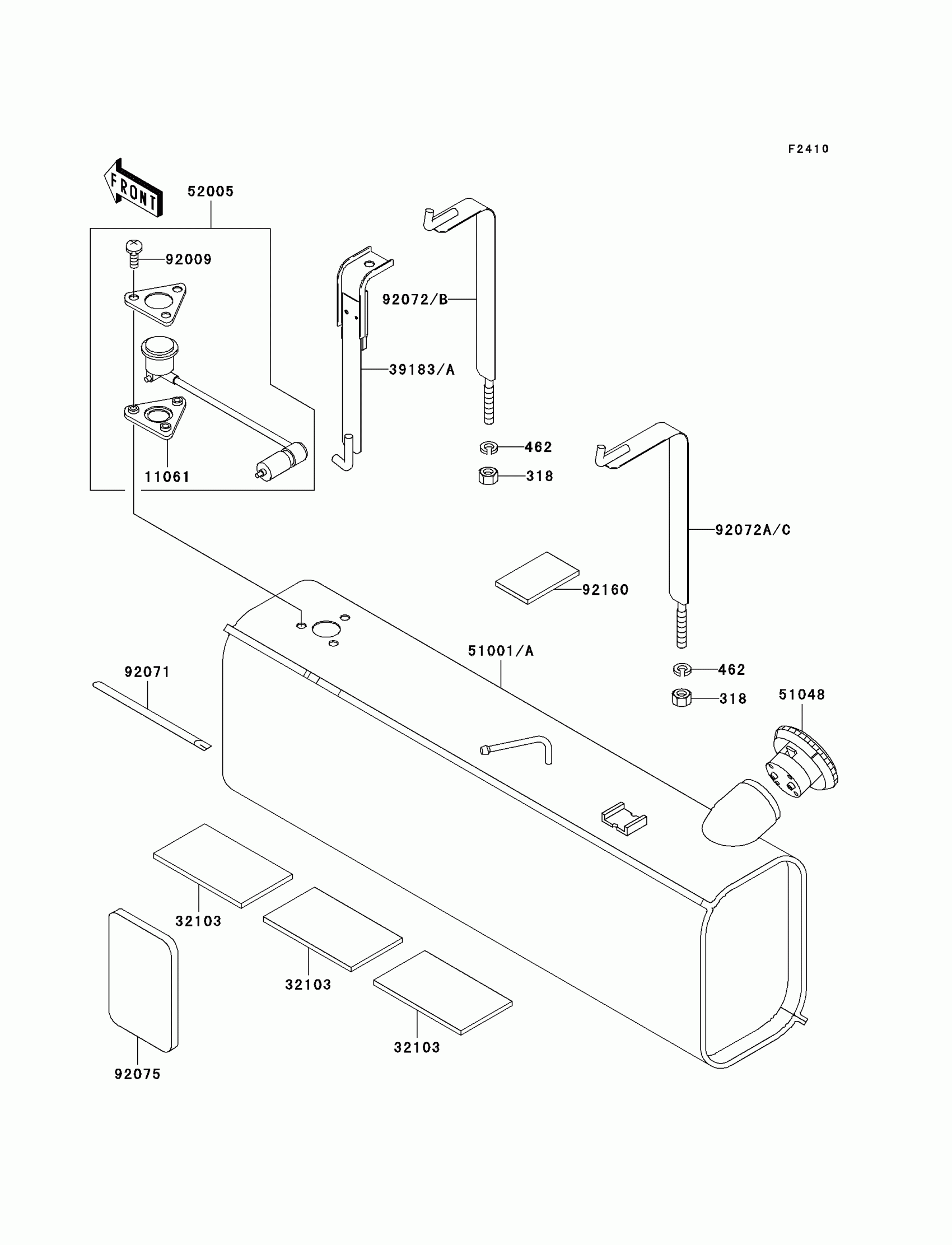

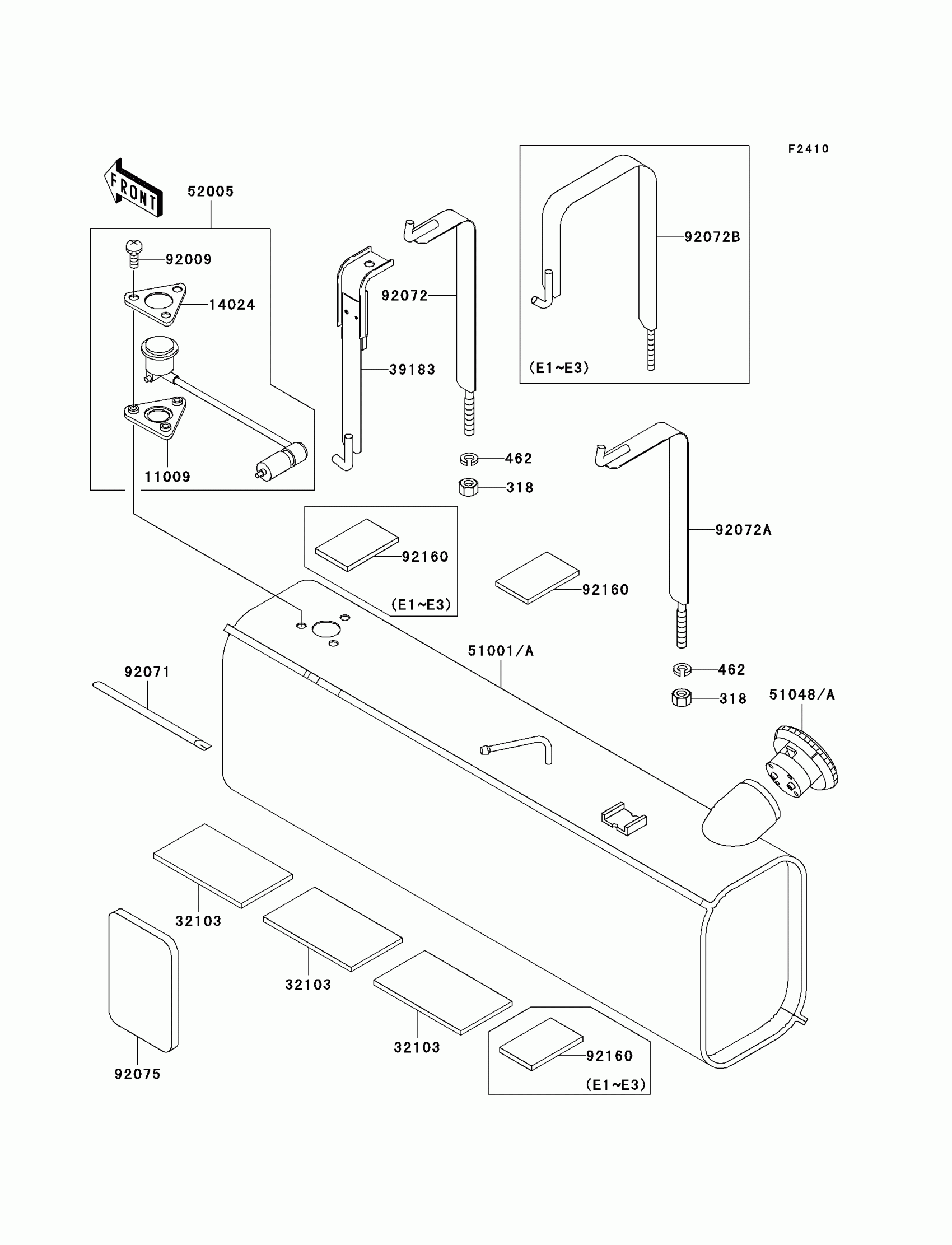

Kawasaki Mule 3010 4X4 Fuel Tank Diagram

Description

Price

318

NUT-HEX-SMALL

318C0800

$0.69

462

WASHER-SPRING,8MM

462L0800

$2.91

11061

GASKET,FUEL GAUGE

11061-0120

$16.46

32103

DAMPER,BATTERY

32103-027

$11.91

39183A

BAND-ASSY

39183-7501

$43.50

51001A

TANK-COMP-FUEL

51001-7510

$466.21

51048

CAP-ASSY-TANK,FUEL

51048-0005

$60.42

52005

GAUGE,FUEL

52005-0013

Unavailable

92009

SCREW,6X14

92009-1541

$4.43

92071

GROMMET

92071-1198

$2.90

92072B

BAND,FUEL TANK

92072-7503

$43.50

92072C

BAND,FUEL TANK

92072-7504

$43.50

92075

DAMPER

92075-3759

$34.48

92160

DAMPER

92160-1102

$1.38
