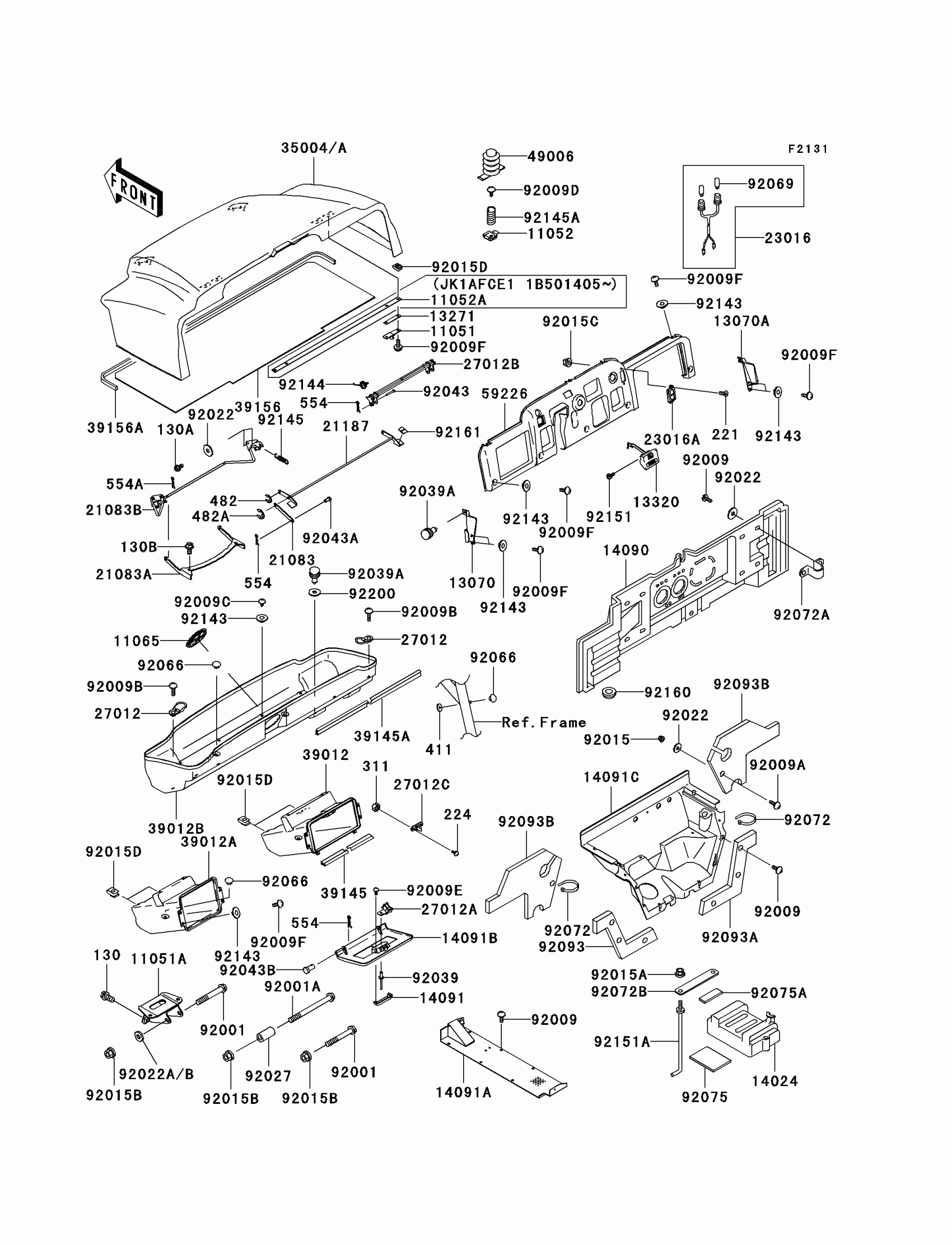

Kawasaki Mule 3010 4X4 Frame Fittings(KAF620-E1) Diagram

#

Description
Price

11051

BRACKET

11051-1756

$6.31

11051A

BRACKET,FRONT GEAR CASE

11051-1757

Unavailable

11052

BRACKET

11052-1258

$8.26

11052A

BRACKET

11052-1369

$15.11

11065

CAP,F.BLACK

11065-1053-6Z

$8.40

13070

GUIDE,LH

13070-1367

$28.39

13070A

GUIDE,RH

13070-1368

$28.39

13271

PLATE

13271-1663

Unavailable

13320

LEVER-ASSY

13320-1016

$118.91

14024

COVER,BATTERY

14024-1792

$50.39

14090

COVER,SEAT UNDER

14090-1271

$145.46

14091

COVER,GRAY

14091-1228-AZ

Unavailable

14091A

COVER,FLOOR,CNT

14091-1250

$110.20

14091B

COVER,GRAY

14091-1360-AZ

$147.22

14091C

COVER,FLOOR

14091-1378

$98.40

21083

ARM

21083-1146

$2.63

21083A

ARM

21083-1163

$43.54

21083B

ARM,.

21083-1164

$122.25

21187

ARM-ASSY

21187-1085

$42.43

23016

LAMP-ASSY,INDICATOR

23016-1188

$51.85

23016A

LAMP-ASSY

23016-1189

Unavailable

27012

HOOK

27012-1577

$14.45

27012A

HOOK

27012-1607

$7.75

27012B

HOOK

27012-1608

$72.78

27012C

HOOK

27012-1612

$3.92

35004

FENDER-FRONT,H.GREEN

35004-1435-6A

$128.94

35004A

FENDER-FRONT,F.RED

35004-1435-6L

$135.08

39012

CASE-STORAGE,RH,GRAY

39012-1061-AZ

$42.21

39012A

CASE-STORAGE,LH,GRAY

39012-1062-AZ

$43.74

39012B

CASE-STORAGE,CNT

39012-1066

$89.59

39145

TRIM-SEAL,L=774

39145-1130

$22.86

39145A

TRIM-SEAL,L=2805

39145-1132

$61.40

39156

PAD

39156-1684

$129.53

39156A

PAD

39156-1685

$18.63

49006

BOOT

49006-1347

$11.85

59226

PANEL-CONTROL,GRAY

59226-1060-AZ

$144.44

92001

BOLT,FLANGED,10X70

92001-1600

$10.37

92001A

BOLT,FLANGED,10X115

92001-1603

$10.65

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X18,BLACK

92009-1181

$2.80

130

BOLT-FLANGED,10X20

130G1020

$3.14

130A

BOLT-FLANGED,6X12

130J0612

$2.19

130B

BOLT-FLANGED,8X16

130J0816

$1.66

92009B

SCREW,6X22,BLACK

92009-1256

$2.78

92009C

SCREW,TAPPING,6MM

92009-1261

$2.80

92009D

SCREW,6X14

92009-1288

$3.92

92009E

SCREW,TAPPING,4X12

92009-1444

$3.21

92009F

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1386

Unavailable

92015A

NUT,FLANGED,8MM

92015-1406

$4.45

92015B

NUT,LOCK,10MM

92015-1597

$5.52

92015C

NUT,LOCK,FLANGED,6MM

92015-1603

$4.69

92015D

NUT,CLAMP,6MM

92015-1678

$5.52

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92022A

WASHER,10.2X20X0.5

92022-1649

Unavailable

92022B

WASHER,10.5X20X1

92022-239

Unavailable

92027

COLLAR,11X20X39

92027-1518

$19.28

92039

RIVET

92039-1041

$3.65

92039A

RIVET

92039-1229

$1.19

92043

PIN,6X39

92043-1625

$2.48

92043A

PIN,6X9

92043-1626

$2.26

92043B

PIN,6X13

92043-1627

Unavailable

92066

PLUG

92066-1485

$2.44

92069

BULB,12V 3W,T7

92069-1020

$6.52

92072

BAND,L=365

92072-1197

$7.84

92072A

BAND

92072-1252

$11.91

92072B

BAND,L=159

92072-1399

$3.68

92075

DAMPER

92075-1076

$8.86

92075A

DAMPER

92075-1214

$4.39

92093

SEAL,FRONT FENDER,LH

92093-1293

$9.64

92093A

SEAL,FRONT FENDER,RH

92093-1294

$10.00

92093B

SEAL,LOWER COVER

92093-1295

$22.57

92143

COLLAR

92143-1087

$4.31

92144

SPRING,SEAT HOOK

92144-1174

$6.82

92145

SPRING

92145-1335

$6.34

92145A

SPRING

92145-1402

$4.55

92151

BOLT,FLANGED,5X12

92151-1305

$1.59

92151A

BOLT,BATTERY

92151-1897

$6.69

92160

DAMPER

92160-1148

$4.58

92161

DAMPER

92161-1197

$5.15

92200

WASHER,8.5X26X0.8

92200-1567

$2.86

221

SCREW-CSK-CROS

221C0616

Unavailable

224

SCREW-PAN-WP-CROS,4X12

224C0412

Unavailable

311

NUT-HEX

311C0400

$0.62

411

WASHER

411F1000

$3.82

482

CIRCLIP-TYPE-E,5MM

482L5000

$1.34

482A

CIRCLIP-TYPE-E

482L7000

$3.92

554

PIN,SNAP

554A0600

$0.93

554A

PIN-SNAP,8MM

554A0800

$1.26
