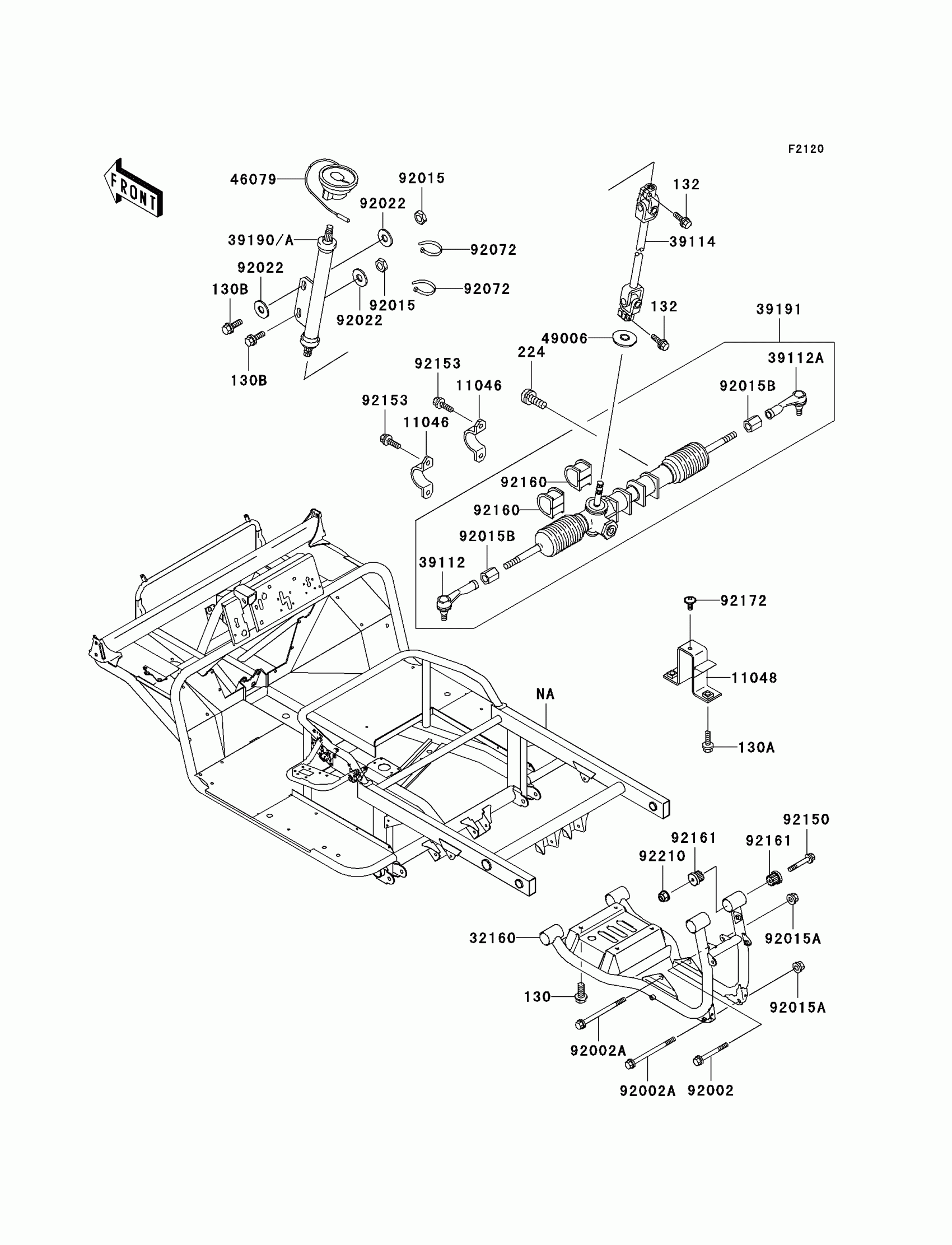

Kawasaki Mule 3010 4X4 Frame Diagram
#
Description
Price
130
BOLT-FLANGED,8X20
130BA0820
$4.14
130A
BOLT-FLANGED,8X20
130BB0820
$0.84
130B
BOLT-FLANGED,10X30
130BB1030
$6.55
132
BOLT-FLANGED-SMALL,8X25
132BB0825
$4.12
224
SCREW-PAN-WP-CROS,5X8
224AA0508
$0.68
11046
BRACKET,STEERING GEAR
11046-1858
Unavailable
11048
BRACKET,REAR FRAME
11048-1245
$26.09
32160
FRAME-COMP,RR
32160-0004
Unavailable
39112
RODEND-TIE,STEERING GEAR,LH
39112-1068
$96.05
39112A
RODEND-TIE,STEERING GEAR,RH
39112-1069
$96.05
39114
SHAFT-COMP-STRG
39114-0009
$319.63
39190
SHAFT-ASSY-STEERING
39190-0005
$231.78
39191
GEAR-ASSY-STEERING
39191-0008
$1,066.48
46079
CONTACT,HORN SWITCH
46079-1063
$86.71
49006
BOOT,STEERING SHAFT,LWR
49006-1255
$34.90
92002
BOLT,FLANGED,10X80
92002-1764
$7.45
92002A
BOLT,FLANGED,10X145
92002-1765
$11.37
92015
NUT,LOCK,10MM,BLACK
92015-1189
$7.34
92015A
NUT,LOCK,10MM
92015-1597
$5.52
92015B
NUT
92015-1864
$14.39
92022
WASHER,10.5X26X2.3,BLACK
92022-1396
$3.21
92072
BAND,L=188
92072-1239
$1.73
92150
BOLT,FLANGED,10X100
92150-1731
$18.15
92153
BOLT,SOCKET,10X23
92153-1269
$2.80
92160
DAMPER,STEERING GEAR
92160-1084
$31.96
92161
DAMPER
92161-1126
Unavailable
92172
SCREW,6X14
92172-0004
$2.80
92210
NUT,LOCK,FLANGED,10MM
92210-1139
$4.18
