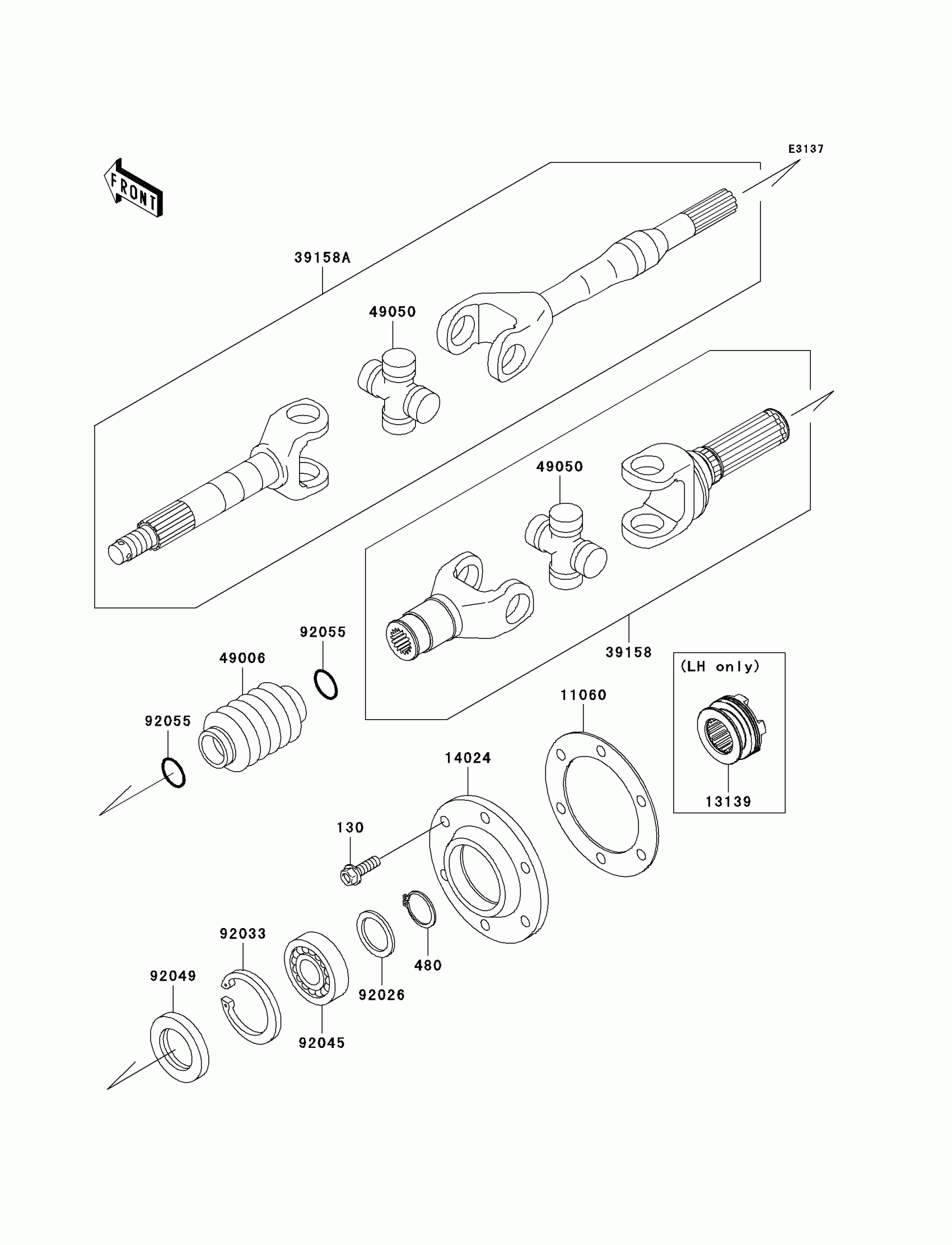

Kawasaki Mule 3010 4X4 Drive Shaft-Rear Diagram

Description

Price

130

BOLT-FLANGED,8X25

130BA0825

$2.95

480

CIRCLIP-TYPE-C,28MM

480J2800

$4.70

11060

GASKET,DRIVESHAFT COVER

11060-1251

$12.80

13139

SHIFTER

13139-0009

$102.63

14024

COVER,DRIVESHAFT

14024-1560

$267.15

39158

SHAFT-ASSY-DRIVE,INSIDE

39158-1119

$414.18

39158A

SHAFT-ASSY-DRIVE

39158-1120

$376.38

49006

BOOT,DRIVE SHAFT

49006-1257

$44.09

49050

SPIDER

49050-1060

Unavailable

92026

SPACER,28.1X38X2.6

92026-1489

$4.67

92033

RING-SNAP,55MM

92033-1274

$9.43

92045

BEARING-BALL,6006

92045-1208

$22.15

92049

SEAL-OIL,TC35X55X8

92049-1298

$8.98

92055

RING-O,19.5X3.0

92055-1451

$4.69
