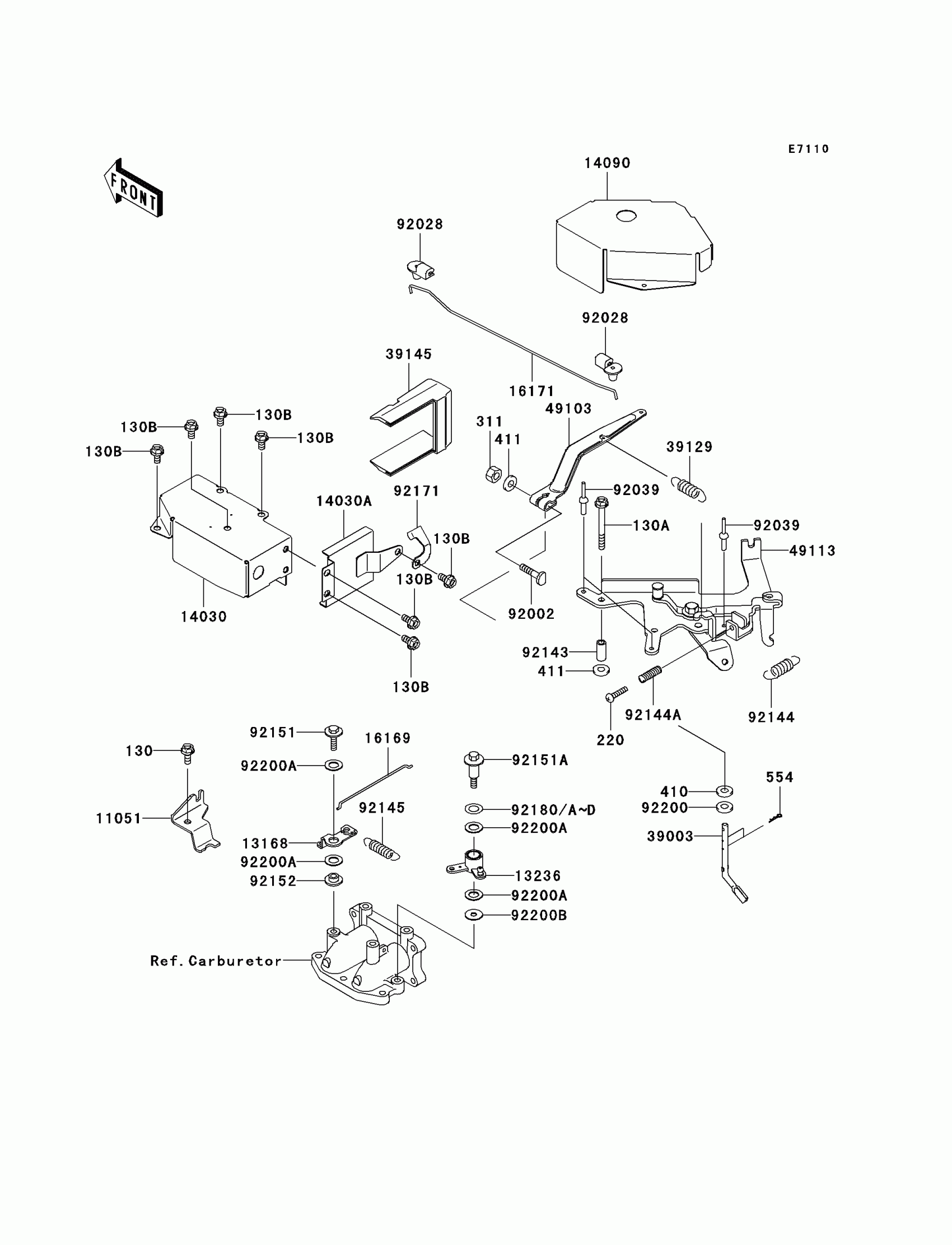

Kawasaki Mule 3010 4X4 Control Diagram
#
130
BOLT,FLANGED,6X14
130G0614
$1.17
130A
BOLT-FLANGED,6X55
130G0655
$4.65
130B
BOLT-FLANGED,6X12
130J0612
$2.19
220
SCREW PAN HEAD 5X22
220B0522
$0.74
311
NUT 6MM
311B0600
$0.93
410
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
411
WASHER PLAIN 6MM
411B0600
$2.84
554
PIN,SNAP
554A0600
$0.93
11051
BRACKET
11051-2100
$6.73
13168
LEVER
13168-2460
$3.98
13236
LEVER-COMP
13236-2154
$29.81
14030
COVER-CARBURETOR
14030-1059
$28.84
14030A
COVER-CARBURETOR
14030-1060
$9.28
14090
COVER,CONTROL PANEL
14090-1335
$19.11
16169
LINK-CHOKE
16169-2140
$9.36
16171
LINK
16171-1061
$9.62
39003
ARM-PIVOT,GOVERNOR
39003-1053
$25.88
39129
SPRING-GOVERNOR
39129-1011
$8.93
39145
TRIM-SEAL
39145-1128
$13.23
49103
ARM-GOVERNOR
49103-1055
$13.93
49113
PANEL-COMP-CONTROL
49113-1056
$101.58
92002
BOLT,6X28
92002-2269
$1.14
92028
BUSHING,GOVERNOR
92028-2156
$2.38
92039
RIVET,BLIND,4.0X9.2
92039-1163
$3.07
92143
COLLAR,6.8X10X42
92143-1072
$7.62
92144
SPRING,CONTROL
92144-1410
$7.32
92144A
SPRING
92144-2266
$4.81
92145
SPRING
92145-2088
$4.34
92151
BOLT
92151-2139
$2.48
92151A
BOLT
92151-2140
$6.73
92152
COLLAR
92152-2069
$5.69
92171
CLAMP
92171-1350
$4.57
92180
SHIM,T=0.5
92180-2055
Unavailable
92180A
SHIM,T=0.4
92180-2056
Unavailable
92180B
SHIM,T=0.3
92180-2057
Unavailable
92180C
SHIM,T=0.6
92180-2060
Unavailable
92180D
SHIM,T=0.7
92180-2061
Unavailable
92200
WASHER,6.5X11.5X2.0
92200-2029
$0.68
92200A
WASHER,10.1X18X1.0
92200-2124
$2.48
92200B
WASHER,6.1X18X1.0
92200-2125
$2.86
