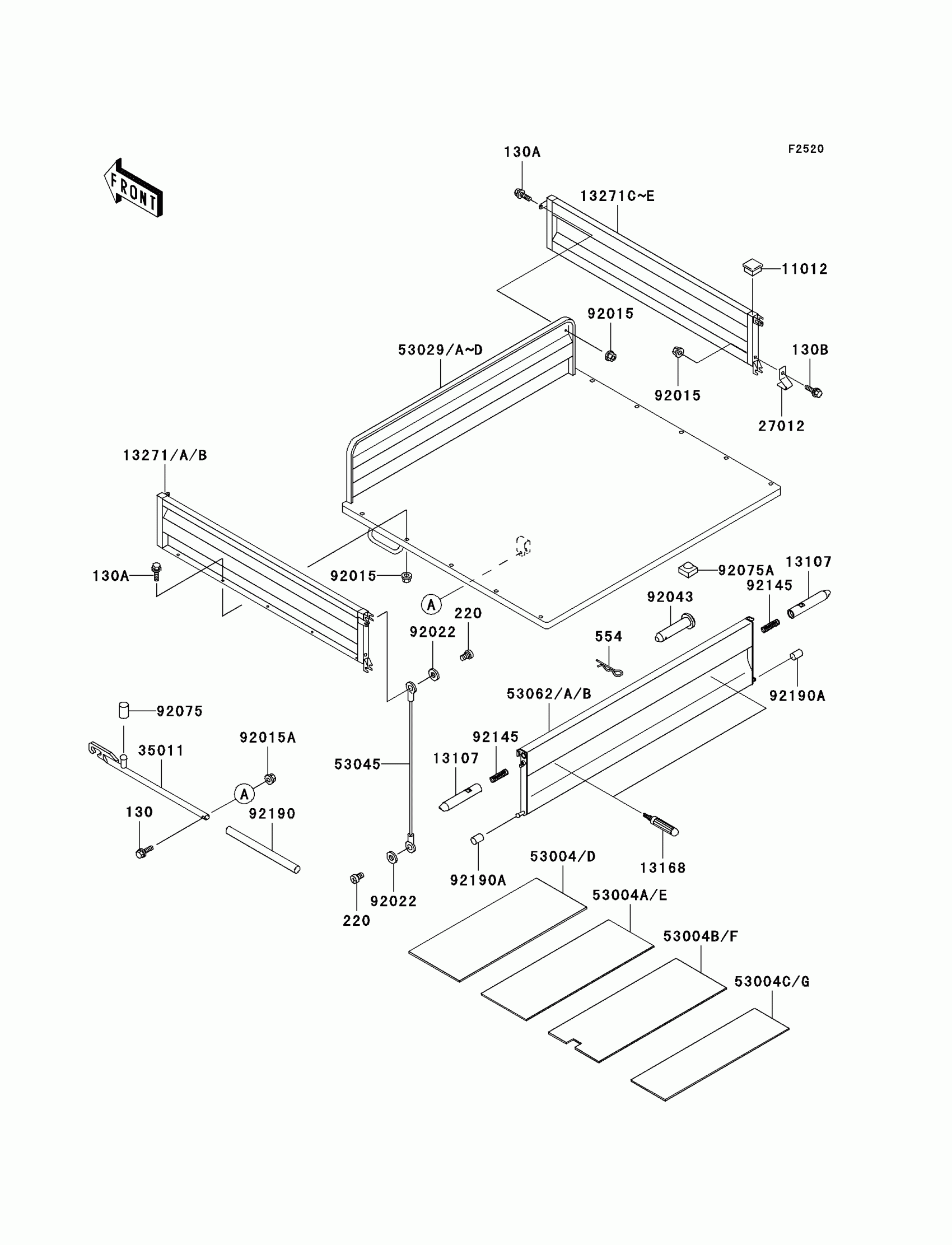

Kawasaki Mule 3010 4X4 Carrier(s)(KAF620-E1-E3) Diagram

#

Description
Price

130

BOLT-FLANGED,6X30

130H0630

$1.42

130A

BOLT-FLANGED,8X20

130J0820

$0.83

130B

BOLT-FLANGED,8X50

130J0850

$4.37

220

SCREW-PAN-CROSS,6X10

220F0610

$1.81

554

PIN-SNAP,12MM

554A1200

$3.57

11012

CAP

11012-1784

$6.32

13107

SHAFT

13107-1453

Unavailable

13168

LEVER

13168-1695

Unavailable

13271

PLATE,CARRIER,SIDE,LH,F.RED

13271-1430-B1

$225.62

13271A

PLATE,CARRIER,SIDE,LH,H.GREEN

13271-1430-B9

$225.62

13271C

PLATE,CARRIER,SIDE,RH,F.RED

13271-1433-B1

$225.62

13271D

PLATE,CARRIER,SIDE,RH,H.GREEN

13271-1433-B9

$255.72

27012

HOOK,TAIL GATE

27012-1406

$6.43

35011

STAY,CARRIER STOPPER

35011-1648

$28.90

53004

MAT

53004-1152

Unavailable

53004A

MAT

53004-1153

$132.80

53004B

MAT

53004-1154

Unavailable

53004C

MAT

53004-1155

$107.03

53029

CARRIER,F.RED

53029-1226-B1

Unavailable

53029A

CARRIER,H.GREEN

53029-1226-B9

Unavailable

53045

HOOK-ASSY,TAIL GATE

53045-1065

$33.93

53062

GATE-TAIL,F.RED

53062-1006-B1

$389.73

53062A

GATE-TAIL,H.GREEN

53062-1006-B9

Unavailable

92015

NUT,FLANGED,8MM

92015-1408

$5.38

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,7X18X1.2

92022-1545

$1.03

92043

PIN,12X65

92043-1428

$10.09

92075

DAMPER

92075-1817

$6.22

92075A

DAMPER

92075-1882

$8.10

92145

SPRING,TENSIONER

92145-1215

$4.63

92190

TUBE,13X16X200

92190-1401

$5.25

92190A

TUBE,8X10X15

92190-1467

$3.89
