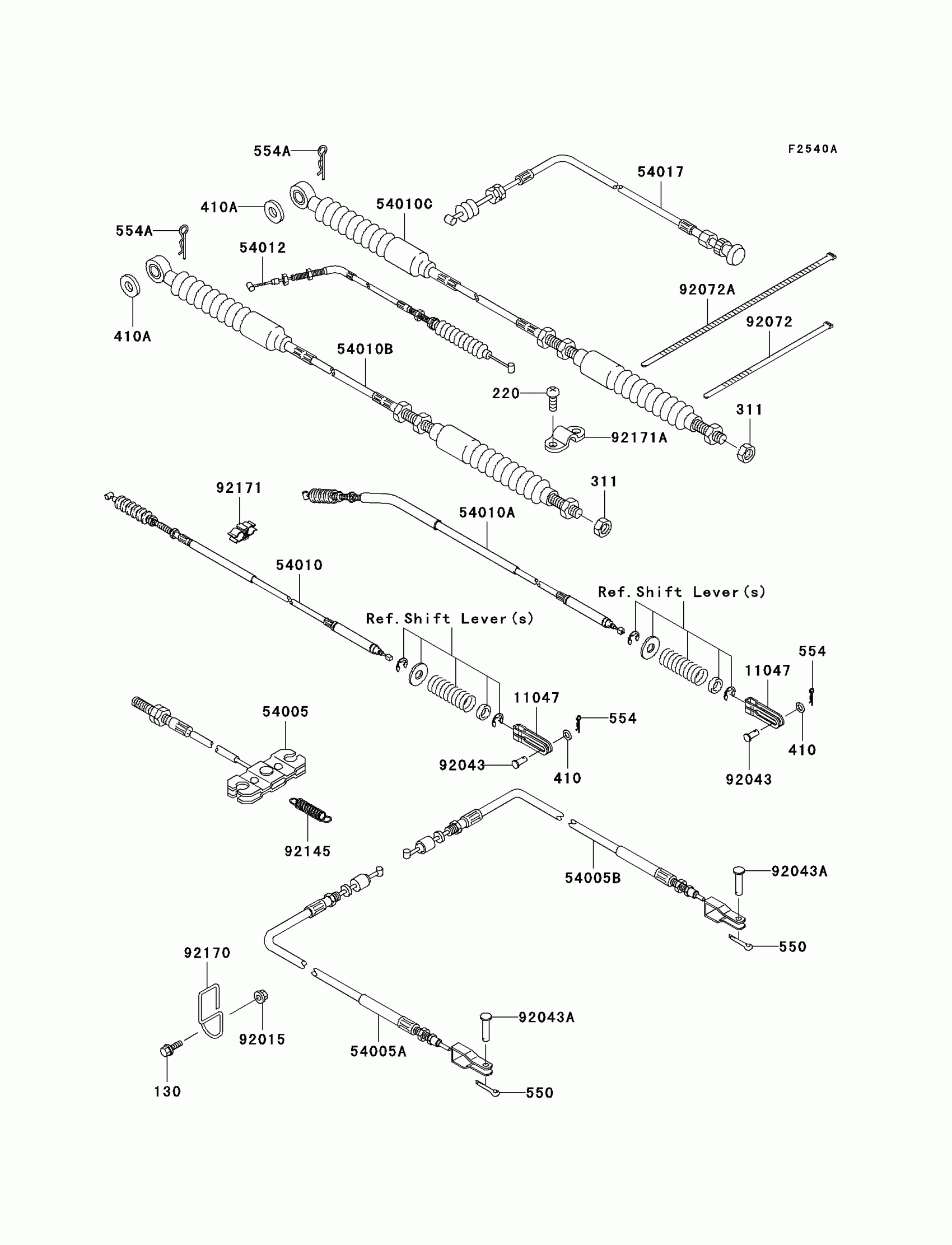

Kawasaki Mule 3010 4X4 Cables(JK1AFCE1 6B543664-) Diagram

Description

Price

130

BOLT-FLANGED,6X20

130AA0620

$1.74

220

SCREW-PAN-CROS,5X14

220AA0514

$4.43

311

NUT 6MM

311B0600

$0.93

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

410A

W-PLAIN-S,8MM

410E0800

$0.96

550

PIN-COTTER,2.0X22

550D2022

$2.51

554

PIN,SNAP

554A0600

$0.93

554A

PIN-SNAP,8MM

554A0800

$1.26

11047

BRACKET,DIFF LOCK

11047-1043

Unavailable

54005

CABLE-BRAKE,PARKING,FR

54005-1198

$10.30

54005A

CABLE-BRAKE,PARKING,RR,LH

54005-1209

Unavailable

54005B

CABLE-BRAKE,PARKING,RR,RH

54005-1210

Unavailable

54010

CABLE,2-4WD

54010-0044

$47.99

54010A

CABLE,DIFF LOCK

54010-1120

$80.75

54010B

CABLE,SHIFT CONTROL

54010-1121

$148.62

54010C

CABLE,HI-LOW

54010-1124

$109.91

54012

CABLE-THROTTLE

54012-1637

$47.39

54017

CABLE-STARTER

54017-1208

$53.04

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92043

PIN,6X11

92043-092

$4.69

92043A

92043-1039

$9.91

92072

BAND,L=188

92072-1239

$1.73

92072A

BAND,L=368.3

92072-3872

$1.59

92145

SPRING

92145-7506

$9.34

92170

CLAMP,CABLE

92170-1372

$9.73

92171

CLAMP

92171-0129

$4.18

92171A

CLAMP

92171-1203

$2.58
