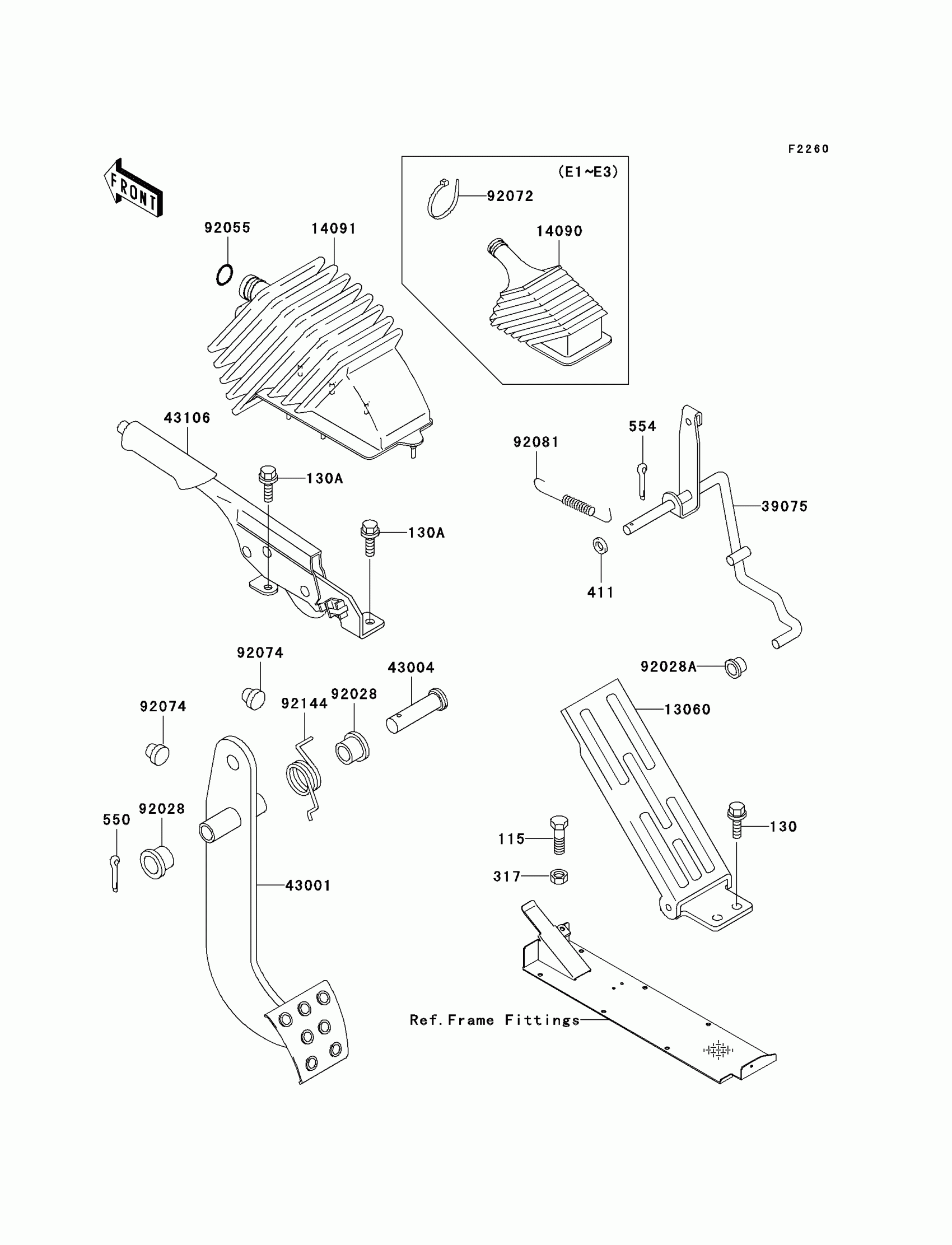

Kawasaki Mule 3010 4X4 Brake Pedal/Throttle Lever Diagram

Description

Price

115

BOLT-SMALL-UPSET,8X40

115D0840

$5.38

130

BOLT-FLANGED,6X12

130C0612

$0.63

130A

BOLT-FLANGED

130D0816

Unavailable

317

NUT-HEX-SMALL,8MM

317H0800

$1.63

411

WASHER-PLAIN,10MM

411E1000

$0.73

550

PIN-COTTER,2.5X25

550D2525

$1.26

554

PIN-SNAP,10MM

554A1000

$1.36

13060

PEDAL,THROTTLE

13060-1061

$48.03

14090

COVER,PARKING LEVER

14090-1992

$77.76

39075

LEVER-THROTTLE

39075-1057

$70.92

43001

LEVER-BRAKE,PEDAL

43001-1320

$57.55

43004

SHAFT-BRAKE

43004-1128

$17.76

43106

LEVER-ASSY-PARKING BRAKE

43106-1005

Unavailable

92028

BUSHING

92028-1571

$10.67

92028A

BUSHING,THROTTLE LEVER

92028-1601

$4.44

92072

BAND,L=188

92072-1239

$1.73

92074

PLUG,7X2

92074-028

$4.26

92081

SPRING,BRAKE LEVER RETURN

92081-1922

$6.16

92144

SPRING

92144-1536

$8.30
