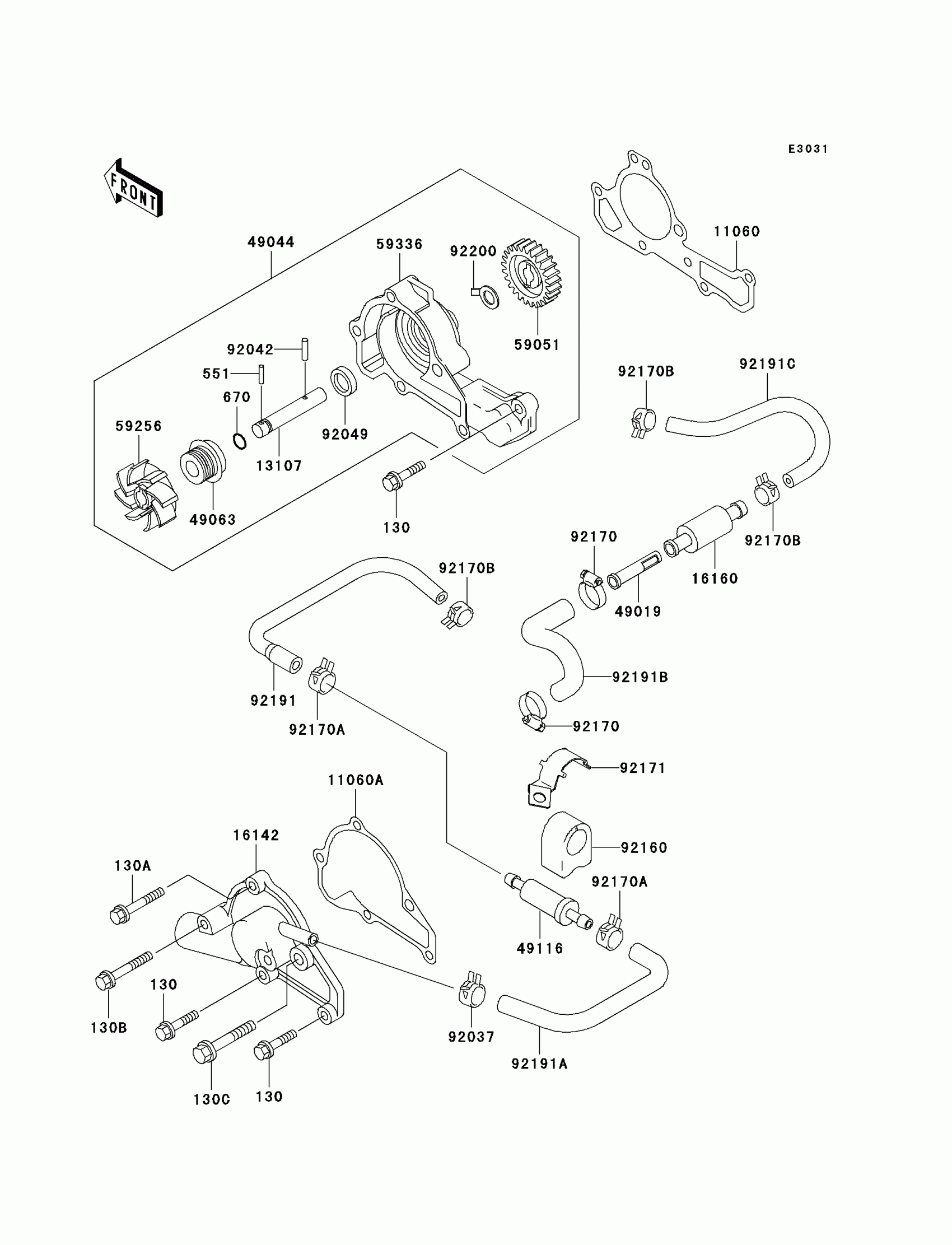

Kawasaki Mule 3010 4x4 Advantage Classic Water Pump Diagram

Description

Price

130

BOLT-FLANGED

130T0645

$1.44

130A

BOLT-FLANGED

130T0665

$1.74

130B

BOLT-FLANGED

130T0675

$1.74

130C

BOLT-FLANGED

130T0870

$1.98

551

PIN,DOWEL,3X14

551A0314

$0.73

670

O RING,7MM

670B1507

$1.28

11060

GASKET,PUMP CASE

11060-2450

$7.31

11060A

GASKET,PUMP COVER

11060-2451

$5.07

13107

SHAFT,IMPELLER

13107-2097

$8.15

16142

COVER-PUMP

16142-2069

Unavailable

16160

BODY

16160-1359

$9.43

49019

FILTER-WATER

49019-1068

$5.13

49044

PUMP-WATER

49044-2058

$70.46

49063

SEAL-MECHANICAL

49063-1056

$16.68

49116

VALVE-ASSY

49116-1081

$112.64

59051

GEAR-SPUR

59051-2113

$4.72

59256

IMPELLER

59256-2057

$4.09

59336

CASE-PUMP

59336-2052

$30.79

92037

CLAMP,HOSE CLIP

92037-2065

Unavailable

92042

PIN,DOWEL,4X15.8

92042-014

$0.43

92049

SEAL-OIL

92049-2111

$3.59

92160

DAMPER,VALVE

92160-1451

$10.76

92170

CLAMP

92170-1278

$10.62

92170A

CLAMP

92170-1492

$5.00

92170B

CLAMP

92170-1493

$5.00

92171

CLAMP

92171-2064

$8.65

92191

TUBE

92191-2110

$8.57

92191A

TUBE

92191-2111

$8.57

92191B

TUBE

92191-2125

$13.10

92191C

TUBE

92191-2130

$9.62

92200

WASHER

92200-2044

$2.93
