Transmission

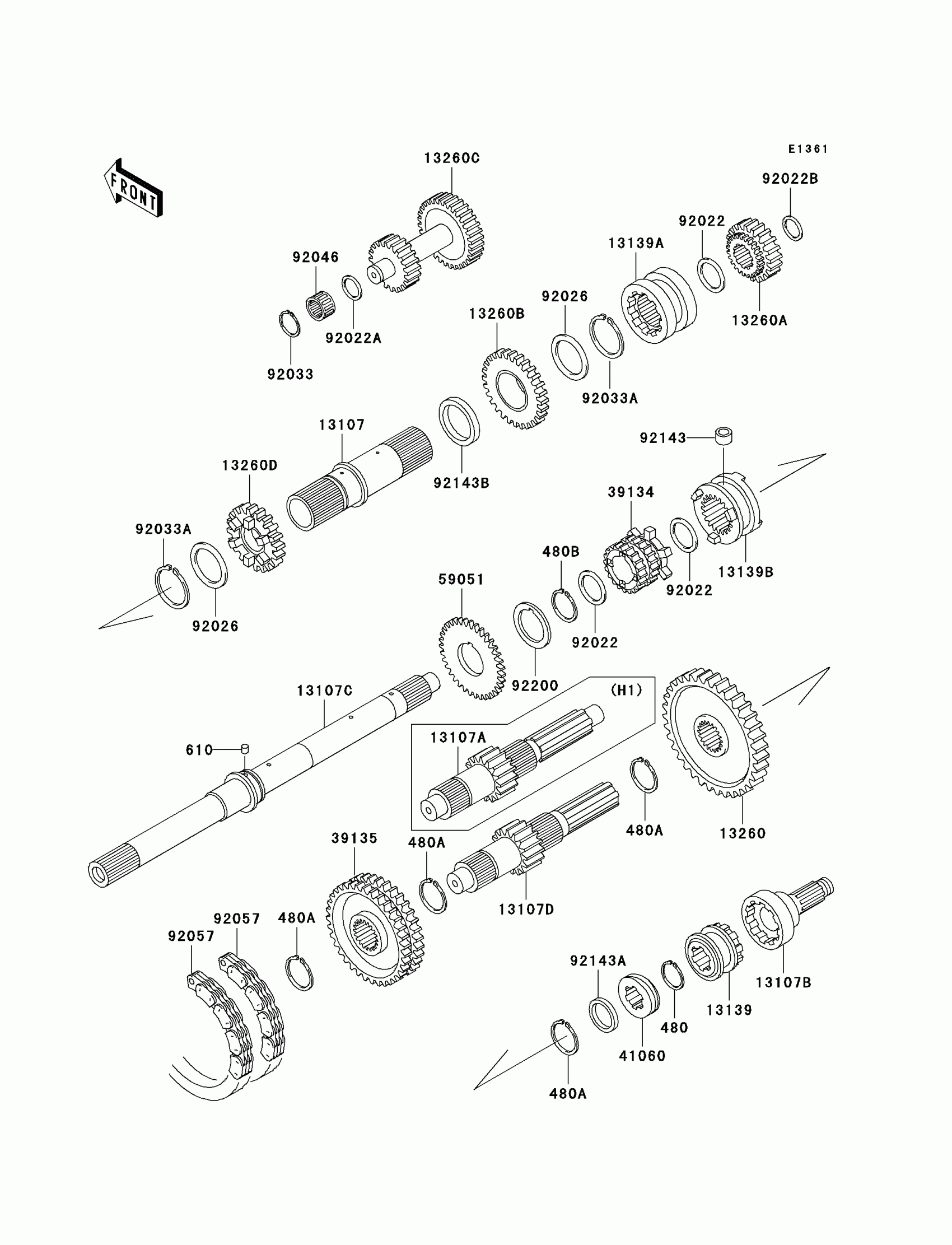

Kawasaki Mule 3010 4x4 Advantage Classic Transmission Diagram
#
Description
Price
480
CIRCLIP-TYPE-C,25MM
480J2500
$2.03
480A
CIRCLIP-TYPE-C,30MM
480J3000
$6.22
480B
CIRCLIP-TYPE-C,32MM
480J3200
$1.77
610
ROLLER
610A0505
$3.98
13107
SHAFT,INPUT OUTER
13107-1309
$200.13
13107A
SHAFT,OUTPUT,15T
13107-1310
$263.44
13107B
SHAFT,2WD/4WD
13107-1313
$209.92
13107C
SHAFT,INPUT
13107-1470
$358.87
13139
SHIFTER,2WD/4WD
13139-1068
$111.65
13139A
SHIFTER,SPEED,HI/LOW
13139-1069
$136.50
13139B
SHIFTER,FR/RR
13139-1072
$94.90
13260
GEAR,OUTPUT REVERSE,51T
13260-1288
$166.77
13260A
GEAR,INPUT REDUCTION,20T
13260-1289
$137.41
13260B
GEAR,INPUT REDUCTION,28T
13260-1290
$137.41
13260C
GEAR,REDUCTION,17T&25T
13260-1291
$271.91
13260D
GEAR,INPUT 28T
13260-1462
$137.41
39134
SPROCKET-DRIVE,20T
39134-1055
$120.45
39135
SPROCKET-DRIVEN,41T
39135-1055
$142.88
41060
GEAR-METER SCREW
41060-1147
$37.81
59051
GEAR-SPUR
59051-2097
$27.92
92022
WASHER,25.3X33X1
92022-1109
$5.96
92022A
WASHER,17.3X28X1
92022-255
$8.58
92022B
WASHER,17.3X30X1.4
92022-270
$9.84
92026
SPACER,35.3X44X0.5
92026-1375
$7.33
92033
RING-SNAP
92033-032
$4.96
92033A
RING-SNAP
92033-1269
$7.98
92046
BEARING-NEEDLE
92046-1184
$21.25
92057
CHAIN,REVERSE,81RH2520,54L
92057-1364
$44.90
92143
COLLAR,8X14X10.5
92143-1497
$4.18
92143A
COLLAR,25X32X4.5
92143-1597
$13.44
92143B
COLLAR
92143-1599
$22.21
92200
WASHER,GOVERNOR GEAR
92200-1155
$4.86
