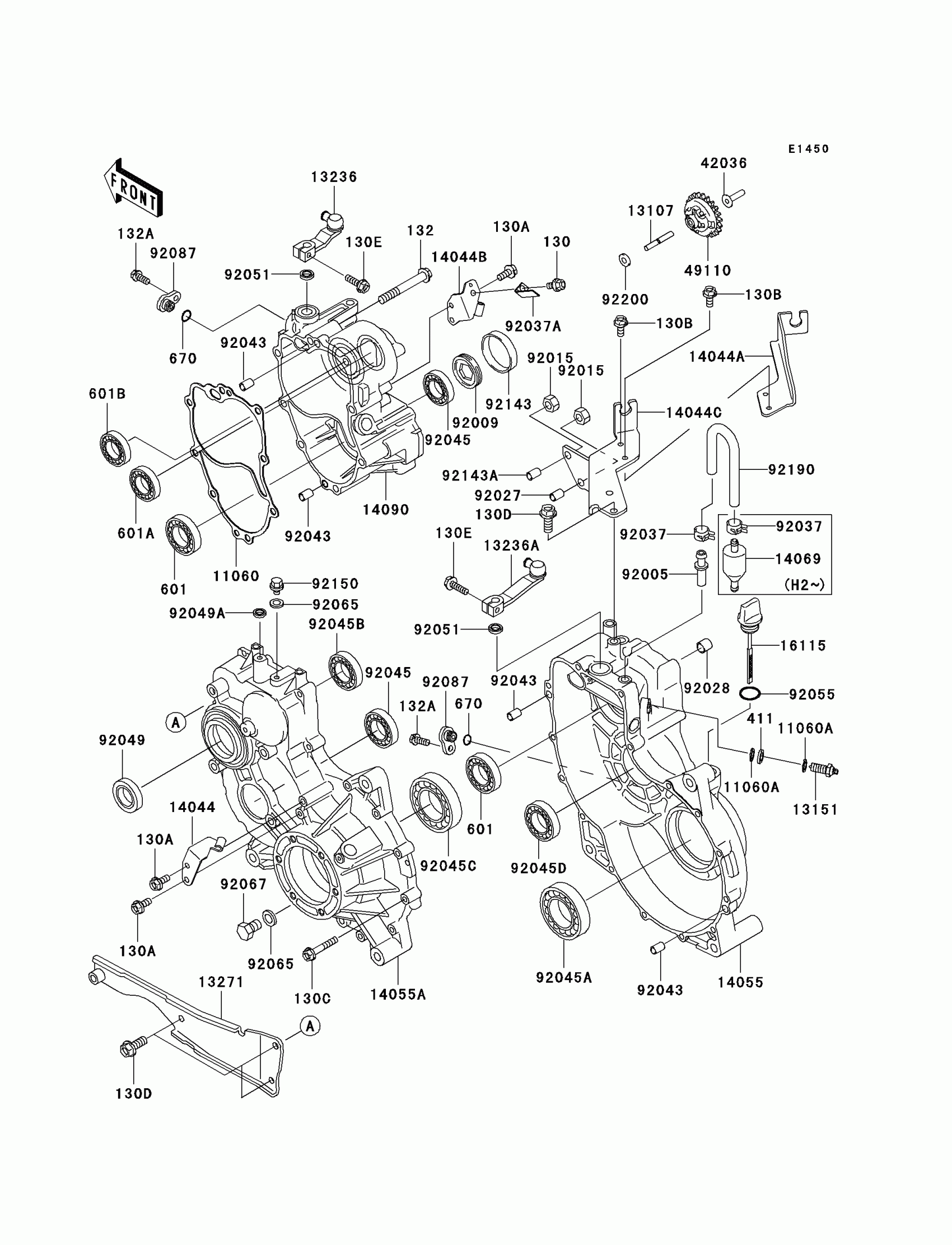

Kawasaki Mule 3010 4x4 Advantage Classic Gear Box Diagram
#
11060
GASKET,GEAR CASE COVER
11060-1310
$17.10
11060A
GASKET
11060-1966
$2.24
13107
SHAFT
13107-2235
$5.51
13151
SWITCH-COMP
13151-1093
$51.28
13236
LEVER-COMP
13236-1363
$50.49
13236A
LEVER-COMP
13236-1372
$60.09
13271
PLATE
13271-1604
$43.42
14044
HOLDER-CABLE
14044-1065
Unavailable
14044A
HOLDER-CABLE,HI/LOW
14044-1075
$33.64
14044B
HOLDER-CABLE
14044-1076
$15.04
14044C
HOLDER-CABLE
14044-1098
$56.44
14055
CASE-GEAR,RH
14055-1110
$254.40
14055A
CASE-GEAR,LH
14055-1158
$281.37
14090
COVER,GEAR CASE,HI/LOW
14090-1238
$237.38
16115
CAP-OIL FILLER
16115-1060
$12.18
42036
SLEEVE
42036-2060
$3.36
49110
GOVERNOR-ASSY
49110-1104
Unavailable
92005
FITTING,BREATHER
92005-1127
$17.17
92009
SCREW
92009-1290
$27.29
92015
NUT,8MM
92015-1432
$6.57
92027
COLLAR,8.8X12X9
92027-1568
$1.66
92028
BUSHING,23X30X13
92028-132
$38.06
92037
CLAMP,TUBE
92037-1505
$4.76
92037A
CLAMP
92037-1680
$2.61
92043
PIN,6.2X8X14
92043-1263
$0.43
92045
BEARING-BALL,TMB304CCM
92045-1142
$40.43
92045A
BEARING-BALL
92045-1162
$52.37
92045B
BEARING-BALL,62/28
92045-1207
$19.03
92045C
BEARING-BALL,6210CM
92045-1213
$55.61
92045D
BEARING-BALL,TMB205JR2
92045-1285
$27.65
92049
SEAL-OIL,TC28X47X7
92049-1297
$14.90
92049A
SEAL-OIL,VC-6X10X2.5
92049-2097
$2.13
92051
SEAL-OIL,TB13225.5
92051-005
$7.74
92055
RING-O,20X3
92055-2185
$1.03
92065
GASKET,10.5X16X1
92065-058
$3.96
92067
PLUG,DRAIN,10X12
92067-001
$4.41
92087
BUSHING-METER GEAR
92087-1058
$8.03
92143
COLLAR,66X70X11
92143-1120
$18.89
92143A
COLLAR,8.5X15X9
92143-1642
$5.29
130
BOLT-FLANGED
130D0610
$0.48
130A
BOLT-FLANGED,6X14
130D0614
Unavailable
130B
BOLT-FLANGED,6X14
130H0614
Unavailable
130C
BOLT,FLANGED,6X35
130H0635
$0.93
130D
BOLT-FLANGED,8X20
130H0820
$4.06
130E
BOLT-FLANGED,6X20
130T0620
$1.69
132
BOLT-FLANGED-SMALL,8X60
132H0860
$4.71
132A
BOLT-FLANGED-SMALL
132J0614
$2.33
411
WASHER-PLAIN,10MM
411B1000
$0.93
601
BEARING-BALL,#6007C3
601B6007
$27.06
601A
BEARING-BALL,#6303C3
601B6303
$8.29
601B
BEARING-BALL
601B6303U
$26.36
670
O RING,10MM
670D1510
$4.69
92150
BOLT,FLANGED,10X10
92150-1900
$7.52
92190
TUBE
92190-3807
$6.02
92200
WASHER,6.2X20X0.5
92200-2036
$1.17
