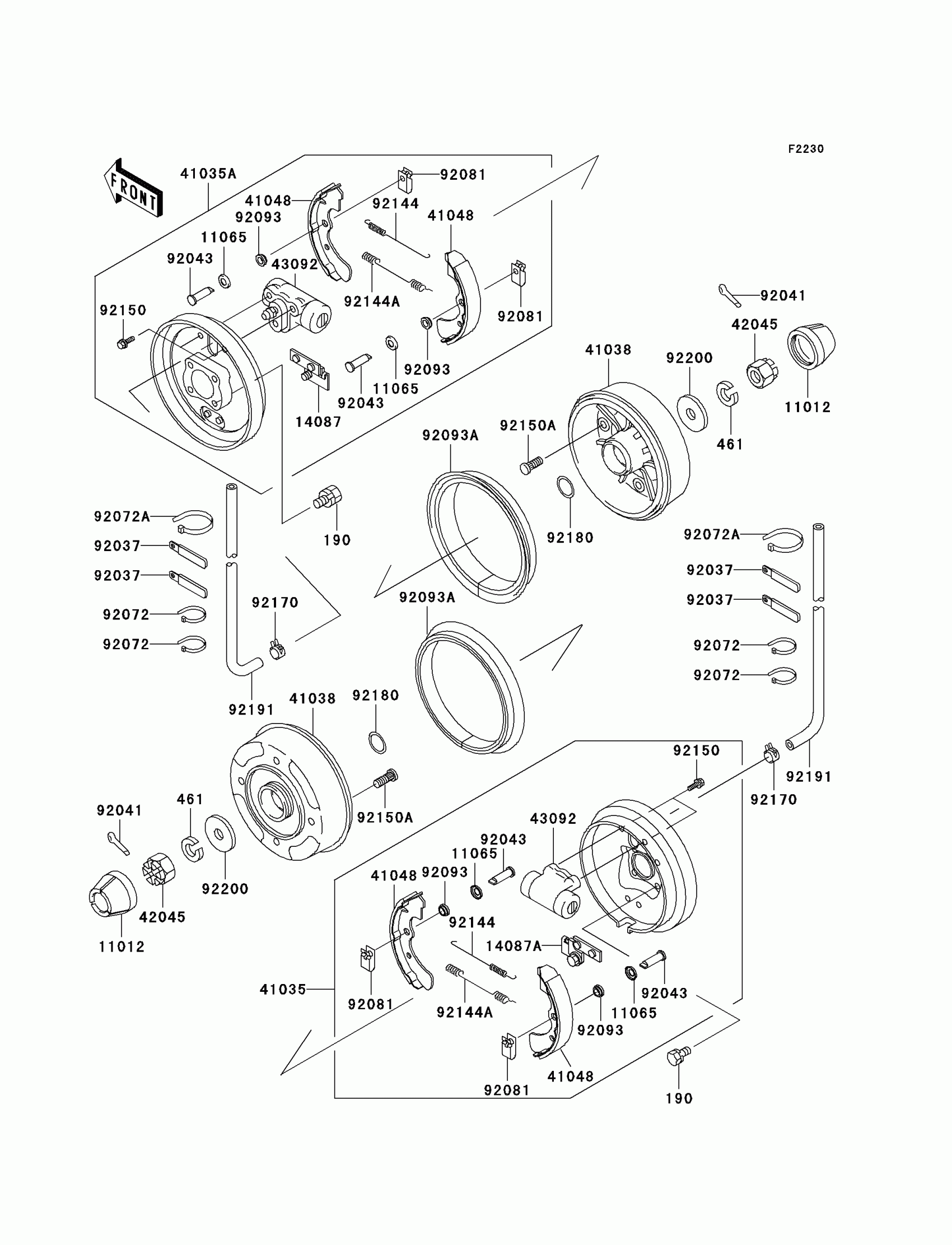

Kawasaki Mule 3010 4x4 Advantage Classic Front Hubs/Brakes Diagram

#

Description
Price

190

BOLT-UPSET-WS,10X16

190H1016

$4.15

461

WASHER-SPRING,18MM

461F1800

$2.72

11012

CAP,WHEEL

11012-1969

$5.65

11065

CAP

11065-1175

$4.87

14087

RETAINER-ASSY,RH

14087-1001

$24.46

14087A

RETAINER-ASSY,LH

14087-1002

$24.46

41035

PANEL-ASSY-BRAKE,FR,LH

41035-1516

$494.09

41035A

PANEL-ASSY-BRAKE,FR,RH

41035-1517

$494.09

41038

DRUM,FRONT BRAKE

41038-1345

$324.79

41048

SHOE-BRAKE

41048-1134

$19.99

42045

NUT,CASTLE,18MM

42045-018

$9.23

43092

CYLINDER,FRONT BRAKE PANEL

43092-1054

$153.34

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92041

COTTER,4.0X35

92041-1053

$3.92

92043

PIN

92043-1636

$4.20

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=149

92072-031

$5.00

92081

SPRING,SHOE CLAMP

92081-1904

$8.03

92093

SEAL

92093-1532

$8.60

92093A

SEAL,BS184.8X13.5ZS

92093-1543

$112.98

92144

SPRING,BRAKE

92144-1300

$8.30

92144A

SPRING,BRAKE

92144-1301

$8.30

92150

BOLT,FLANGED,6X12

92150-1166

$4.39

92150A

BOLT

92150-1366

$8.05

92170

CLAMP

92170-2042

$1.30

92180

SHIM,25.2X32.5X0.6

92180-1353

$2.26

92191

TUBE,4.7X9.5X1480

92191-1615

$7.82

92200

WASHER,18.5X52X4.5

92200-1474

$8.10
