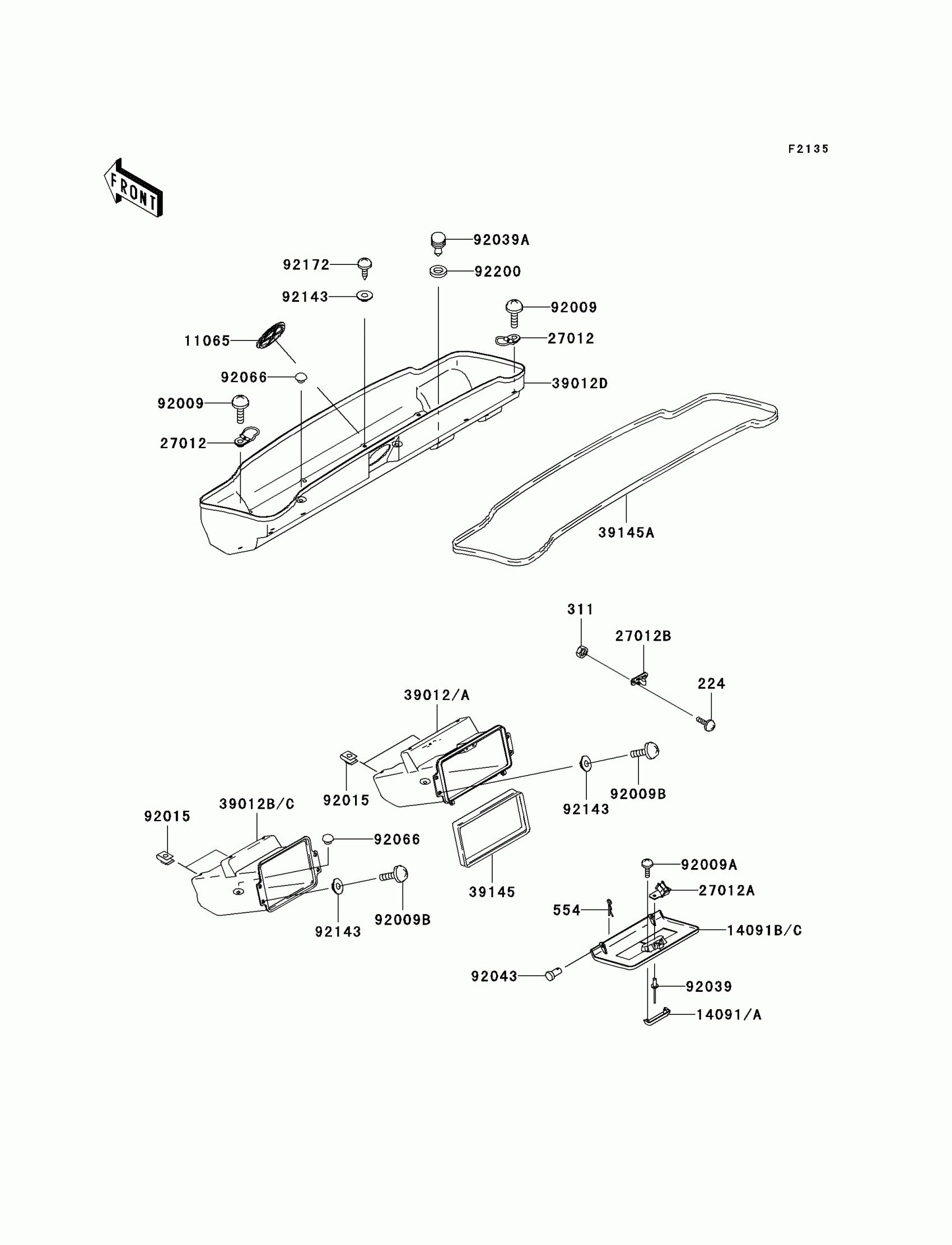

Kawasaki Mule 3010 4x4 Advantage Classic Front Box Diagram

Description

Price

224

SCREW-PAN-WP-CROS,4X12

224C0412

Unavailable

311

NUT-HEX

311C0400

$0.63

554

PIN,SNAP

554A0600

Unavailable

11065

CAP,F.BLACK

11065-1053-6Z

$6.40

14091

COVER,GRAY

14091-1228-AZ

Unavailable

14091B

COVER,CONTROL PANEL,GRAY

14091-1399-AZ

Unavailable

27012

HOOK

27012-1577

$13.71

27012A

HOOK

27012-1607

$5.91

27012B

HOOK

27012-1612

$2.99

39012

CASE-STORAGE,RH,GRAY

39012-1061-AZ

$42.98

39012B

CASE-STORAGE,LH,GRAY

39012-1062-AZ

$44.53

39012D

CASE-STORAGE,CNT

39012-1066

$91.22

39145

TRIM-SEAL,L=774

39145-1130

$21.31

39145A

TRIM-SEAL,L=2805

39145-1132

$62.41

92009

SCREW,6X22,BLACK

92009-1256

$1.96

92009A

SCREW,TAPPING,4X12

92009-1444

$2.23

92009B

SCREW,6X16

92009-1621

Unavailable

92015

NUT,CLAMP,6MM

92015-1678

$4.18

92039

RIVET

92039-1041

$2.76

92039A

RIVET

92039-1229

$0.80

92043

PIN,6X13

92043-1627

Unavailable

92066

PLUG

92066-1485

$1.74

92143

COLLAR

92143-1087

$2.98

92172

SCREW,TAPPING,6X12

92172-0003

$2.29

92200

WASHER,8.5X26X0.8

92200-1567

$2.00
