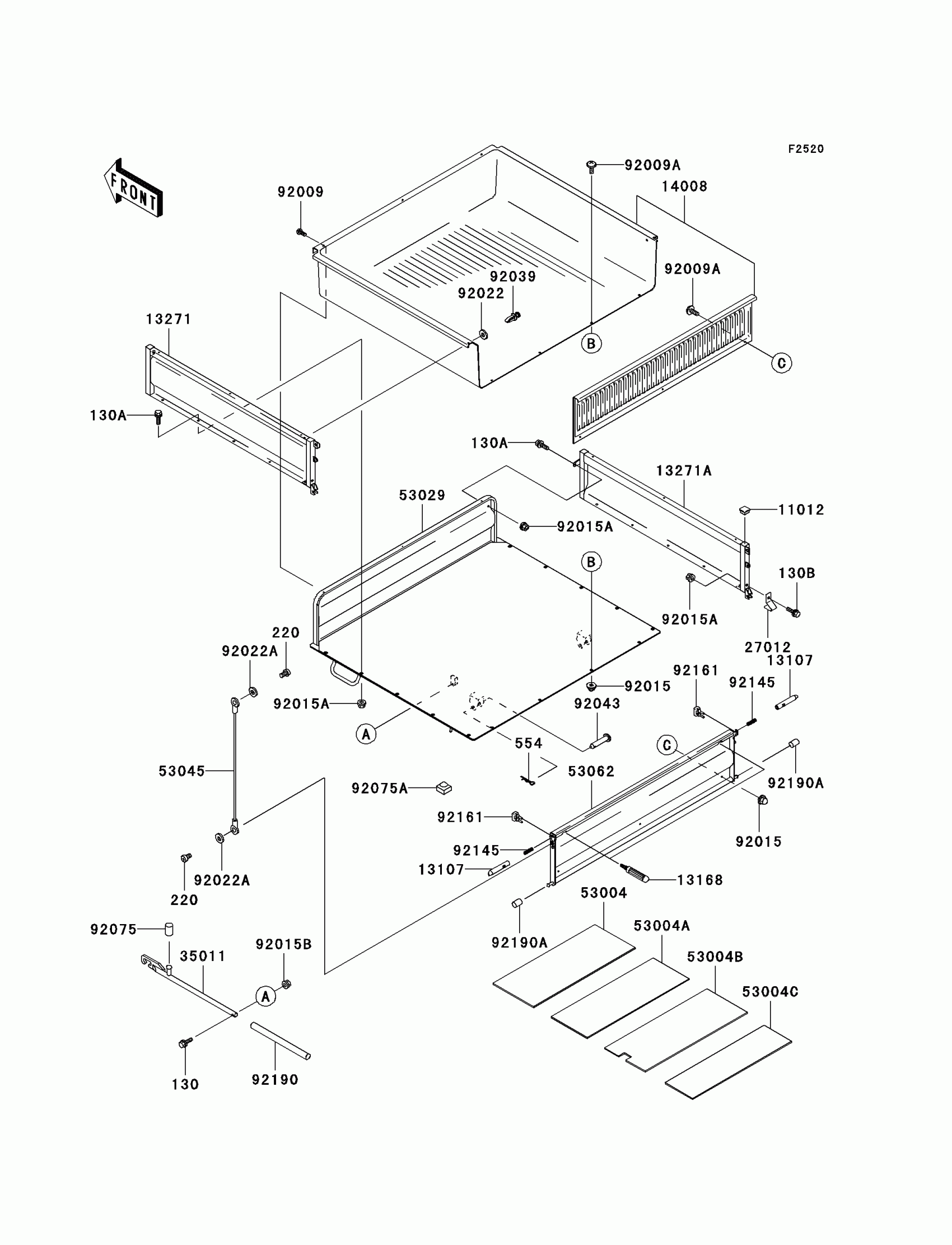

Kawasaki Mule 3010 4x4 Advantage Classic Carrier(s)(H1) Diagram

#

Description
Price

130

BOLT-FLANGED,6X30

130H0630

Unavailable

130A

BOLT-FLANGED,8X20

130J0820

Unavailable

130B

BOLT-FLANGED,8X50

130J0850

Unavailable

220

SCREW-PAN-CROSS,6X10

220F0610

$1.33

554

PIN-SNAP,12MM

554A1200

Unavailable

11012

CAP

11012-1784

$4.74

13107

SHAFT

13107-0001

$78.09

13168

LEVER

13168-7501

$18.48

13271

PLATE,CARRIER,SIDE,LH,CAMOUFLA

13271-0091-370

$230.13

13271A

PLATE,CARRIER,SIDE,RH,CAMOUFLA

13271-0092-370

$230.13

14008

LINER

14008-0001

Unavailable

27012

HOOK,TAIL GATE

27012-1406

$4.81

35011

STAY,CARRIER STOPPER

35011-1648

$29.46

53004

MAT

53004-1157

$130.17

53004A

MAT

53004-1158

$124.25

53004B

MAT

53004-1159

$118.64

53004C

MAT

53004-1160

$109.29

53029

CARRIER,BLACK

53029-0002-10

Unavailable

53045

HOOK-ASSY,TAIL GATE

53045-0002

$26.21

53062

GATE-TAIL,CAMOUFLAGE

53062-0002-370

$397.46

92009

SCREW,6X12

92009-1480

$2.23

92009A

SCREW,6X14

92009-1662

$2.99

92015

NUT,LOCK 6MM

92015-1262

$4.85

92015A

NUT,FLANGED,8MM

92015-1408

$4.07

92015B

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$3.29

92022A

WASHER,7X18X1.2

92022-1545

$0.84

92039

RIVET

92039-1229

$0.80

92043

PIN,12X65

92043-1428

$7.69

92075

DAMPER

92075-1817

$4.67

92075A

DAMPER

92075-1882

$6.18

92145

SPRING,TENSIONER

92145-1215

$3.52

92161

DAMPER

92161-0004

$3.18

92190

TUBE,13X16X200

92190-1401

$4.63

92190A

TUBE,8X10X15

92190-1467

$3.51
