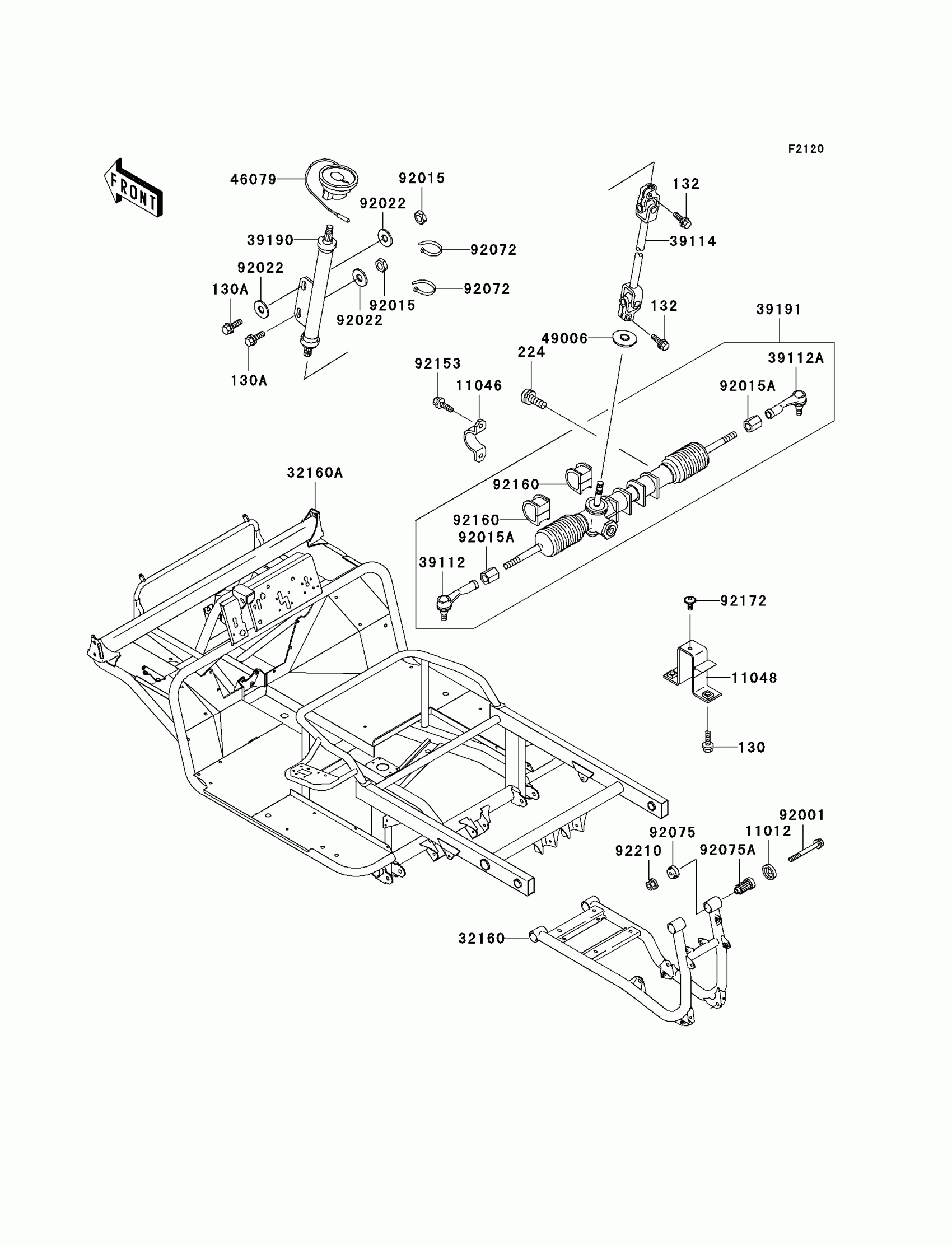

Kawasaki Mule 3010 4x4 Advantage Classic Frame(H1) Diagram
#
Description
Price
130
BOLT-FLANGED,8X20
130J0820
$0.83
130A
BOLT-FLANGED,10X30
130J1030
$6.10
132
BOLT-FLANGED-SMALL,8X25
132J0825
$3.84
224
SCREW-PAN-WP-CROS
224B0508
$0.67
11012
CAP,ENGINE BRACKET
11012-1228
$7.61
11046
BRACKET,STEERING GEAR
11046-1858
Unavailable
11048
BRACKET,REAR FRAME
11048-1245
$26.09
32160
FRAME-COMP,RR
32160-7506
Unavailable
32160A
Not Available For This Vehicle | Includes 7 to 14
n/a
Unavailable
39112
RODEND-TIE,STEERING GEAR,LH
39112-1068
$96.05
39112A
RODEND-TIE,STEERING GEAR,RH
39112-1069
$96.05
39114
SHAFT-COMP-STRG
39114-1070
$319.63
39190
SHAFT-ASSY-STEERING
39190-1006
$231.78
39191
GEAR-ASSY-STEERING
39191-1007
$1,066.48
46079
CONTACT,HORN SWITCH
46079-1063
$86.71
49006
BOOT,STEERING SHAFT,LWR
49006-1255
$34.90
92001
BOLT,FLANGED,10X85
92001-1619
$8.10
92015
NUT,LOCK,10MM,BLACK
92015-1189
$7.34
92015A
NUT
92015-1864
$14.39
92022
WASHER,10.5X26X2.3,BLACK
92022-1396
$3.21
92072
BAND,L=188
92072-1239
$1.73
92075
DAMPER,ENGINE MOUNT,SIDE
92075-1274
$17.60
92075A
DAMPER,ENGINE MOUNT,MAIN
92075-1377
$30.82
92153
BOLT,SOCKET,10X23
92153-1269
$2.80
92160
DAMPER,STEERING GEAR
92160-1084
$31.96
92172
SCREW,6X14
92172-0004
$2.80
92210
NUT,LOCK,FLANGED,10MM
92210-1081
$12.35
