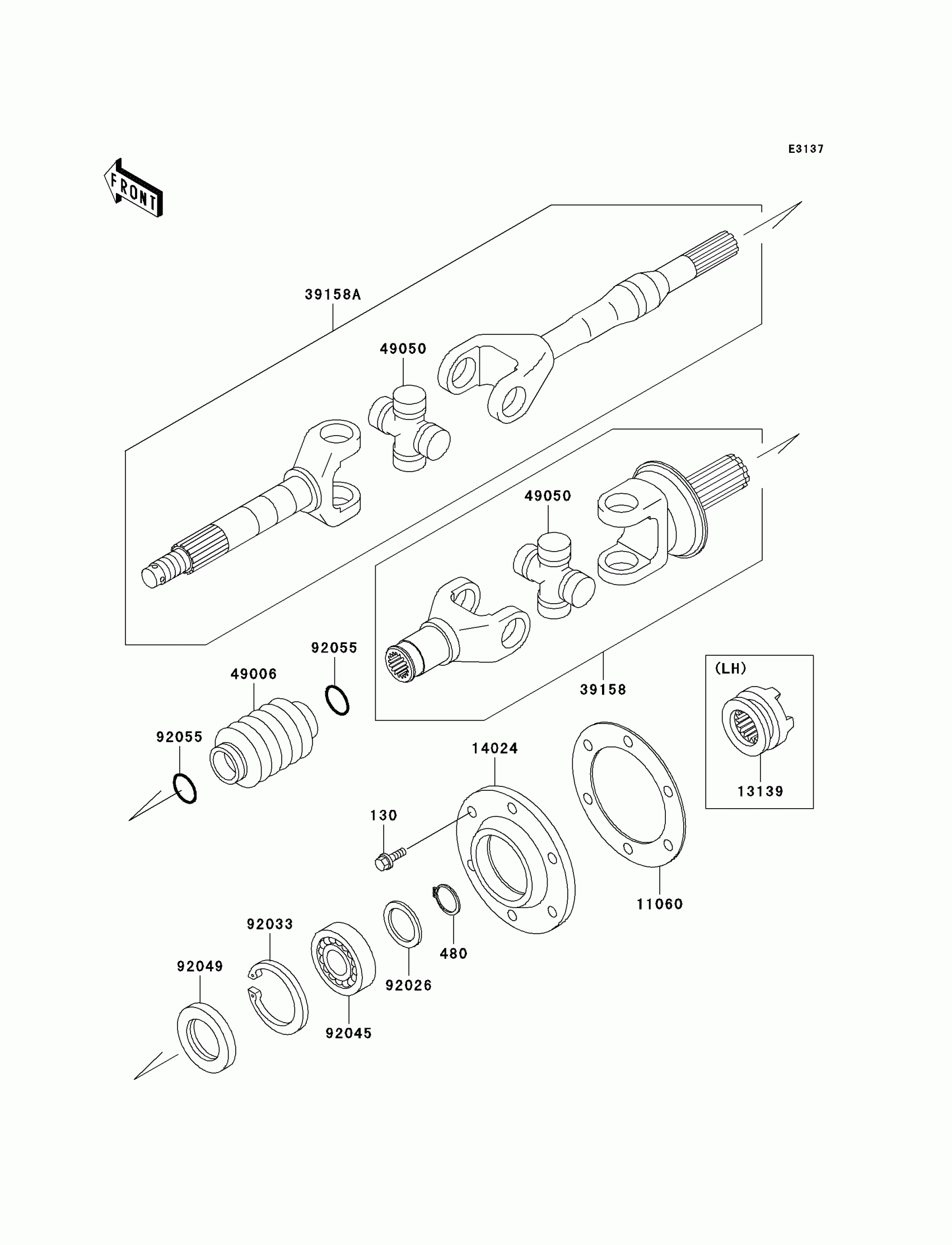

Kawasaki Mule 3010 4x4 Advantage Classic Drive Shaft-Rear(H1) Diagram

Description

Price

130

BOLT-FLANGED,8X25

130H0825

Unavailable

480

CIRCLIP-TYPE-C,28MM

480J2800

$3.58

11060

GASKET,DRIVESHAFT COVER

11060-1251

$9.73

13139

SHIFTER

13139-1078

Unavailable

14024

COVER,DRIVESHAFT

14024-1560

$272.82

39158

SHAFT-ASSY-DRIVE,INSIDE

39158-1105

$504.08

39158A

SHAFT-ASSY-DRIVE

39158-1109

$405.01

49006

BOOT,DRIVE SHAFT

49006-1257

$39.12

49050

SPIDER

49050-1060

Unavailable

92026

SPACER,28.1X38X2.6

92026-1489

$3.55

92033

RING-SNAP,55MM

92033-1274

$7.18

92045

BEARING-BALL,6006

92045-1208

$17.90

92049

SEAL-OIL,TC35X55X8

92049-1298

$6.85

92055

RING-O,19.5X3.0

92055-1451

$3.57
