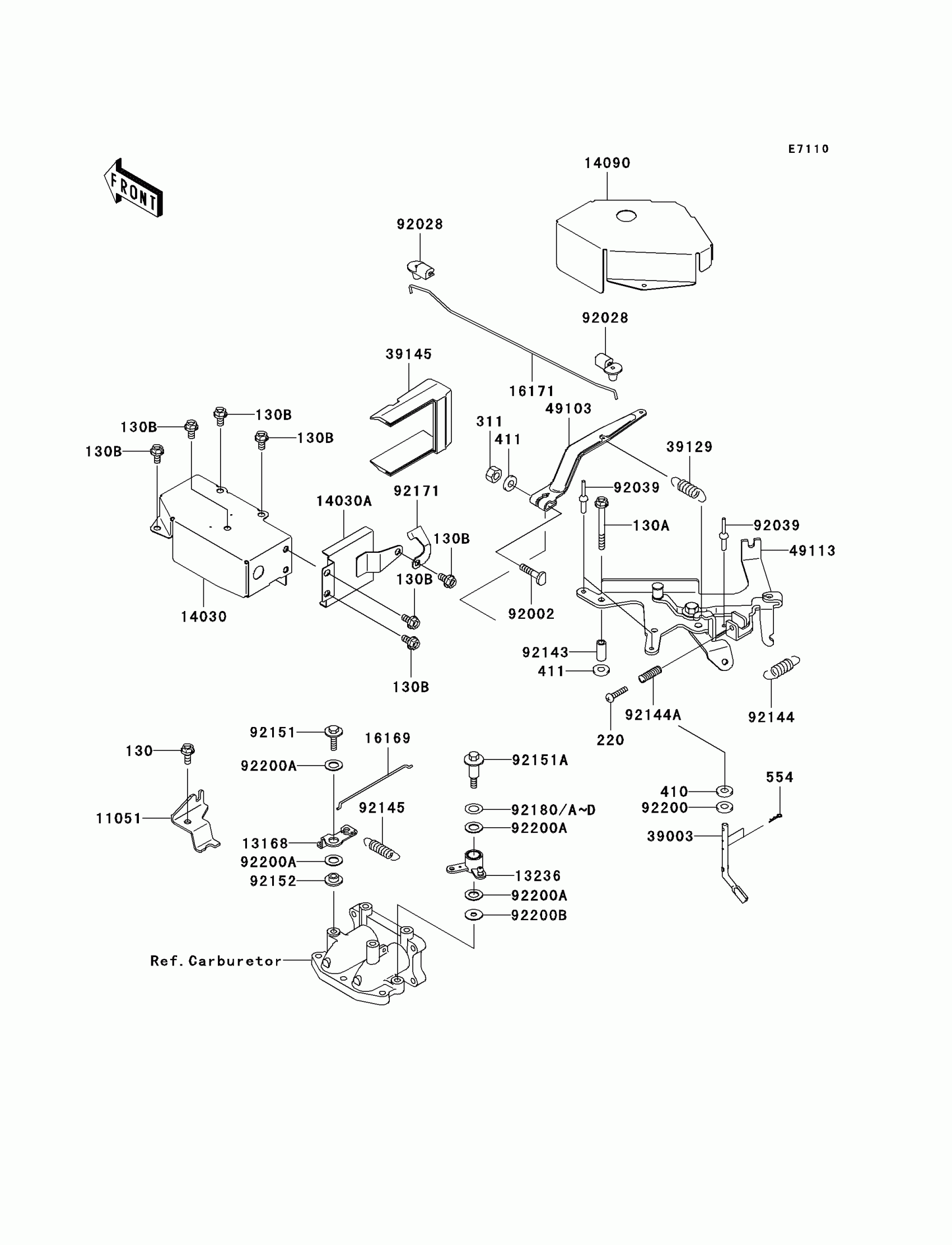

Find the part on the Control diagram for your 2007 Kawasaki Mule 3010 4x4 Advantage Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 3010 4x4 Advantage Classic Control Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT,FLANGED,6X14

130G0614

1
Out of stock

130A

BOLT-FLANGED,6X55

130G0655

1
Out of stock

130B

BOLT-FLANGED,6X12

130J0612

1
Out of stock

220

SCREW PAN HEAD 5X22

220B0522

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

554

PIN,SNAP

554A0600

1
Out of stock

11051

BRACKET

11051-2100

1
Out of stock

13168

LEVER

13168-2460

1
Out of stock

13236

LEVER-COMP

13236-2154

1
Out of stock

14030

COVER-CARBURETOR

14030-1059

1
Out of stock

14030A

COVER-CARBURETOR

14030-1060

1
Out of stock

14090

COVER,CONTROL PANEL

14090-1335

1

$17.86

In stock

16169

LINK-CHOKE

16169-2140

1
Out of stock

16171

LINK

16171-1061

1
Out of stock

39003

ARM-PIVOT,GOVERNOR

39003-1053

1

$24.31

In stock

39129

SPRING-GOVERNOR

39129-1011

1

$7.10

In stock

39145

TRIM-SEAL

39145-1128

1

$12.59

In stock

49103

ARM-GOVERNOR

49103-1055

1
Out of stock

49113

PANEL-COMP-CONTROL

49113-1056

1
Out of stock

92002

BOLT,6X28

92002-2269

1
Out of stock

92028

BUSHING,GOVERNOR

92028-2156

1
Out of stock

92039

RIVET,BLIND,4.0X9.2

92039-1163

1
Out of stock

92143

COLLAR,6.8X10X42

92143-1072

1
Out of stock

92144

SPRING,CONTROL

92144-1410

1
Out of stock

92144A

SPRING

92144-2266

1
Out of stock

92145

SPRING

92145-2088

1
Out of stock

92151

BOLT

92151-2139

1
Out of stock

92151A

BOLT

92151-2140

1
Out of stock

92152

COLLAR

92152-2069

1
Out of stock

92171

CLAMP

92171-1350

1
Out of stock

92180

SHIM,T=0.5

92180-2055

—
Out of stock

92180A

SHIM,T=0.4

92180-2056

—
Out of stock

92180B

SHIM,T=0.3

92180-2057

—
Out of stock

92180C

SHIM,T=0.6

92180-2060

—
Out of stock

92180D

SHIM,T=0.7

92180-2061

—
Out of stock

92200

WASHER,6.5X11.5X2.0

92200-2029

1
Out of stock

92200A

WASHER,10.1X18X1.0

92200-2124

1
Out of stock

92200B

WASHER,6.1X18X1.0

92200-2125

1
Out of stock
