2007 Kawasaki Mule 3010 4x4 Advantage Classic Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2007 Kawasaki Mule 3010 4x4 Advantage Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

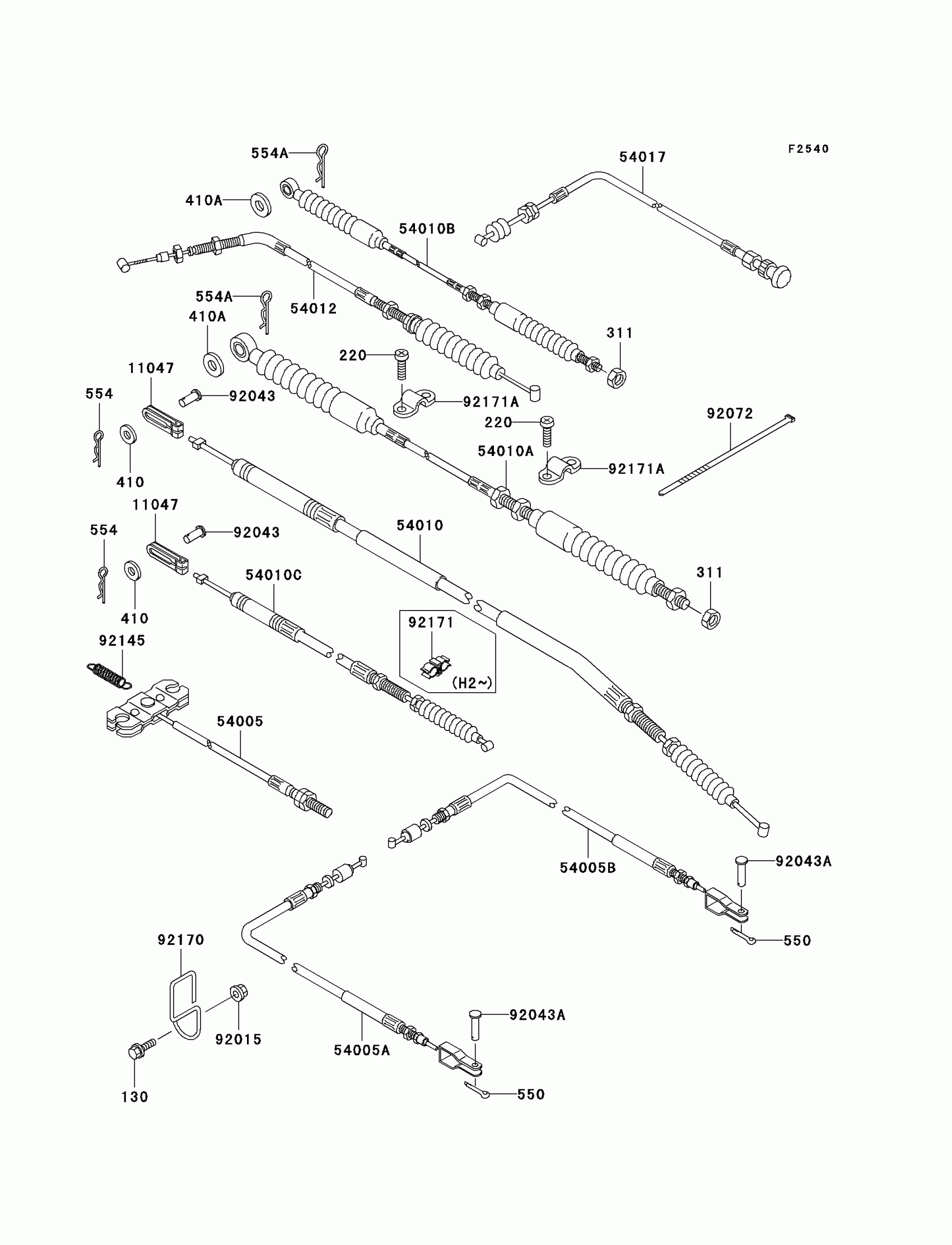

2007 Kawasaki Mule 3010 4x4 Advantage Classic Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X20

130D0620

1
Out of stock

220

SCREW-PAN-CROS,5X14

220D0514

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

410A

W-PLAIN-S,8MM

410E0800

1
Out of stock

550

PIN-COTTER,2.0X22

550D2022

1
Out of stock

554

PIN,SNAP

554A0600

1
Out of stock

554A

PIN-SNAP,8MM

554A0800

1
Out of stock

11047

BRACKET,DIFF LOCK

11047-1043

1
Out of stock

54005

CABLE-BRAKE,PARKING,FR

54005-1198

1
Out of stock

54005A

CABLE-BRAKE,PARKING,RR,LH

54005-1209

1
Out of stock

54005B

CABLE-BRAKE,PARKING,RR,RH

54005-1210

1
Out of stock

54010

CABLE,DIFF LOCK

54010-1120

1
Out of stock

54010A

CABLE,SHIFT CONTROL

54010-1121

1
Out of stock

54010B

CABLE,HI-LOW

54010-1124

1
Out of stock

54010C

CABLE,2-4WD

54010-1126

1
Out of stock

54012

CABLE-THROTTLE

54012-1637

1

$42.98

In stock

54017

CABLE-STARTER

54017-1208

1

$47.80

In stock

92015

NUT,LOCK,FLANGED,6MM

92015-1675

1
Out of stock

92043

PIN,6X11

92043-092

1
Out of stock

92043A

PIN

92043-1039

1
Out of stock

92072

BAND,L=188

92072-1239

1
Out of stock

92145

SPRING

92145-7506

1
Out of stock

92170

CLAMP,CABLE

92170-1372

1

$9.42

In stock

92171A

CLAMP

92171-1203

1
Out of stock
