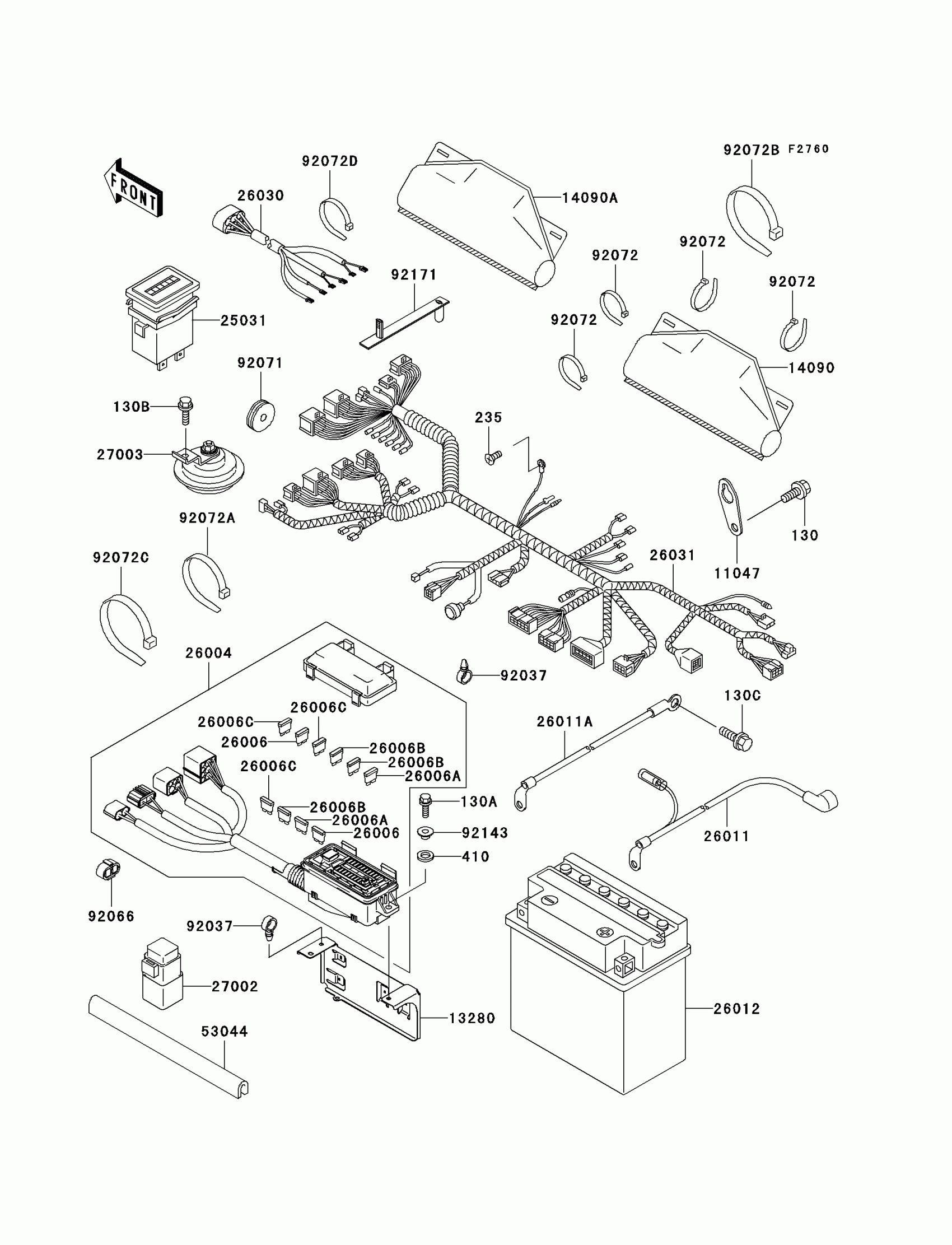

Kawasaki Mule 3010 4x4 Advantage Classic Chassis Electrical Equipment(H1) Diagram

Description

Price

130

BOLT-FLANGED,8X16

130G0816

$1.10

130A

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

130B

BOLT-FLANGED

130J0620

$0.43

130C

BOLT-FLANGED,8X12

130J0812

$0.67

235

SCREW-PAN-WP-CROS,6X10

235B0610

$3.51

410

WASHER-PLAIN-SMALL,10MM,BLACK

410F1000

$4.01

11047

BRACKET,F.BLACK

11047-2056-9H

$8.44

13280

HOLDER

13280-1220

$38.20

14090

COVER,COUPLER

14090-1331

$8.51

14090A

COVER,COUPLER

14090-1611

$8.51

25031

METER-ASSY,HOUR

25031-7505

$111.37

26004

FUSE-ASSY

26004-1120

$326.56

26006

FUSE,MINI BLADE,5A,TAN

26006-1077

$4.87

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26006B

FUSE,MINI BLADE,20A,YELLOW

26006-1079

$4.87

26006C

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,BATTERY(+)

26011-1780

$36.84

26011A

WIRE-LEAD,BATTERY(-)

26011-1787

$16.65

26012

BATTERY,YTX20L-BS,12V 18AH

26012-3728

$148.91

26030

HARNESS

26030-2322

$116.35

26031

HARNESS,MAIN

26031-7503

$251.31

27002

RELAY-ASSY

27002-1068

$68.42

27003

HORN

27003-1276

$44.08

53044

TRIM

53044-1137

$10.65

92037

CLAMP,HOSE

92037-1827

$7.45

92066

PLUG

92066-1539

$9.62

92071

GROMMET

92071-1136

$7.38

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=202

92072-1195

$1.56

92072B

BAND,L=365

92072-1197

$7.84

92072C

BAND,L=250

92072-1237

$2.14

92072D

BAND,L=188

92072-1239

$1.73

92143

COLLAR

92143-1057

$5.00

92171

CLAMP

92171-1365

$4.20
