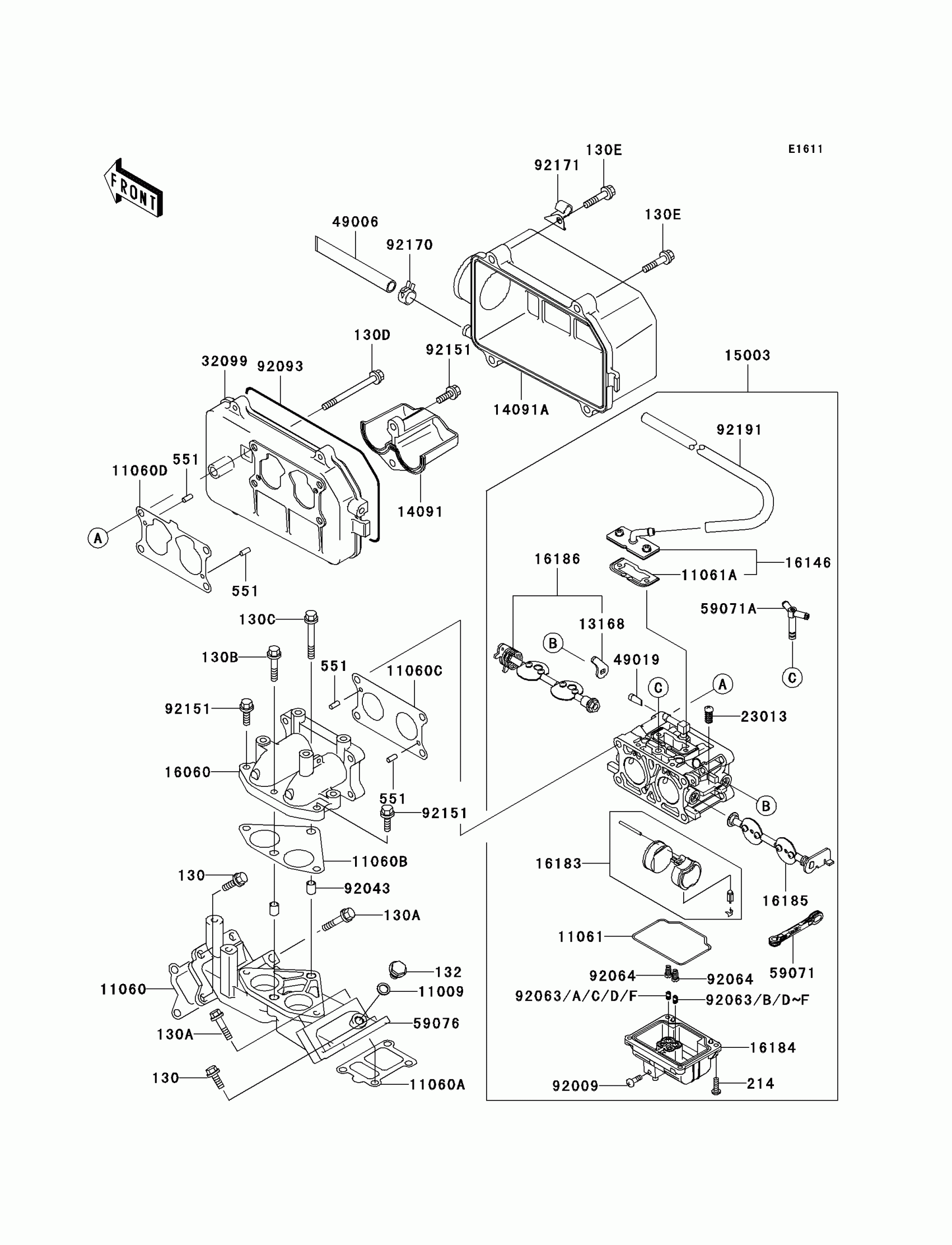

Kawasaki Mule 3010 4x4 Advantage Classic Carburetor Diagram
#
11009
GASKET
11009-3028
$0.70
11060
GASKET,INTAKE MANIFOLD
11060-2087
$3.36
11060A
GASKET,INTAKE MANIFOLD
11060-2088
$2.83
11060B
GASKET
11060-2477
$5.69
11060C
GASKET
11060-2478
$4.34
11060D
GASKET
11060-2479
$4.69
11061
GASKET,CHAMBER
11061-2090
$10.36
11061A
GASKET,COVER
11061-2091
$8.04
13168
LEVER
13168-2473
$54.86
14091
COVER
14091-2067
$9.18
14091A
COVER
14091-2068
$38.20
15003
CARBURETOR-ASSY
15003-2766
$521.46
16060
PIPE-INTAKE
16060-2195
$55.00
16146
COVER-ASSY
16146-2229
$16.31
16183
FLOAT-ASSY
16183-2006
$46.37
16184
CHAMBER-ASSY-FLOAT
16184-2006
$93.75
16185
VALVE-ASSY-THROTTLE
16185-2038
$105.95
16186
VALVE-ASSY-CHOKE
16186-2037
$88.97
23013
SCREW-ASSY
23013-2061
$7.20
32099
CASE
32099-2374
$54.64
49006
BOOT
49006-2053
Unavailable
49019
FILTER-FUEL
49019-1093
$14.79
59071
JOINT
59071-2138
$20.51
59071A
JOINT
59071-2139
$12.37
59076
MANIFOLD-INTAKE
59076-2069
$52.96
92009
SCREW,DRAIN
92009-2015
$4.94
92043
PIN,DOWEL,8X10
92043-1302
$1.03
92063
JET-MAIN,#86.3
92063-2363
Unavailable
92063A
JET-MAIN,#85
92063-2376
Unavailable
92063B
JET-MAIN,#92.5
92063-2402
$11.33
92063C
JET-MAIN,#90
92063-2403
$17.63
92063D
JET-MAIN,#87.5
92063-2405
Unavailable
92063E
JET-MAIN,#91.3
92063-2407
Unavailable
92063F
JET-MAIN,#88.8
92063-2413
Unavailable
92064
JET-PILOT
92064-2132
$13.86
130
BOLT,FLANGED,6X20
130B0620
$1.69
130A
BOLT-FLANGED,6X45
130B0645
$0.86
130B
BOLT-FLANGED,6X30
130G0630
$1.42
130C
BOLT-FLANGED,6X40
130G0640
$1.17
130D
BOLT-FLANGED
130G0680
$1.48
130E
BOLT-FLANGED,6X30,BLACK
130J0630
$4.04
132
BOLT-FLANGED-SMALL
132L0812
$1.76
214
SCREW-PAN+-
214B0414
$0.70
551
PIN-DOWEL,4X10
551A0410
$0.65
92093
SEAL
92093-2115
$3.35
92151
BOLT,6X20
92151-2138
$1.23
92170
CLAMP
92170-2082
$0.84
92171
CLAMP
92171-2066
$5.50
92191
TUBE
92191-2140
$30.81
