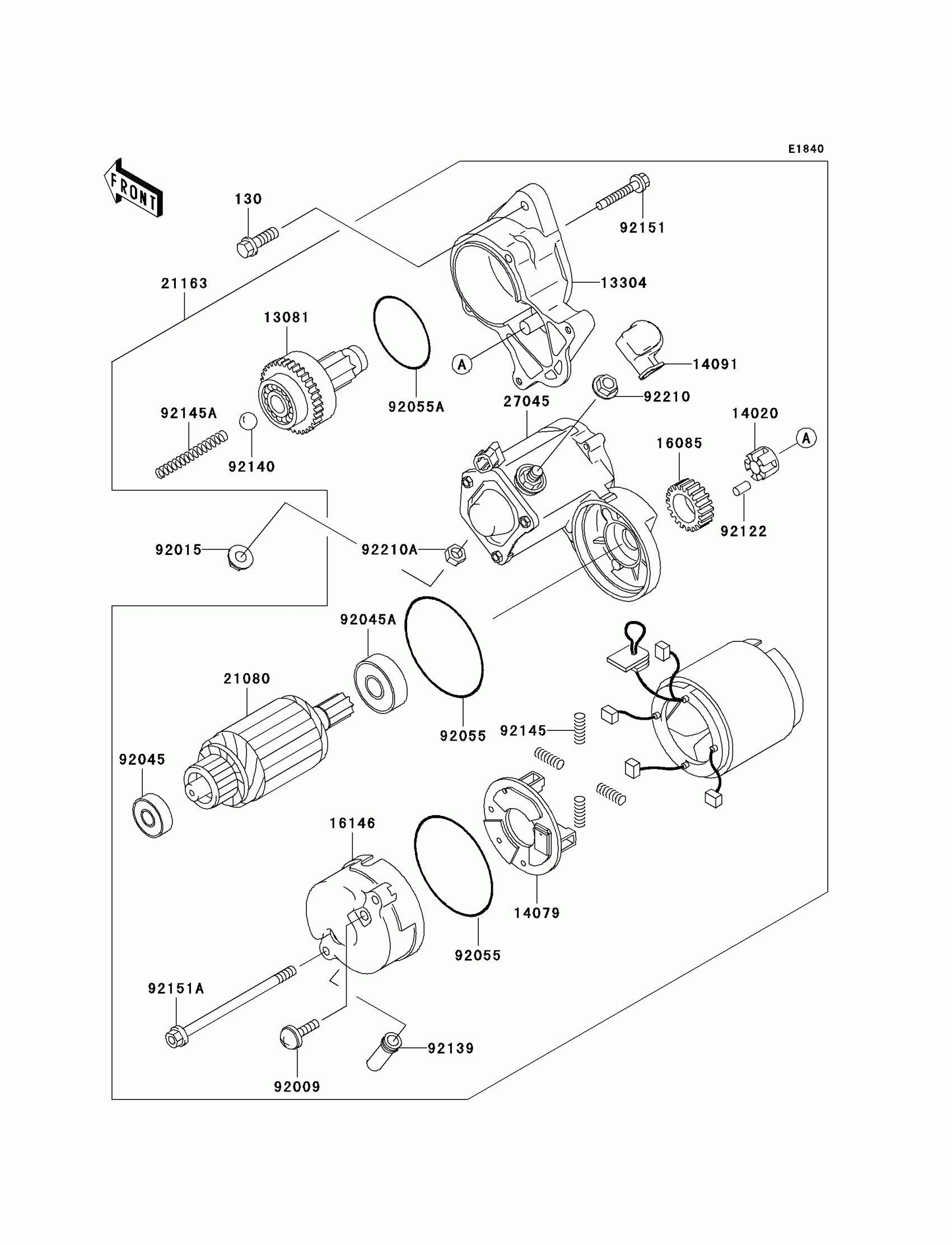

Kawasaki Mule 3000 Starter Motor Diagram

#

Description
Price

130

BOLT-FLANGED,8X30

130P0830

$1.08

13081

CLUTCH-ASSY

13081-2231

$130.94

13304

HOUSING-ASSY

13304-2201

$302.87

14020

RETAINER

14020-2112

$11.16

14079

HOLDER-ASSY

14079-2064

$82.67

14091

COVER

14091-2080

$6.12

16085

GEAR

16085-2055

$40.82

16146

COVER-ASSY

16146-2228

$109.74

21080

ARMATURE

21080-2070

$419.40

21163

STARTER-ELECTRIC

21163-2124

Unavailable

27045

SWITCH-ASSY

27045-2018

$469.27

92009

SCREW

92009-2455

$2.80

92015

NUT,8MM

92015-1143

$0.65

92045

BEARING-BALL,60102RKMDSH2C3

92045-2257

$27.70

92045A

BEARING-BALL

92045-2258

$33.65

92055

RING-O

92055-2199

$7.63

92055A

RING-O

92055-2200

$5.00

92122

ROLLER

92122-2057

$2.41

92139

BUSHING

92139-2051

$8.49

92140

BALL

92140-2061

$2.39

92145

SPRING

92145-2096

$3.69

92145A

SPRING

92145-2097

$3.69

92151

BOLT

92151-2167

$2.41

92151A

BOLT

92151-2168

$13.21

92210

NUT

92210-2084

$6.18

92210A

NUT

92210-2085

$4.26
