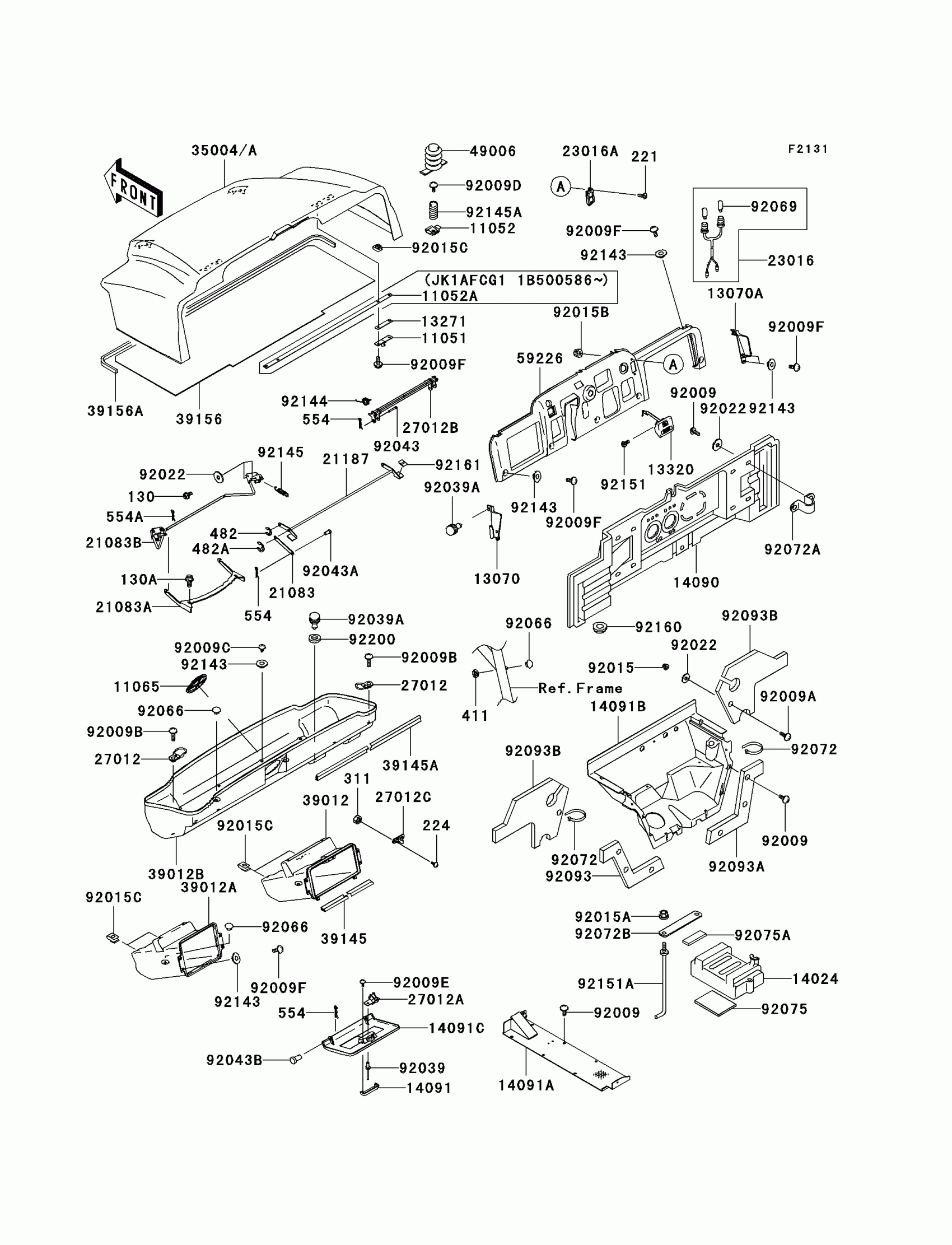

Kawasaki Mule 3000 Frame Fittings(KAF620-G1) Diagram
#
11051
BRACKET
11051-1756
$6.31
11052
BRACKET
11052-1258
$8.26
11052A
BRACKET
11052-1369
$15.11
11065
CAP,F.BLACK
11065-1053-6Z
$8.40
13070
GUIDE,LH
13070-1367
$28.39
13070A
GUIDE,RH
13070-1368
$28.39
13271
PLATE
13271-1663
$10.35
13320
LEVER-ASSY
13320-1016
$118.91
14024
COVER,BATTERY
14024-1792
$50.39
14090
COVER,SEAT UNDER
14090-1247
$153.82
14091
COVER,GRAY
14091-1228-AZ
Unavailable
14091A
COVER,FLOOR,CNT
14091-1250
$110.20
14091B
COVER,FLOOR
14091-1378
$98.40
14091C
COVER,CONTROL PANEL,GRAY
14091-1399-AZ
Unavailable
21083
ARM
21083-1146
$2.63
21083A
ARM
21083-1163
$43.54
21083B
ARM,.
21083-1164
$122.25
21187
ARM-ASSY
21187-1085
$42.43
23016
LAMP-ASSY,INDICATOR
23016-1188
$51.85
23016A
LAMP-ASSY
23016-1189
Unavailable
27012
HOOK
27012-1577
$14.45
27012A
HOOK
27012-1607
$7.75
27012B
HOOK
27012-1608
$72.78
27012C
HOOK
27012-1612
$3.92
35004
FENDER-FRONT,H.GREEN
35004-1435-6A
$128.94
35004A
FENDER-FRONT,F.RED
35004-1435-6L
$135.08
39012
CASE-STORAGE,RH,GRAY
39012-1061-AZ
$42.21
39012A
CASE-STORAGE,LH,GRAY
39012-1062-AZ
$43.74
39012B
CASE-STORAGE,CNT
39012-1066
$89.59
39145
TRIM-SEAL,L=774
39145-1130
$22.86
39145A
TRIM-SEAL,L=2805
39145-1132
$61.40
39156
PAD
39156-1684
$129.53
39156A
PAD
39156-1685
$18.63
49006
BOOT
49006-1347
$11.85
59226
PANEL-CONTROL,GRAY
59226-1060-AZ
$144.44
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92009A
SCREW,6X18,BLACK
92009-1181
$2.80
92009B
SCREW,6X22,BLACK
92009-1256
$2.78
92009C
SCREW,TAPPING,6MM
92009-1261
$2.80
92009D
SCREW,6X14
92009-1288
$3.92
130
BOLT-FLANGED,6X12
130J0612
$2.19
130A
BOLT-FLANGED,8X16
130J0816
$1.66
221
SCREW-CSK-CROS
221C0616
Unavailable
224
SCREW-PAN-WP-CROS,4X12
224C0412
Unavailable
311
NUT-HEX
311C0400
$0.62
411
WASHER
411F1000
$3.82
482
CIRCLIP-TYPE-E,5MM
482L5000
$1.34
482A
CIRCLIP-TYPE-E
482L7000
$3.92
554
PIN,SNAP
554A0600
$0.93
554A
PIN-SNAP,8MM
554A0800
$1.26
92009E
SCREW,TAPPING,4X12
92009-1444
$3.21
92009F
SCREW,6X16
92009-1621
Unavailable
92015
NUT,FLANGED,6MM,BLACK
92015-1386
Unavailable
92015A
NUT,FLANGED,8MM
92015-1406
$4.45
92015B
NUT,LOCK,FLANGED,6MM
92015-1603
$4.69
92015C
NUT,CLAMP,6MM
92015-1678
$5.52
92022
WASHER,6.5X20X1.6,BLACK
92022-1346
$0.49
92039
RIVET
92039-1041
$3.65
92039A
RIVET
92039-1229
$1.19
92043
PIN,6X39
92043-1625
$2.48
92043A
PIN,6X9
92043-1626
$2.26
92043B
PIN,6X13
92043-1627
Unavailable
92066
PLUG
92066-1485
$2.44
92069
BULB,12V 3W,T7
92069-1020
$6.52
92072
BAND,L=365
92072-1197
$7.84
92072A
BAND
92072-1252
$11.91
92072B
BAND,L=159
92072-1399
$3.68
92075
DAMPER
92075-1076
$8.86
92075A
DAMPER
92075-1214
$4.39
92093
SEAL,FRONT FENDER,LH
92093-1293
$9.64
92093A
SEAL,FRONT FENDER,RH
92093-1294
$10.00
92093B
SEAL,LOWER COVER
92093-1295
$22.57
92143
COLLAR
92143-1087
$4.31
92144
SPRING,SEAT HOOK
92144-1174
$6.82
92145
SPRING
92145-1335
$6.34
92145A
SPRING
92145-1402
$4.55
92151
BOLT,FLANGED,5X12
92151-1305
$1.59
92151A
BOLT,BATTERY
92151-1897
$6.69
92160
DAMPER
92160-1148
$4.58
92161
DAMPER
92161-1197
$5.15
92200
WASHER,8.5X26X0.8
92200-1567
$2.86
