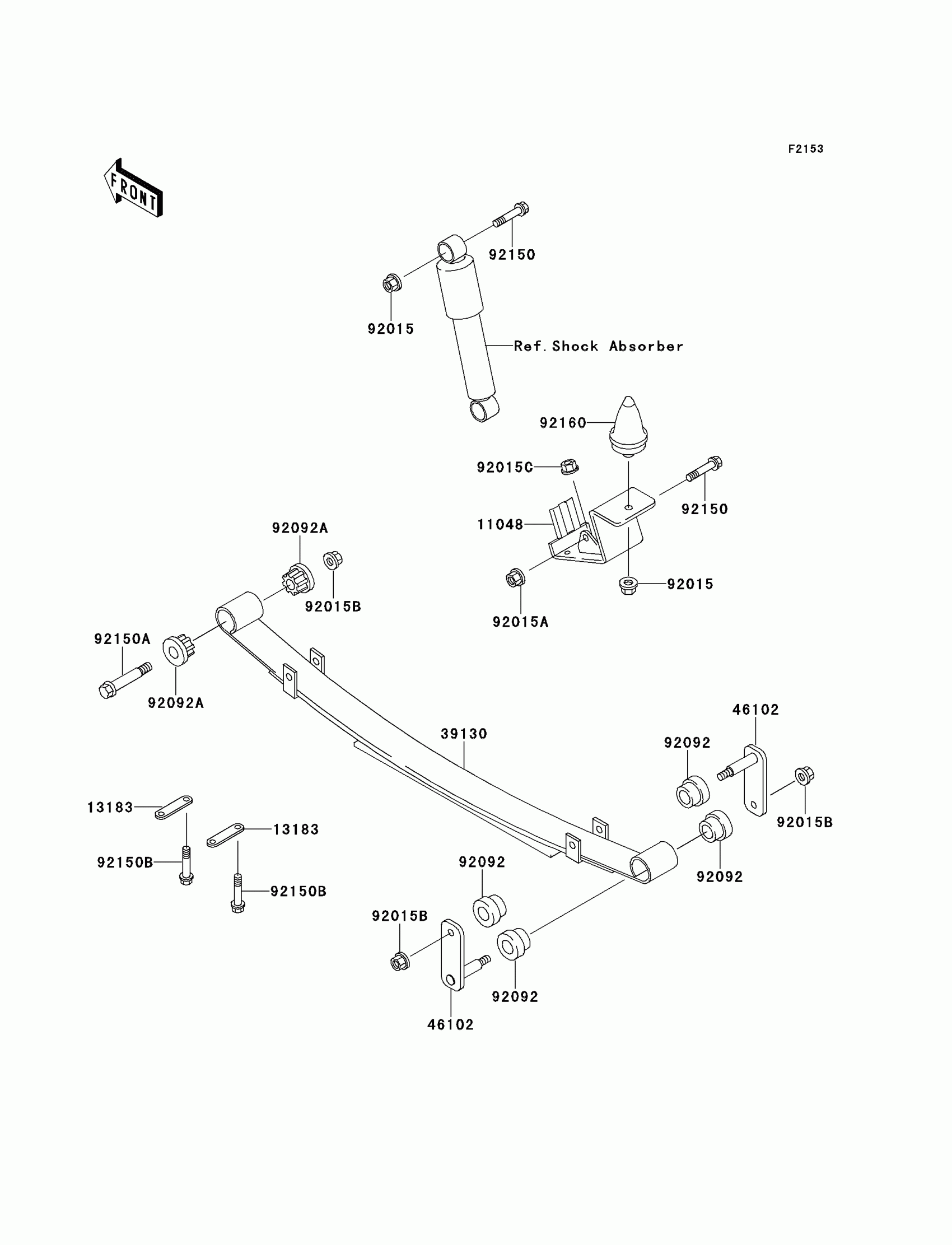

Kawasaki Mule 2520 Turf Rear Suspension Diagram

Description

Price

11048

BRACKET,LEAF SPRING

11048-1082

Unavailable

13183

PLATE,LEAF SPRING

13183-1447

$5.29

39130

SPRING-LEAF

39130-1066

$359.33

46102

ROD,LEAF SPRING,RR

46102-1338

$46.89

92015

NUT,FLANGED,10MM

92015-1335

$2.61

92015A

NUT,LOCK,10MM

92015-1597

$5.52

92015B

NUT

92015-1706

$7.45

92015C

NUT,LOCK,10MM

92015-1808

$4.31

92092

BUSHING-RUBBER

92092-1069

$7.58

92092A

BUSHING-RUBBER

92092-1070

$24.77

92150

BOLT,FLANGED,10X52

92150-1023

$5.96

92150A

BOLT,12MM

92150-1284

$19.34

92150B

BOLT,10X52

92150-1287

$9.40

92160

DAMPER,BUMP STOPPER

92160-1136

$38.36
