Rear Hubs/Brakes

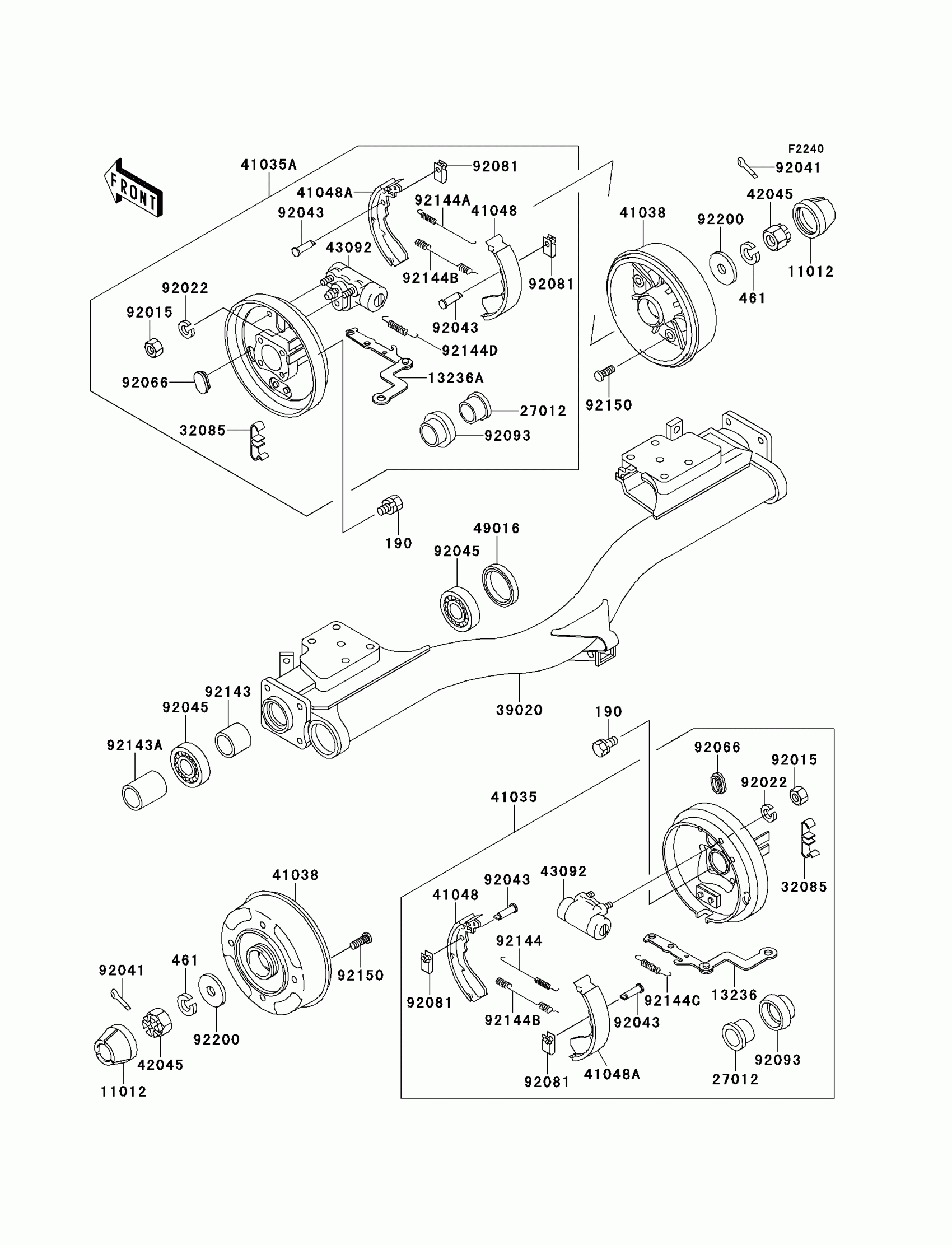

Kawasaki Mule 2520 Turf Rear Hubs/Brakes Diagram
#
Description
Price
190
BOLT-UPSET-WS,10X16
190H1016
$4.15
461
WASHER-SPRING,18MM
461F1800
$2.72
11012
CAP,WHEEL
11012-1969
$5.65
13236
LEVER-COMP,REAR BRAKE PANEL,LH
13236-1180
$39.38
13236A
LEVER-COMP,REAR BRAKE PANEL,RH
13236-1181
$39.38
27012
HOOK,REAR BRAKE LEVER
27012-1396
$21.58
32085
STOPPER,REAR BRAKE LEVER
32085-1298
$11.07
39020
BRACKET-COMP-REAR SUSP
39020-1053
$823.78
41035
PANEL-ASSY-BRAKE,RR,LH
41035-1306
$430.06
41035A
PANEL-ASSY-BRAKE,RR,RH
41035-1307
$430.06
41038
DRUM,REAR BRAKE
41038-1226
$351.27
41048
SHOE-BRAKE
41048-1078
$29.31
41048A
SHOE-BRAKE
41048-1079
$29.31
42045
NUT,CASTLE,18MM
42045-018
$9.23
43092
CYLINDER,REAR WHEEL
43092-1053
$90.98
49016
COVER-SEAL
49016-1151
$6.23
92015
NUT,6MM
92015-1729
$2.78
92022
WASHER,SPRING,6MM
92022-1951
$2.78
92041
COTTER,4.0X35
92041-1053
$3.92
92043
PIN,TENSION
92043-1398
$4.86
92045
BEARING-BALL,6205DDU
92045-1229
$33.40
92066
PLUG
92066-1309
$5.78
92081
SPRING,SHOE CLAMP
92081-1904
$8.03
92093
SEAL,REAR BRAKE LEVER
92093-1259
$16.27
92143
COLLAR,25.1X32X23.3
92143-1108
$20.60
92143A
COLLAR,25.2X38X29.5
92143-1650
$32.69
92144
SPRING,BRAKE
92144-1299
$8.30
92144A
SPRING,BRAKE
92144-1300
$8.30
92144B
SPRING,BRAKE
92144-1301
$8.30
92144C
SPRING,ROD,LH
92144-1302
$8.30
92144D
SPRING,ROD,RH
92144-1303
$7.60
92150
BOLT
92150-1366
$8.05
92200
WASHER,18.5X52X4.5
92200-1139
$8.10
