Radiator

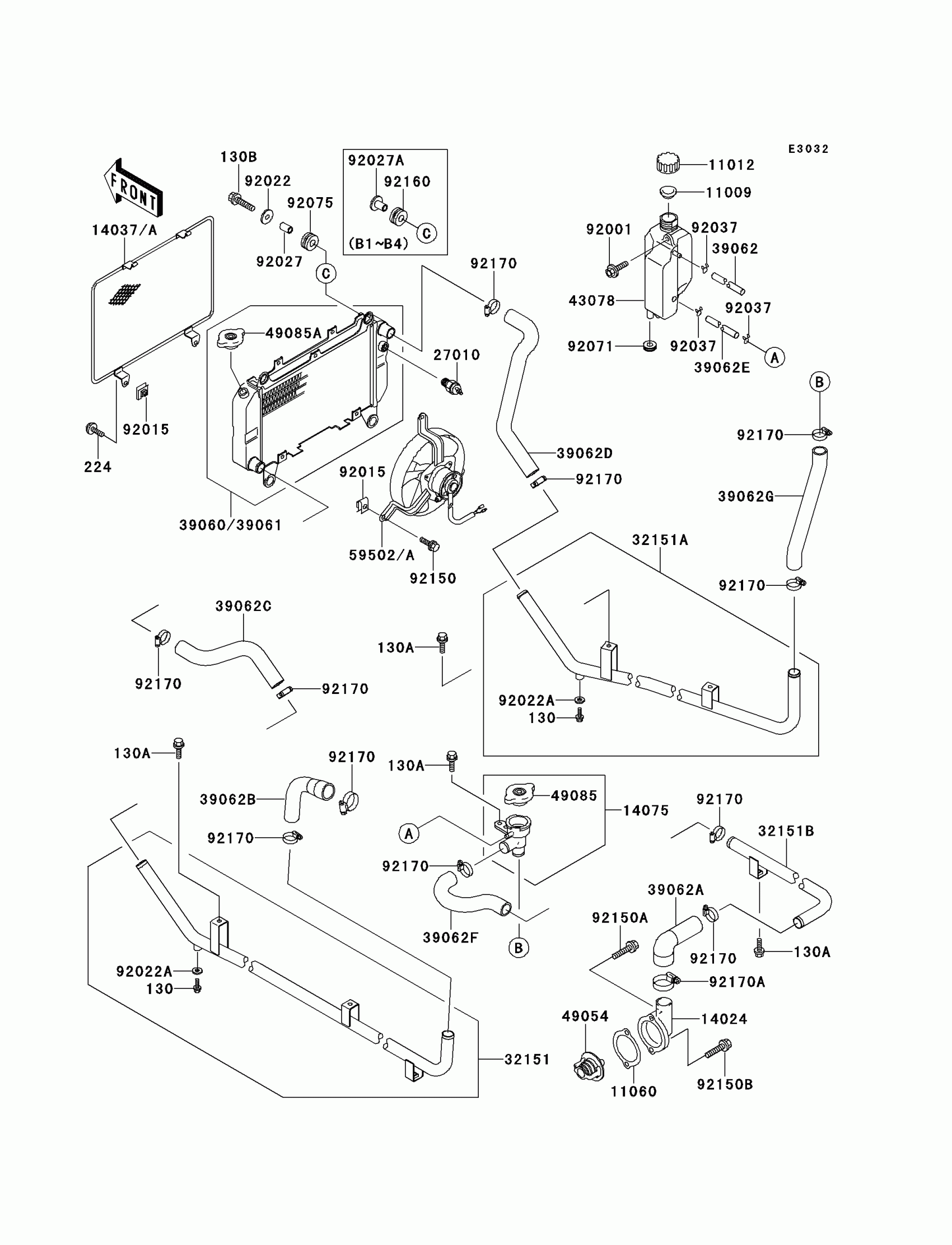

Kawasaki Mule 2520 Turf Radiator Diagram
#
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
11060
GASKET,THERMOSTAT COVER
11060-2084
$2.83
14024
COVER,THERMOSTAT
14024-2293
Unavailable
14037
SCREEN,RADIATOR
14037-1175
$84.38
14075
CAP-ASSY,RADIATOR
14075-1061
$148.83
27010
SWITCH,FAN
27010-1317
$130.42
32151
PIPE,COOLING,LH
32151-1313
Unavailable
32151A
PIPE,COOLING,RH
32151-1314
Unavailable
32151B
PIPE,RH
32151-1315
Unavailable
39060
RADIATOR
39060-1120
Unavailable
39062
HOSE-COOLING
39062-1125
$26.45
39062A
HOSE-COOLING,RH,OUTLET
39062-1521
$33.58
39062B
HOSE-COOLING,LH,INTAKE
39062-1589
$12.67
39062C
HOSE-COOLING,RADIATOR,LH
39062-1590
$15.99
39062D
HOSE-COOLING,RADIATOR,RH
39062-1591
$28.78
39062E
HOSE-COOLING,CAP-RESERVOIR
39062-1592
$7.46
39062F
HOSE-COOLING,UPP
39062-1593
$20.38
39062G
HOSE-COOLING,LWR
39062-1594
$16.26
43078
RESERVOIR
43078-1072
$67.78
49054
THERMOSTAT
49054-2056
$28.18
49085
CAP-ASSY-PRESSURE
49085-1066
$37.42
49085A
CAP-ASSY-PRESSURE
49085-1068
$53.51
59502
FAN-ASSY
59502-1106
$823.37
92001
BOLT,W/P,6X16
92001-1860
$4.31
92015
NUT
92015-1487
$4.80
92022A
WASHER,6.2X11X1
92022-304
$3.65
92027A
COLLAR,FUEL TANK FITT
92027-1134
$10.28
92037
CLAMP,TUBE
92037-147
$7.34
92071
GROMMET
92071-1115
$5.46
92150
BOLT,6X12
92150-1186
$3.37
92150A
BOLT,6X40
92150-2230
$1.52
92150B
BOLT,6X20
92150-2231
$1.94
92160
DAMPER
92160-1007
$5.52
130
BOLT-FLANGED
130J0610
$2.33
130A
BOLT-FLANGED,6X14,BLACK
130J0614
$2.33
130B
BOLT-FLANGED,8X25,BLACK
130J0825
$4.15
224
SCREW-PAN-WP-CROS,6X12
224C0612
$4.15
92170
CLAMP,HOSE,32MM
92170-1286
Unavailable
92170A
CLAMP
92170-1678
$8.20
