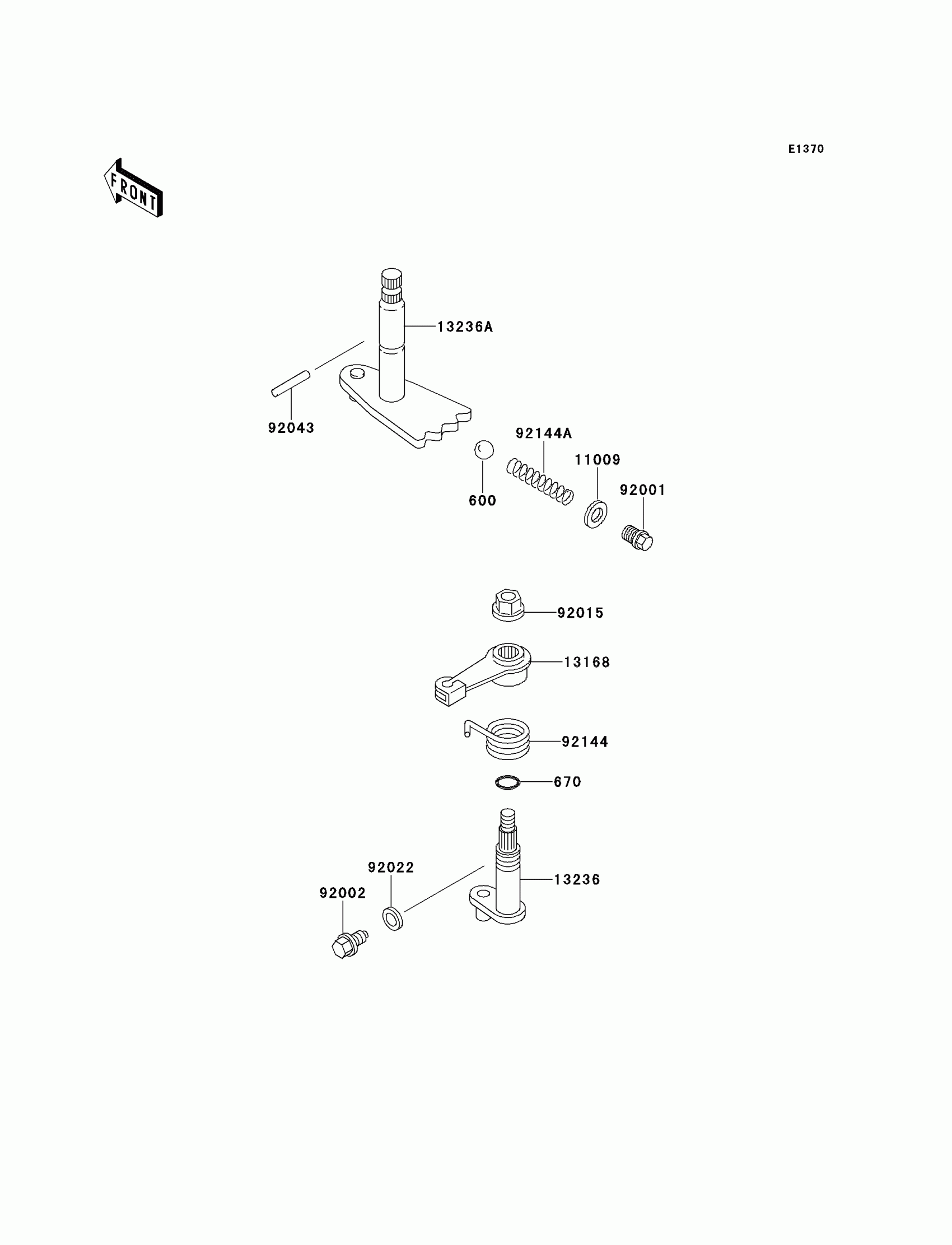

Kawasaki Mule 2520 Turf Gear Change Mechanism Diagram

Description

Price

600

BALL-STEEL,13/32"

600A1300

$0.94

670

O RING,10MM

670B2010

$1.50

11009

GASKET,15.5X22X1

11009-1008

$3.63

13168

LEVER,DIFF LOCK

13168-1523

$22.78

13236

LEVER-COMP,DIFF LOCK

13236-1219

$24.07

13236A

LEVER-COMP,CHANGE,FR/RR

13236-1248

$42.29

92001

BOLT,NEUTRAL POSITION

92001-1037

$13.37

92002

BOLT,FLANGED-SMALL,6X8.1X2.5

92002-1962

$4.12

92015

NUT,FLANGED,8MM

92015-1406

$4.45

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92043

92043-1415

$2.59

92144

SPRING,LOCK LEVER

92144-1198

Unavailable

92144A

SPRING,CHANGE LEVER,FR/RR

92144-1702

$8.72
