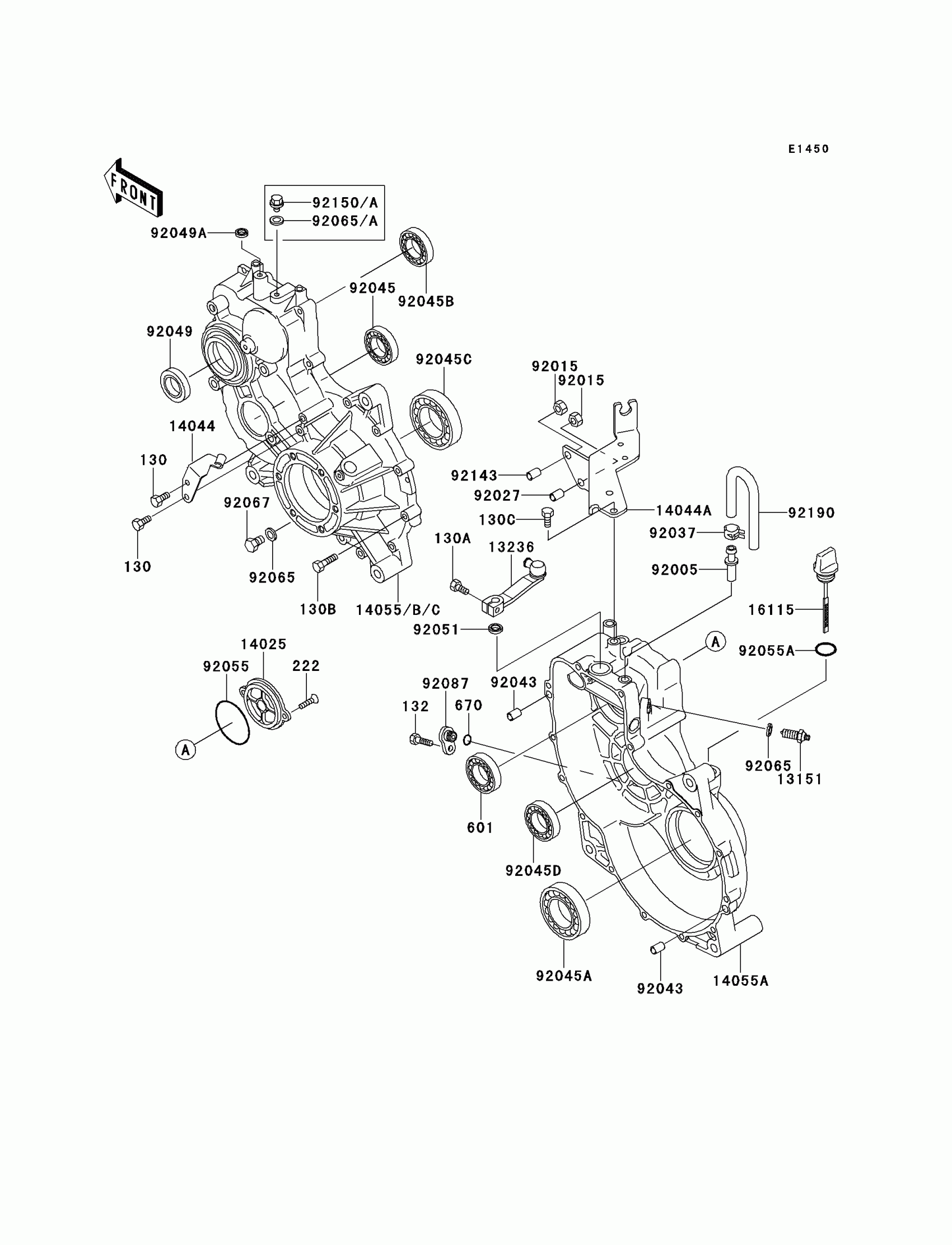

Kawasaki Mule 2520 Turf Gear Box Diagram

#

Description
Price

130

BOLT-FLANGED,6X14

130D0614

Unavailable

130A

BOLT-FLANGED

130H0620

Unavailable

130B

BOLT,FLANGED,6X35

130H0635

Unavailable

13151

SWITCH-COMP,NEUTRAL

13151-1069

$22.16

13236

LEVER-COMP,CHANGE

13236-1246

Unavailable

14025

COVER

14025-1813

$34.01

14044

HOLDER-CABLE

14044-1065

Unavailable

14044A

HOLDER-CABLE,FR/RR

14044-1074

$77.37

14055

CASE-GEAR,LH

14055-1109

$224.35

14055A

CASE-GEAR,RH

14055-1112

Unavailable

14055C

CASE-GEAR,LH

14055-1123

$287.35

16115

CAP-OIL FILLER

16115-1060

$11.66

92005

FITTING,BREATHER

92005-1127

$16.10

92015

NUT,8MM

92015-1432

$4.93

92027

COLLAR,8.8X12X9

92027-1568

$1.41

92037

CLAMP,TUBE

92037-1505

$3.63

92043

PIN,6.2X8X14

92043-1263

$0.46

92045

BEARING-BALL,TMB304CCM

92045-1142

$35.98

92045A

BEARING-BALL

92045-1162

$46.25

92045B

BEARING-BALL,62/28

92045-1207

$14.34

92045C

BEARING-BALL,6210CM

92045-1213

$49.04

92045D

BEARING-BALL,TMB205JR2

92045-1285

$22.38

92049

SEAL-OIL,TC28X47X7

92049-1297

$11.31

92049A

SEAL-OIL,VC-6X10X2.5

92049-2097

$1.52

92051

SEAL-OIL,TB13225.5

92051-005

$5.91

92055

RING-O,55MM

92055-1120

$4.18

92055A

RING-O,20X3

92055-2185

$0.84

92065

GASKET,10.5X16X1

92065-058

$3.03

92065A

GASKET,10.5X16X1

92065-058

$3.03

92067

PLUG,DRAIN,10X12

92067-001

$3.36

92087

BUSHING-METER GEAR

92087-1058

$7.88

92143

COLLAR,8.5X15X9

92143-1642

$4.66

92150A

BOLT,FLANGED,10X10

92150-1900

$7.41

92190

TUBE

92190-3807

$5.27

130C

BOLT-FLANGED,8X20

130H0820

Unavailable

132

BOLT-FLANGED-SMALL

132J0614

Unavailable

222

SCREW-CSK-RD-CROS

222B0614

Unavailable

601

BEARING-BALL,#6007C3

601B6007

$24.07

670

O RING,10MM

670D1510

$3.57
