2007 Kawasaki Mule 2520 Turf Drive Shaft Diagram

← All diagrams

Find the part on the Drive Shaft diagram for your 2007 Kawasaki Mule 2520 Turf, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

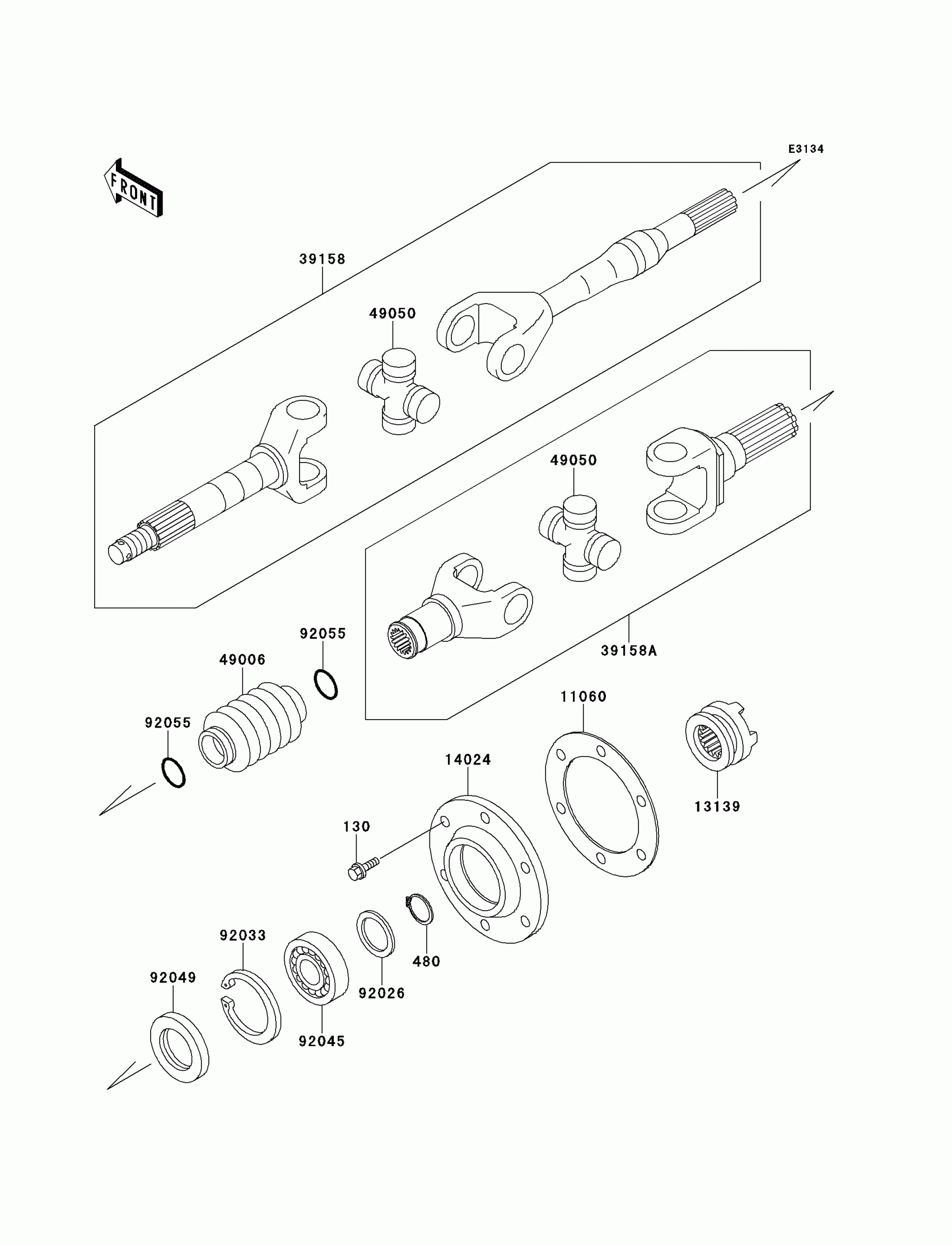

2007 Kawasaki Mule 2520 Turf Drive Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X25

130H0825

1
Out of stock

480

1

$3.73

In stock

11060

1

$10.14

In stock

13139

SHIFTER

13139-1078

1
Out of stock

14024

COVER,DRIVESHAFT

14024-1560

1
Out of stock

39158

SHAFT-ASSY-DRIVE,OUTSIDE

39158-1096

1
Out of stock

39158A

1

$527.31

In stock

49006

BOOT,DRIVE SHAFT

49006-1257

1

$40.06

In stock

49050

SPIDER

49050-1060

1
Out of stock

92026

SPACER,28.1X38X2.6

92026-1489

1

$3.70

In stock

92033

RING-SNAP,55MM

92033-1274

1

$7.48

In stock

92045

BEARING-BALL,6006

92045-1208

1

$20.53

In stock

92049

SEAL-OIL,TC35X55X8

92049-1298

1
Out of stock

92055

RING-O,19.5X3.0

92055-1451

1

$3.72

In stock
← Drive Converter Driven Converter →
