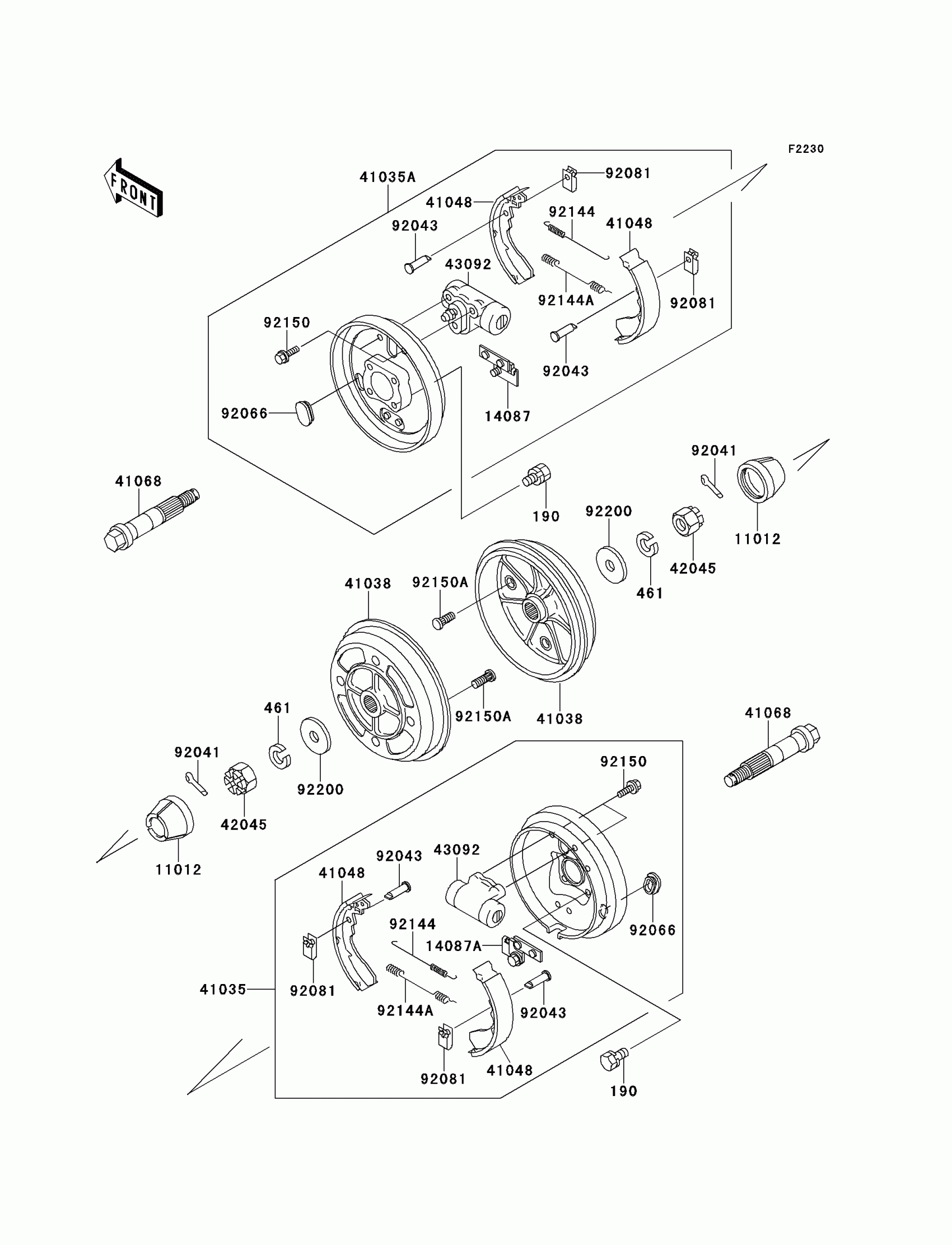

Kawasaki Mule 2520 Turf Front Hubs/Brakes Diagram

Description

Price

190

BOLT-UPSET-WS,10X16

190H1016

$4.15

461

WASHER-SPRING,18MM

461F1800

$2.72

11012

CAP,WHEEL

11012-1969

$5.65

14087

RETAINER-ASSY,RH

14087-1001

$24.46

14087A

RETAINER-ASSY,LH

14087-1002

$24.46

41035

PANEL-ASSY-BRAKE,FR,LH

41035-1308

$430.06

41035A

PANEL-ASSY-BRAKE,FR,RH

41035-1309

$430.06

41038

DRUM,FRONT BRAKE

41038-1219

$368.01

41048

SHOE-BRAKE

41048-1077

$29.31

41068

AXLE,FR

41068-1296

$145.34

42045

NUT,CASTLE,18MM

42045-018

$9.23

43092

CYLINDER,FRONT BRAKE PANEL

43092-1054

$153.34

92041

COTTER,4.0X35

92041-1053

$3.92

92043

PIN,TENSION

92043-1398

$4.86

92066

PLUG

92066-1309

$5.78

92081

SPRING,SHOE CLAMP

92081-1904

$8.03

92144

SPRING,BRAKE

92144-1300

$8.30

92144A

SPRING,BRAKE

92144-1301

$8.30

92150

BOLT,FLANGED,6X12

92150-1166

$4.39

92150A

BOLT

92150-1366

$8.05

92200

WASHER,18.5X52X4.5

92200-1139

$8.10
