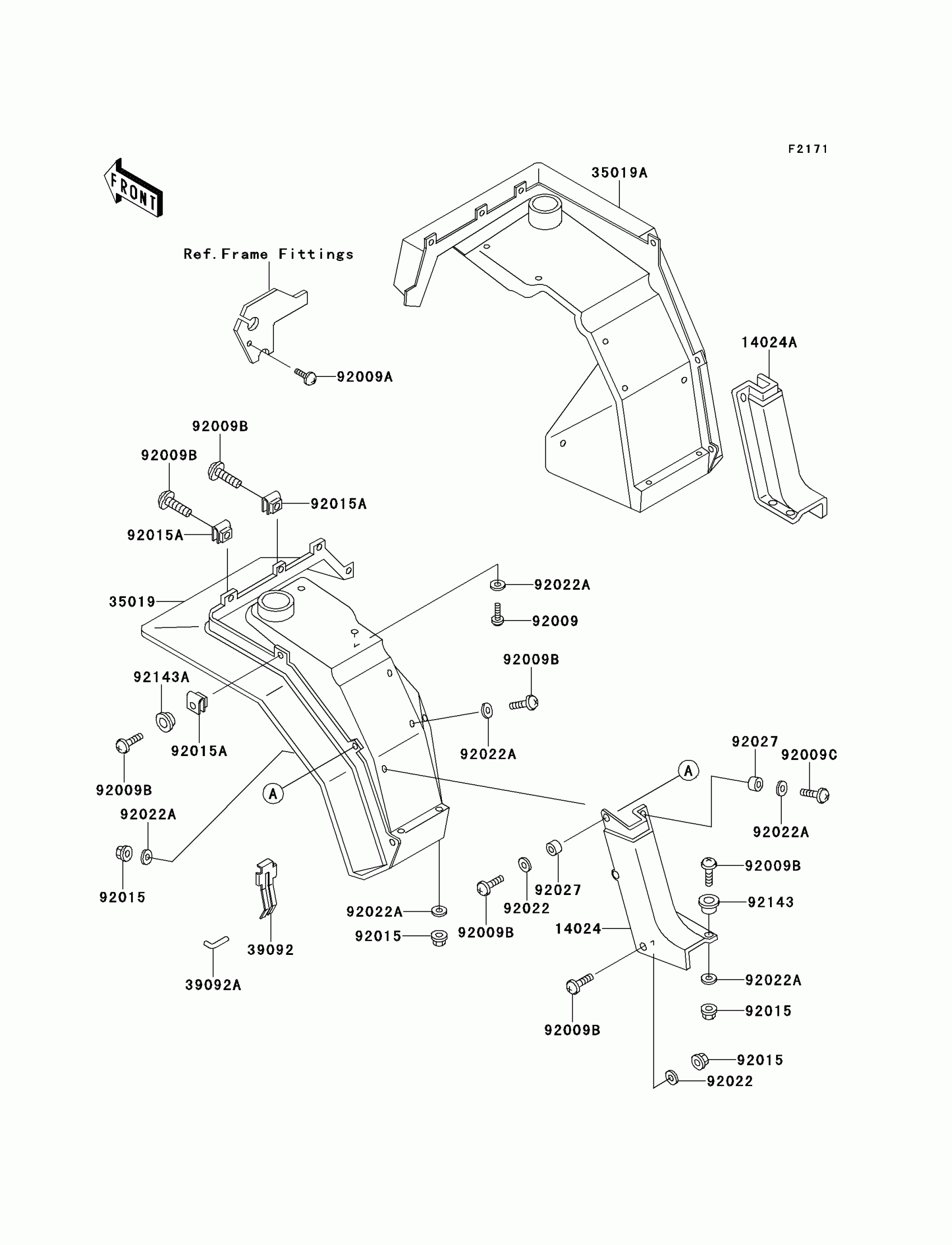

Kawasaki Mule 2520 Turf Front Fender(s) Diagram

Description

Price

14024

COVER,LH

14024-1793

Unavailable

14024A

COVER,RH

14024-1794

Unavailable

35019

FLAP,FR,LH

35019-1246

$82.49

35019A

FLAP,FR,RH

35019-1247

$82.49

39092

PIN-HAIR

39092-1055

$4.77

39092A

PIN-HAIR

39092-1056

$4.77

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X18,BLACK

92009-1181

$2.80

92009B

SCREW,6X22,BLACK

92009-1256

$2.78

92009C

SCREW,6X25

92009-1465

$3.92

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92015A

NUT,CLAMP,6MM

92015-1678

$5.52

92022

WASHER,7X16X1.2

92022-1344

$3.92

92022A

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92027

COLLAR

92027-165

$5.96

92143

COLLAR

92143-1057

$5.00

92143A

COLLAR

92143-1087

$4.31
