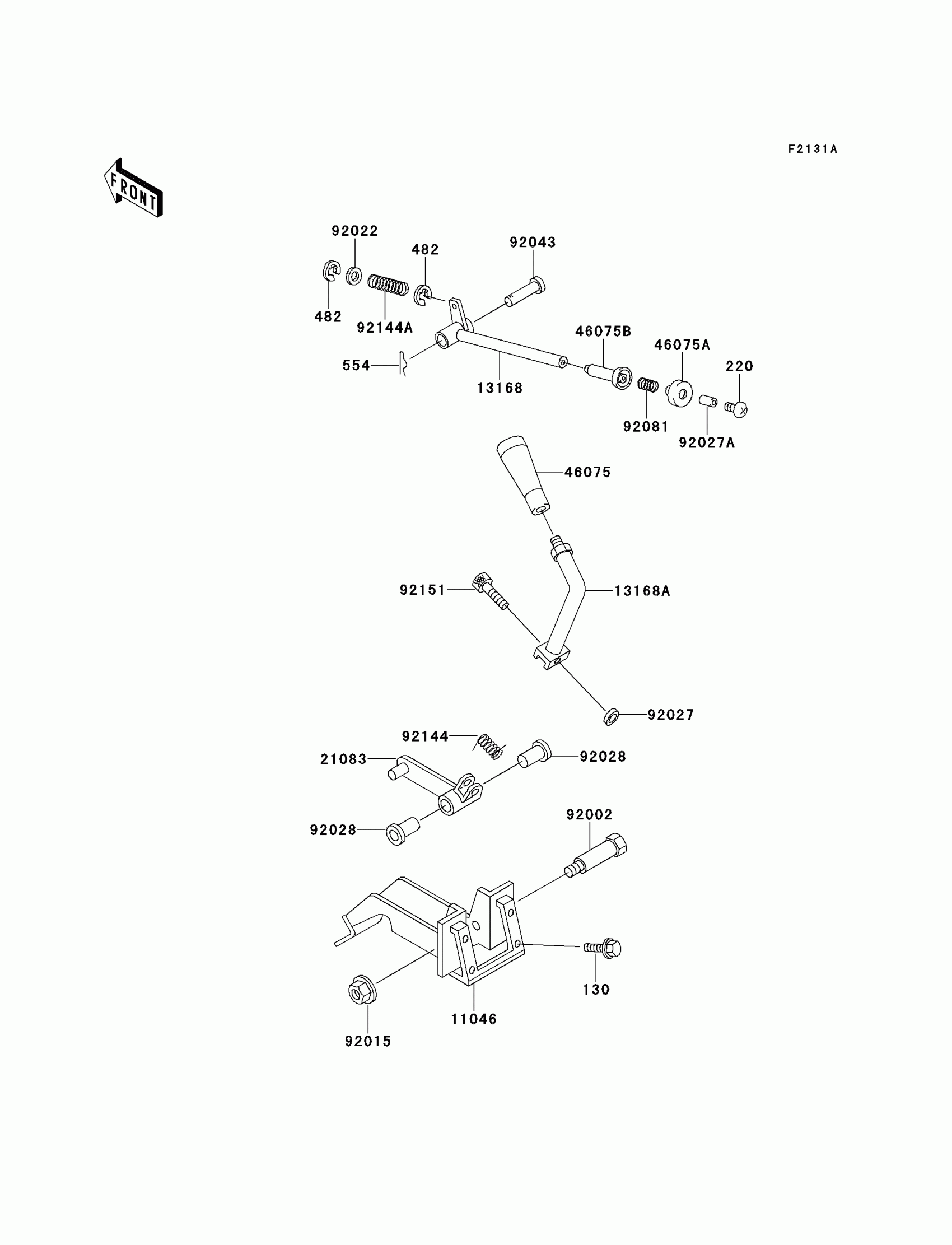

Kawasaki Mule 2520 Turf Frame Fittings(Lever) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130C0612

Unavailable

220

SCREW-PAN-CROS

220C0514

$1.33

482

CIRCLIP-TYPE-E,8MM

482L8000

Unavailable

554

PIN-SNAP,10MM

554A1000

$0.73

11046

BRACKET,SHIFT LEVER

11046-1677

$48.13

13168

LEVER,DIFF MODE CONTROL

13168-1428

$29.38

13168A

LEVER,SHIFT

13168-1440

$47.55

21083

ARM,SHIFT LEVER

21083-1085

Unavailable

46075

GRIP,SHIFT LEVER

46075-1075

Unavailable

46075A

GRIP,UPP

46075-1085

$7.13

46075B

GRIP,LWR

46075-1086

$9.84

92002

BOLT

92002-1984

$9.12

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,10.5X26X2.3

92022-044

$2.99

92027

COLLAR,6.3X10X4.8

92027-1066

$3.97

92027A

COLLAR

92027-1987

$1.76

92028

BUSHING

92028-1507

$3.99

92043

PIN,FOOTRST STEP FIT

92043-1069

$5.42

92081

SPRING

92081-1714

$3.25

92144

SPRING

92144-1175

Unavailable

92144A

SPRING

92144-1510

$4.81

92151

BOLT,SOCKET,6X40

92151-1128

$8.19
