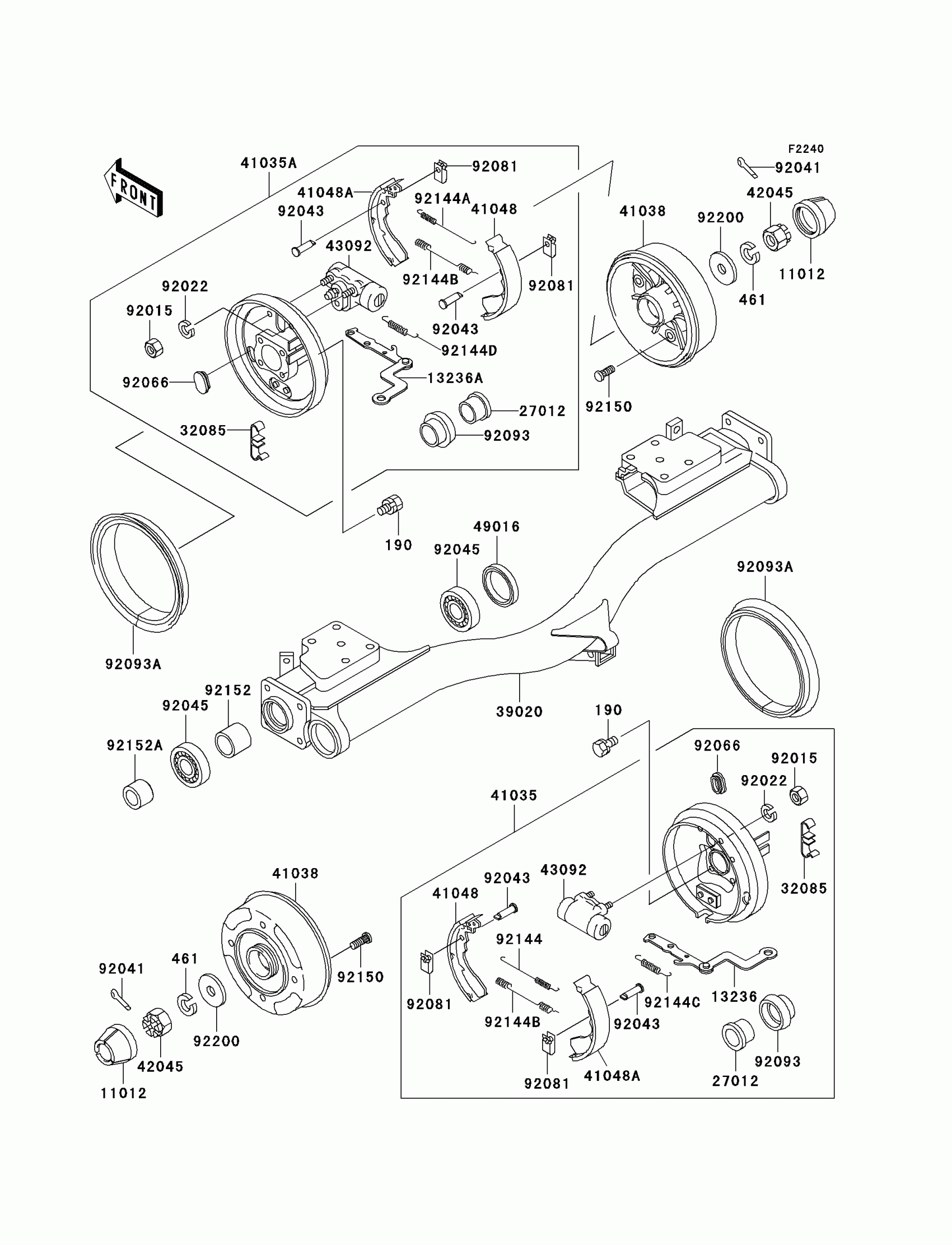

Kawasaki Mule 2510 Diesel Rear Hubs/Brakes(KAF950-A1/A2) Diagram

#

Description
Price

190

BOLT-UPSET-WS,10X16

190H1016

Unavailable

461

WASHER-SPRING,18MM

461F1800

Unavailable

11012

CAP,WHEEL

11012-1969

$4.27

13236

LEVER-COMP,REAR BRAKE PANEL,LH

13236-1180

$40.14

13236A

LEVER-COMP,REAR BRAKE PANEL,RH

13236-1181

$40.14

27012

HOOK,REAR BRAKE LEVER

27012-1396

$20.22

32085

STOPPER,REAR BRAKE LEVER

32085-1298

$10.63

39020

BRACKET-COMP-REAR SUSP

39020-1055

$805.73

41035

PANEL-ASSY-BRAKE,RR,LH

41035-1306

Unavailable

41035A

PANEL-ASSY-BRAKE,RR,RH

41035-1307

$439.14

41038

DRUM,REAR BRAKE

41038-1226

$336.97

41048

SHOE-BRAKE

41048-1078

$25.93

41048A

SHOE-BRAKE

41048-1079

$25.93

42045

NUT,CASTLE,18MM

42045-018

$7.01

43092

CYLINDER,REAR WHEEL

43092-1053

$80.67

49016

COVER-SEAL

49016-1151

$4.69

92015

NUT,6MM

92015-1729

$1.96

92022

WASHER,SPRING,6MM

92022-1951

$1.96

92041

COTTER,4.0X35

92041-1053

$2.99

92043

PIN,TENSION

92043-1398

$3.71

92045

BEARING-BALL,6205DDU

92045-1229

$29.93

92066

PLUG

92066-1309

$4.37

92081

SPRING,SHOE CLAMP

92081-1904

$6.13

92093

SEAL,REAR BRAKE LEVER

92093-1259

$15.37

92093A

SEAL

92093-1357

$20.16

92144

SPRING,BRAKE

92144-1299

$6.33

92144A

SPRING,BRAKE

92144-1300

$6.33

92144B

SPRING,BRAKE

92144-1301

$6.33

92144C

SPRING,ROD,LH

92144-1302

$6.33

92144D

SPRING,ROD,RH

92144-1303

$5.80

92150

BOLT

92150-1366

$6.15

92152

COLLAR,25.1X32X23.3

92152-1238

$16.68

92152A

COLLAR

92152-1239

$29.33

92200

WASHER,18.5X52X4.5

92200-1474

$6.18
