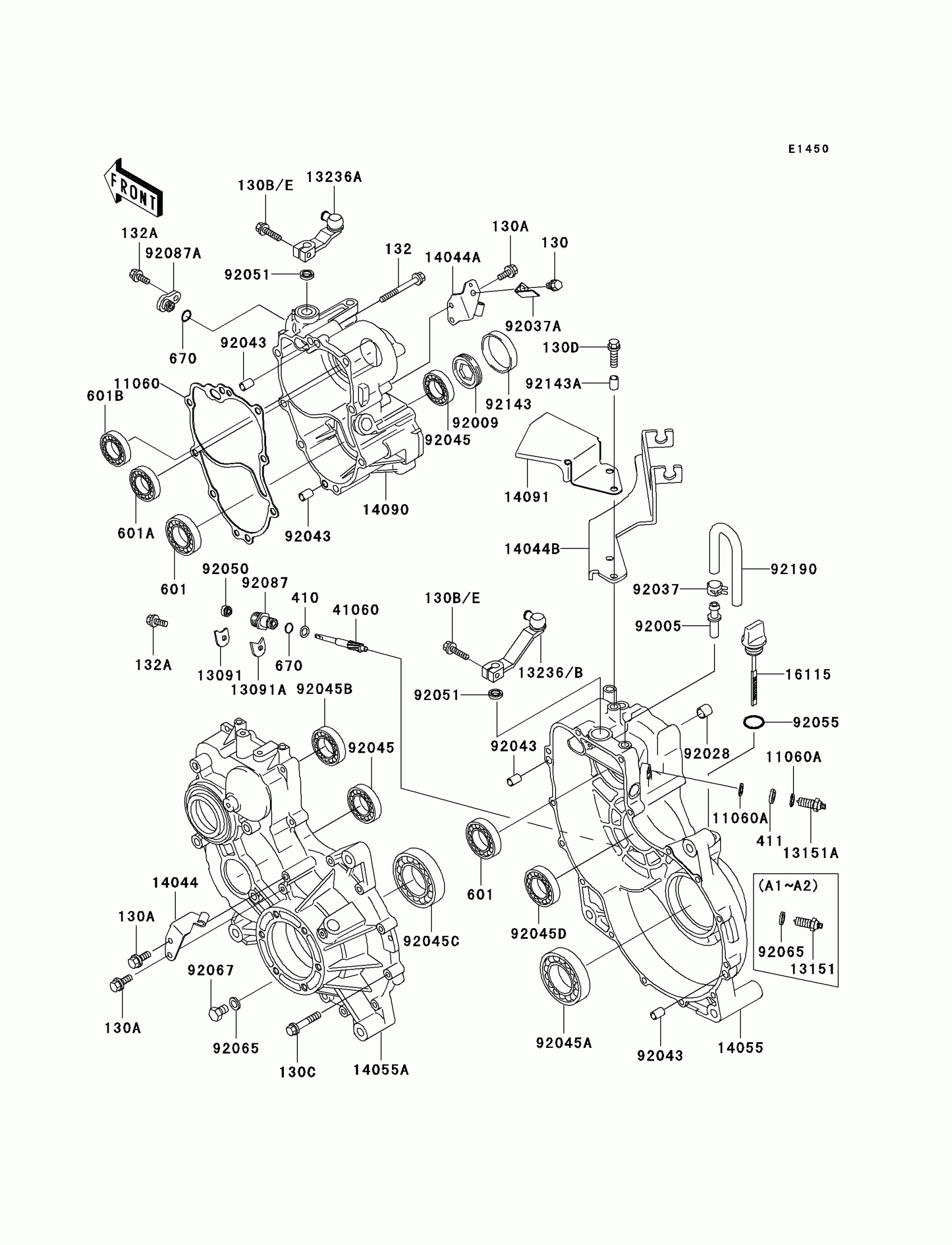

Kawasaki Mule 2510 Diesel Gear Box Diagram

#

Description
Price

130

BOLT-FLANGED

130D0610

Unavailable

11060

GASKET,GEAR CASE COVER

11060-1310

$12.89

13091

HOLDER,TACHOMETER2.3T

13091-1008

$3.81

13091A

HOLDER,TACHOMETR,3.2T

13091-1009

$3.25

13151

SWITCH-COMP,NEUTRAL

13151-1069

$22.16

13236

LEVER-COMP,CHANGE

13236-1349

$54.88

13236A

LEVER-COMP

13236-1363

$51.47

14044

HOLDER-CABLE

14044-1065

Unavailable

14044A

HOLDER-CABLE

14044-1076

$14.24

14044B

HOLDER-CABLE

14044-1097

$111.87

14055

CASE-GEAR,RH

14055-1110

Unavailable

14055A

CASE-GEAR,LH

14055-1144

$272.83

14090

COVER,GEAR CASE,HI/LOW

14090-1238

$242.41

14091

COVER

14091-1213

$34.94

16115

CAP-OIL FILLER

16115-1060

$11.66

41060

GEAR-METER SCREW

41060-1148

$60.75

92005

FITTING,BREATHER

92005-1127

$16.10

92009

SCREW

92009-1290

$25.61

92028

BUSHING,23X30X13

92028-132

$38.79

92037

CLAMP,TUBE

92037-1505

$3.63

92037A

CLAMP

92037-1680

$1.85

92043

PIN,6.2X8X14

92043-1263

$0.46

92045

BEARING-BALL,TMB304CCM

92045-1142

$35.98

92045A

BEARING-BALL

92045-1162

$46.25

92045B

BEARING-BALL,62/28

92045-1207

$14.34

92045C

BEARING-BALL,6210CM

92045-1213

$49.04

92045D

BEARING-BALL,TMB205JR2

92045-1285

$22.38

92050

SEAL-OIL

92050-075

$8.66

92051

SEAL-OIL,TB13225.5

92051-005

$5.91

92055

RING-O

92055-2064

$0.84

92065

GASKET,10.5X16X1

92065-058

$3.03

92067

PLUG,DRAIN,10X12

92067-001

$3.36

92087

GUIDE,TACHOMETER GEAR

92087-010

$22.76

92087A

BUSHING-METER GEAR

92087-1058

$7.88

92143

COLLAR,66X70X11

92143-1120

$17.66

92143A

COLLAR,9.5X12.7X14

92143-1752

$2.27

92190

TUBE

92190-3807

$5.27

130A

BOLT-FLANGED,6X14

130D0614

Unavailable

130B

BOLT-FLANGED

130H0620

Unavailable

130C

BOLT,FLANGED,6X35

130H0635

Unavailable

130D

BOLT-FLANGED,8X30

130H0830

Unavailable

132

BOLT-FLANGED-SMALL,8X60

132H0860

Unavailable

132A

BOLT-FLANGED-SMALL

132J0614

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

601

BEARING-BALL,#6007C3

601B6007

$24.07

601A

BEARING-BALL,#6303C3

601B6303

$6.32

601B

BEARING-BALL

601B6303U

$21.35

670

O RING,10MM

670D1510

$3.57
