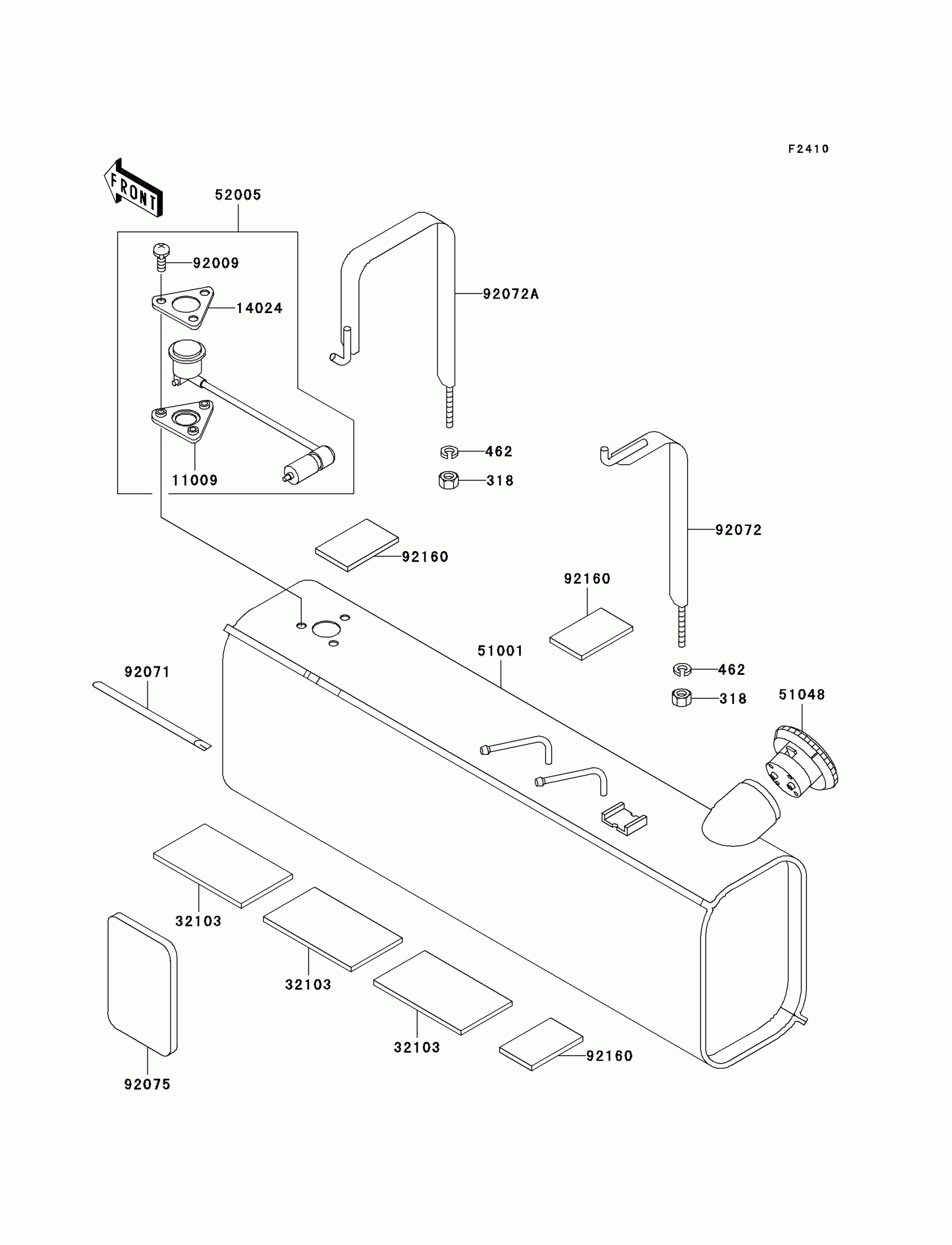

Kawasaki Mule 2510 Diesel Fuel Tank Diagram

Description

Price

318

NUT-HEX-SMALL

318C0800

$0.69

462

WASHER-SPRING,8MM

462L0800

$2.91

11009

GASKET,FUEL GAUGE

11009-1755

Unavailable

14024

COVER,FUEL GAUGE

14024-1697

Unavailable

32103

DAMPER,BATTERY

32103-027

$11.91

51001

TANK-COMP-FUEL

51001-1563

$401.30

51048

CAP-ASSY-TANK,FUEL

51048-1103

$60.42

52005

GAUGE,FUEL

52005-1085

$46.13

92009

SCREW,6X14

92009-1541

$4.43

92071

GROMMET

92071-1198

$2.90

92072

BAND,FUEL TANK

92072-1248

$43.51

92072A

BAND,FUEL TANK

92072-1249

$14.42

92075

DAMPER

92075-3759

$34.48

92160

DAMPER

92160-1102

$1.38
