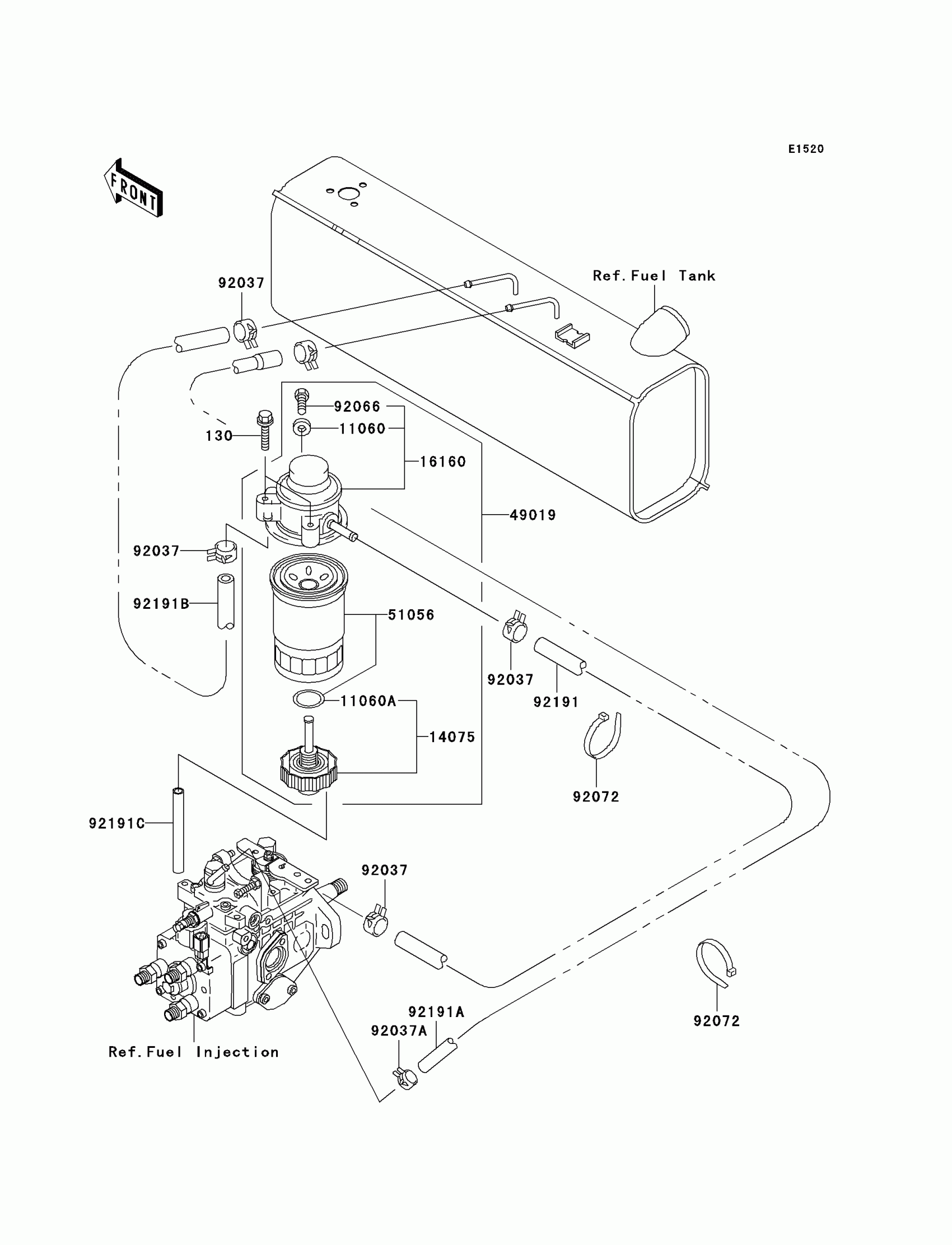

Kawasaki Mule 2510 Diesel Fuel Pump Diagram

Description

Price

130

BOLT-FLANGED,8X25,BLACK

130J0825

Unavailable

11060

GASKET,AIR VENT

11060-1978

$2.66

11060A

GASKET

11060-1979

$3.49

14075

CAP-ASSY,DRAIN

14075-1109

$83.56

16160

BODY,FUEL FILTER

16160-1328

$176.06

49019

FILTER-FUEL

49019-1094

$188.67

51056

ELEMENT-FUEL FILTER

51056-1051

$79.97

92037

CLAMP,HOSE CLIP

92037-1181

$2.31

92037A

CLAMP,TUBE

92037-1505

$3.63

92066

PLUG,AIR VENT

92066-1538

$2.00

92072

BAND,L=365

92072-1197

$7.71

92191

TUBE,INJECTION INLET

92191-1437

$57.26

92191A

TUBE,INJECTION OUTLET

92191-1438

$75.25

92191B

TUBE,FUEL TANK OUTLET

92191-1439

$38.26

92191C

TUBE,DRAIN,8X11X100

92191-1565

$2.56
