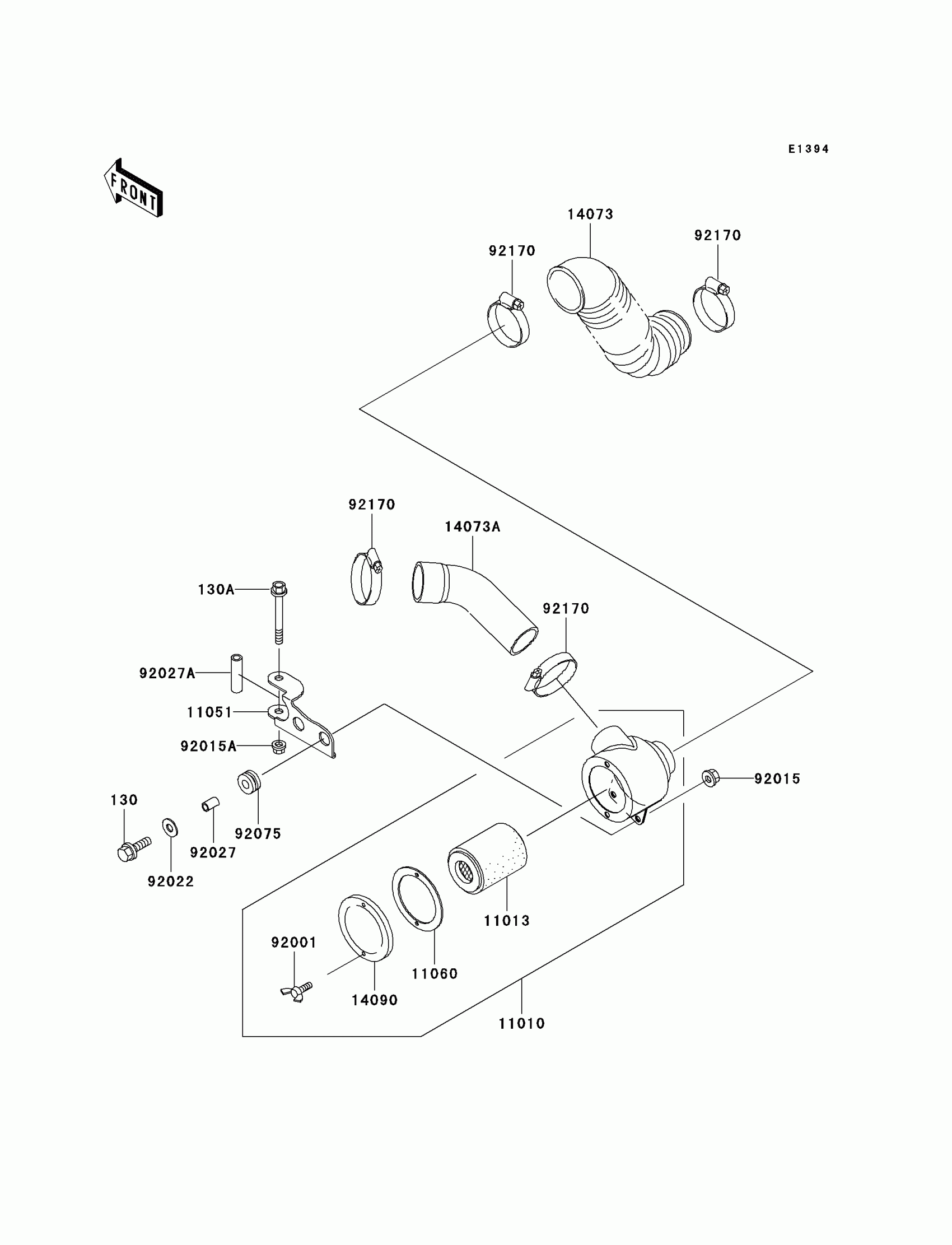

Kawasaki Mule 2510 Diesel Air Cleaner-Belt Converter Diagram

Description

Price

130

BOLT-FLANGED,8X30,BLA

130C0830

Unavailable

130A

BOLT-FLANGED,10X75

130J1075

Unavailable

11010

FILTER-ASSY-AIR

11010-1735

Unavailable

11013

ELEMENT-AIR FILTER

11013-1263

$16.70

11051

BRACKET

11051-1337

$8.81

11060

GASKET,AIR FILTER CASE

11060-1975

$8.04

14073

DUCT,BELT CONVERTER

14073-1492

$54.71

14073A

DUCT

14073-1756

$25.49

14090

COVER,AIR FILTER

14090-1766

$12.03

92001

BOLT,WING,6X15

92001-1703

$2.36

92015

NUT,8MM

92015-1432

$4.93

92015A

NUT,LOCK,10MM

92015-1522

$7.49

92022

WASHER,9X28X2.3

92022-1632

$3.92

92027

COLLAR

92027-1081

$9.29

92027A

COLLAR

92027-1738

$7.56

92075

DAMPER

92075-1736

$4.93

92170

CLAMP

92170-1338

$10.58
