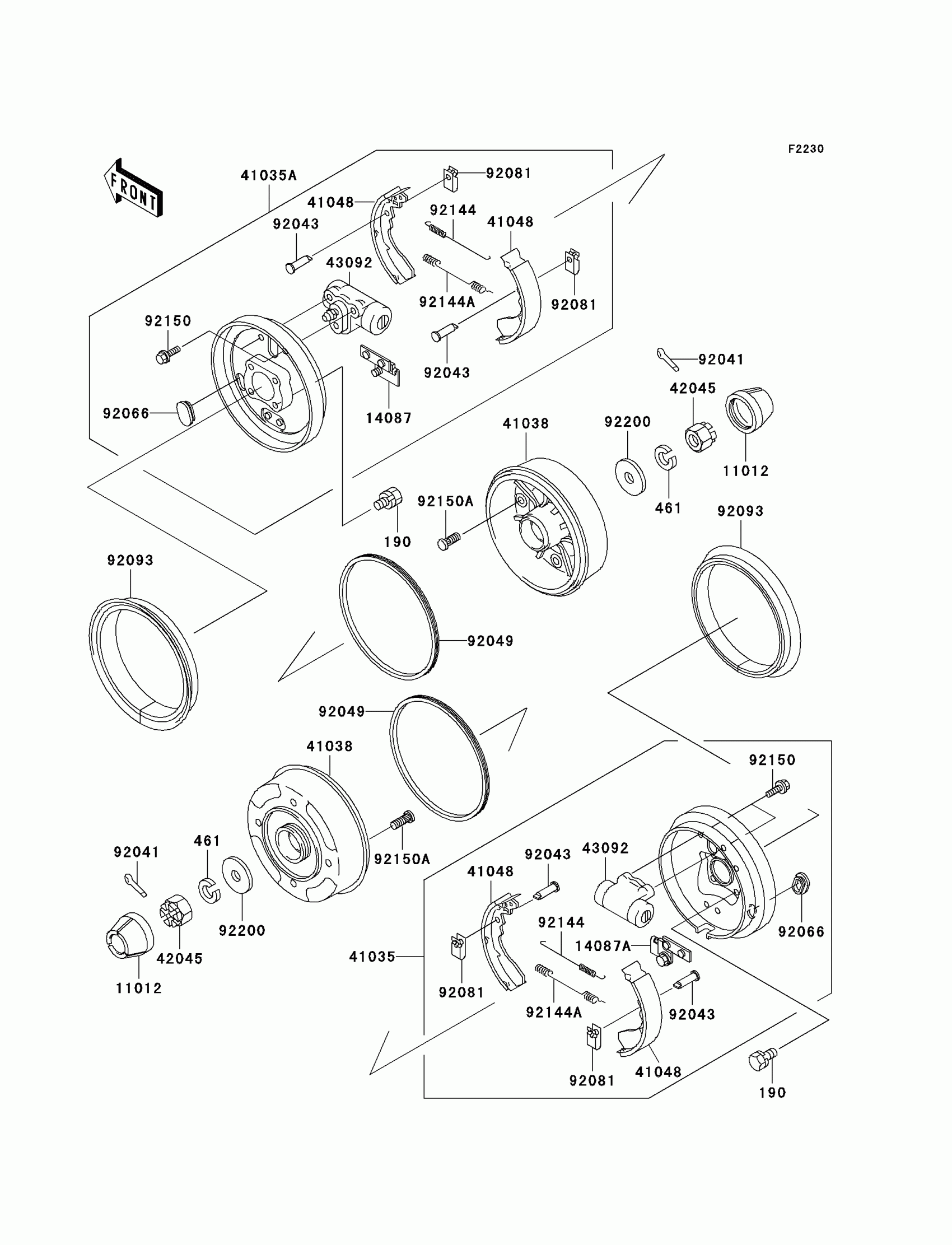

Kawasaki Mule 2510 Diesel Front Hubs/Brakes(KAF950-A1/A2) Diagram

Description

Price

190

BOLT-UPSET-WS,10X16

190H1016

Unavailable

461

WASHER-SPRING,18MM

461F1800

Unavailable

11012

CAP,WHEEL

11012-1969

$4.27

14087

RETAINER-ASSY,RH

14087-1001

$23.00

14087A

RETAINER-ASSY,LH

14087-1002

$23.00

41035

PANEL-ASSY-BRAKE,FR,LH

41035-1308

$439.14

41035A

PANEL-ASSY-BRAKE,FR,RH

41035-1309

$439.14

41038

DRUM,FRONT BRAKE

41038-1227

$336.97

41048

SHOE-BRAKE

41048-1077

$25.93

42045

NUT,CASTLE,18MM

42045-018

$7.01

43092

CYLINDER,FRONT BRAKE PANEL

43092-1054

$136.85

92041

COTTER,4.0X35

92041-1053

$2.99

92043

PIN,TENSION

92043-1398

$3.71

92049

SEAL-OIL,ODC-205 194 8-1NS

92049-1299

$119.49

92066

PLUG

92066-1309

$4.37

92081

SPRING,SHOE CLAMP

92081-1904

$6.13

92093

SEAL

92093-1357

$20.16

92144

SPRING,BRAKE

92144-1300

$6.33

92144A

SPRING,BRAKE

92144-1301

$6.33

92150

BOLT,FLANGED,6X12

92150-1166

$3.35

92150A

BOLT

92150-1366

$6.15

92200

WASHER,18.5X52X4.5

92200-1474

$6.18
